- 14 -
AC wire installation method:
1) Remove the 8 screws on the inverter junction box and remove the junction box cover in Pic 5.7.
After removing the junction box, you can see the terminals of the inverter. The default is 4
digits as shown in Pic 5.8.
2) Connect the cable through the junction box, waterproof jacket, and insert into the terminal
(The picture Pic 5.9 shows the connection mode of three phase lines connected to the junction
box, ground wire screwed on the inverter shell) , and use hexagon screwdriver to presses the
wiring harness to the connect terminal as shown in Pic 5.10.

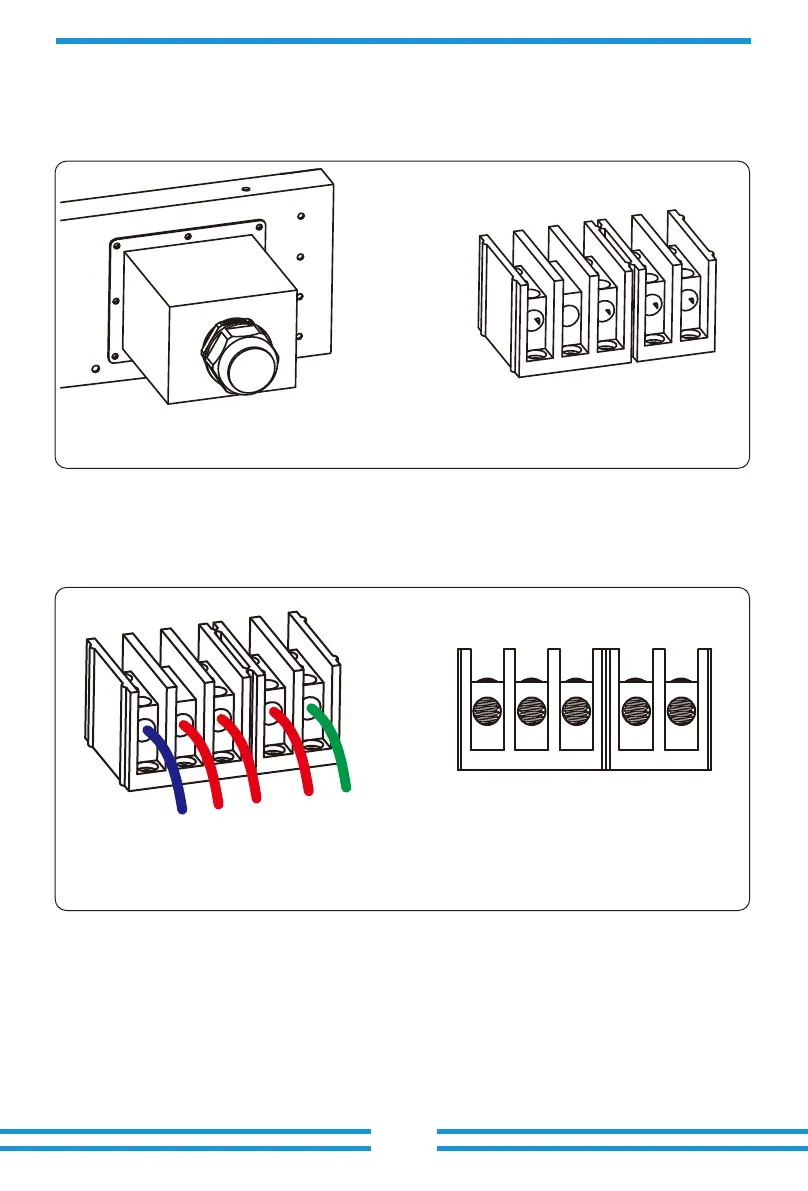

Pic 5.7 AC junction box Pic 5.8 AC terminal
Pic 5.9 AC cable connected t
o the terminal
Pic 5.10 Tightening the
AC connection cable
L1
L2
L3
N
PE
