BMS1 BMS2

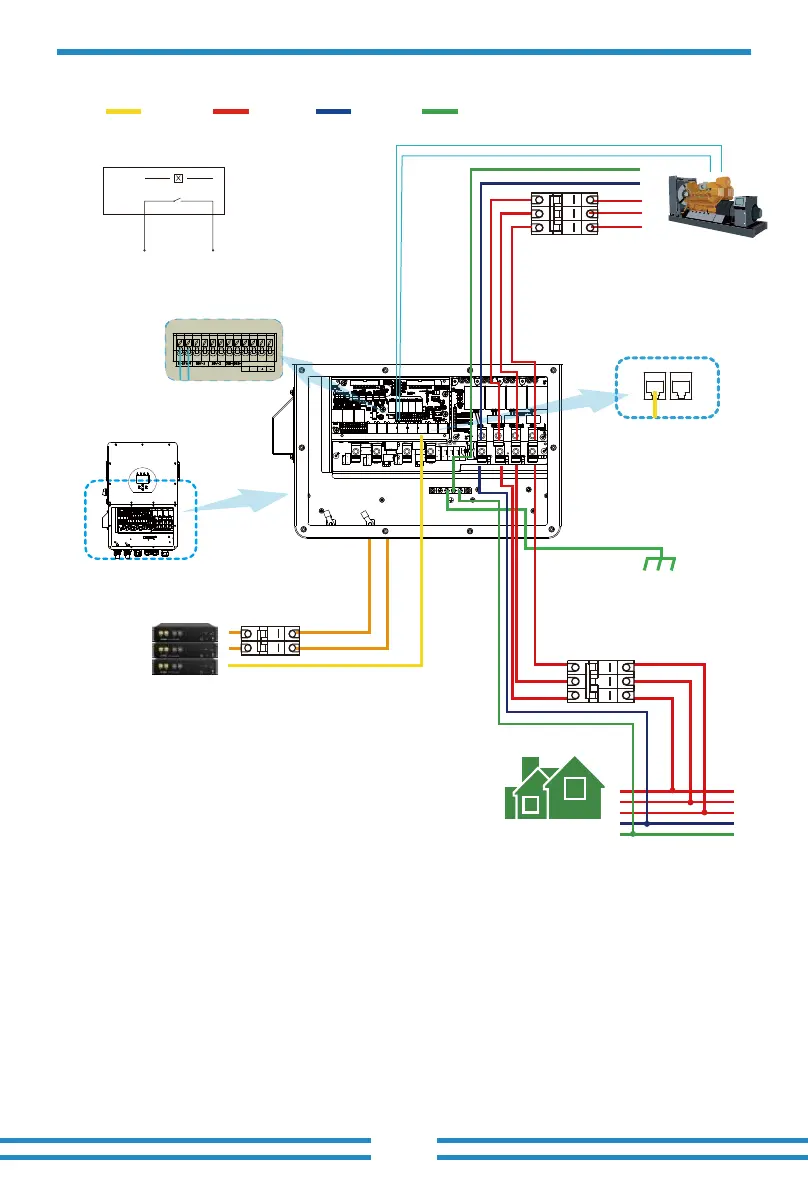

3.13 Typical application diagram of diesel generator
L wireCAN N wire PE wire
①DC
Breaker
Battery pack
Backup Load
L3
L2
L1
N
PE
Generator
GS (diesel generator startup signal)
relay
coil
open
contact
G S
G-start (1,2): dry contact signal for startup
the diesel generator.
Remotely control signal line
SUN-29.9K-SG02HP3-EU-AM3
: 100 DC breaker
SUN-25K-SG02HP3-EU-AM3
: 100A DC breaker
SUN-30K-SG02HP3-EU-AM3
: 100A DC breaker
① DC Breaker for battery
SUN-30K-SG02HP3-EU-AM3
: 100A AC breaker
SUN-29.9K-SG02HP3-EU-AM3
: 100A AC breaker
SUN-25K-SG02HP3-EU-AM3
: 100A AC breaker
② AC Breaker for backup load
SUN-29.9K-SG02HP3-EU-AM3
: 100A AC breaker
SUN-25K-SG02HP3-EU-AM3
: 100A AC breaker
SUN-30K-SG02HP3-EU-AM3
: 100A AC breaker
③ AC Breaker for Generator port
Inverter
③AC Breaker
②AC
Breaker
L3
L2
L1
N
PE
1 2 3 4 5 6 7 8 9 10 1112
SHUT DOWN
B B
Ground
