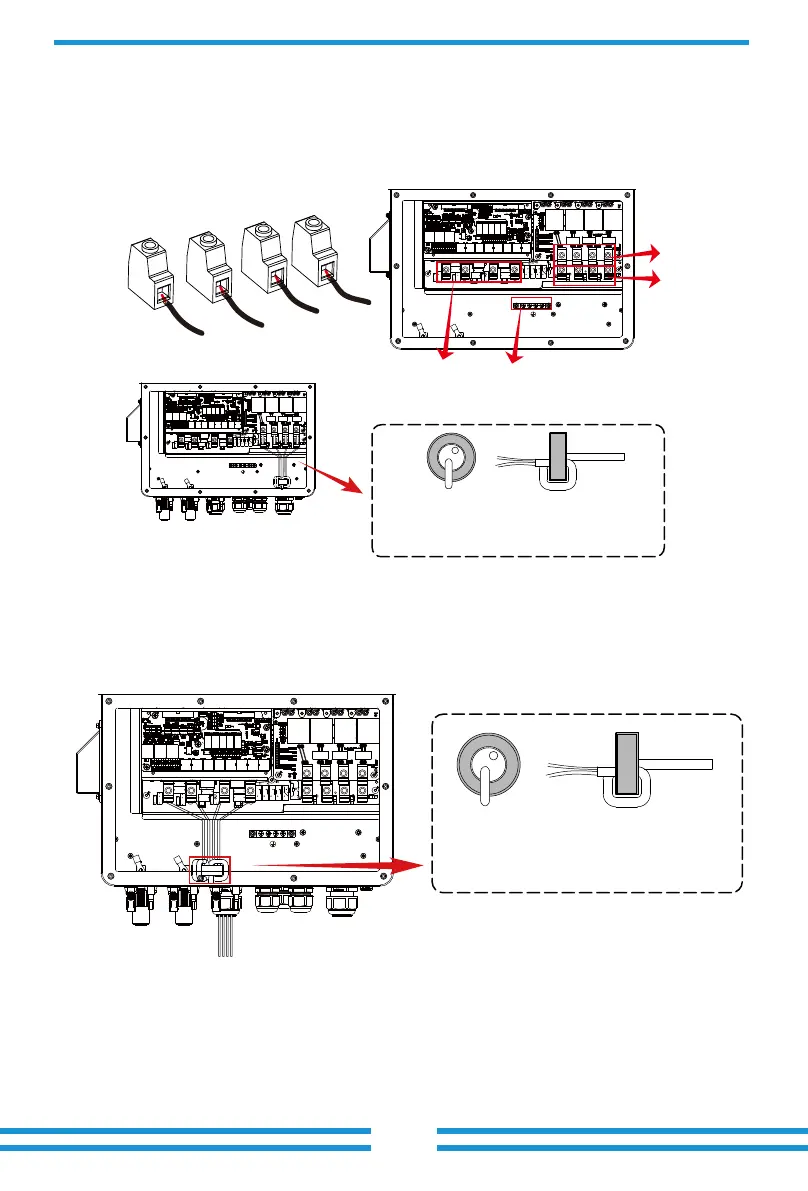

Please follow below steps to implement Grid, load and Gen port connection:
L3
L2
L1
N
GRID
LOAD
GEN
E-BAR
1. Before making Grid, load and Gen port connection, be sure to turn off AC breaker or
disconnector first.
2. Strip the insulation of AC wires by about 10mm, insert AC wires according to polarities indicated
on the terminal block and tighten the terminals. Be sure to connect corresponding N wires and PE
wires to related terminals as well.
Wrap the wire of Load port one lap around the magnetic ring
�, then thread the end of wires through the magnetic ring �
as the diagram above, peform this operation again on the
other three wires.The wires of the GEN port should also be
done in this way.
LOAD/GEN
4/5
GRID connection
6
Wrap the wire of GRID port one lap around the magnetic ring
6, then thread the end of wires through the magnetic ring 6
as the diagram above, peform this operation again on the
other three wires.
