Deye SUN-3.6K-SG05LP1-EU handleiding
Handleiding
Je bekijkt pagina 25 van 56
Load
L N PEL N PE
L N PE
Grid
Gen
L wireCAN N wire PE wire

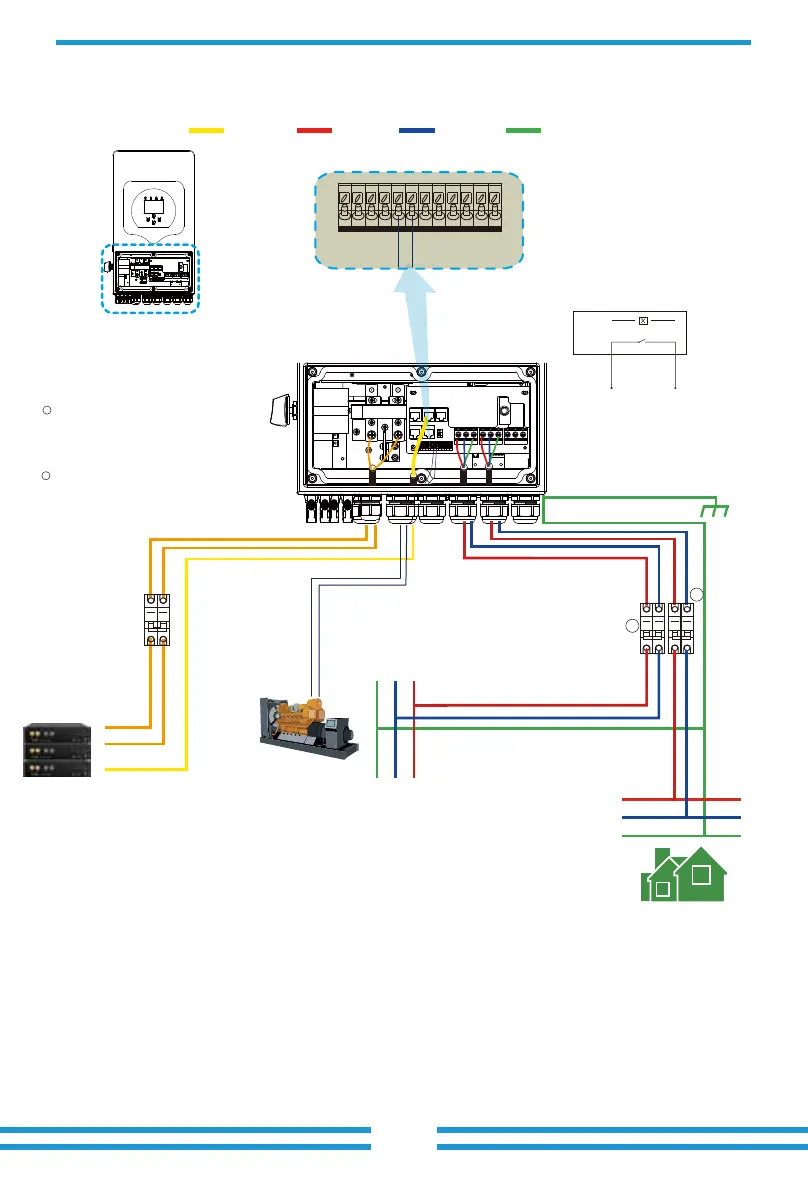

3.11 Typical applica�on diagram of diesel generator
Inverter
Battery pack
① DC
Breaker
Backup Load
L
N
PE
LNPE
Ground
Generator
2
3
Remotely control signal line
B HM G-V
G-S
T
ATS240V
GV/GS
(diesel generator startup signal)
relay
coil
open
contact
G V
/S
GV/GS: dry contact signal for startup the
diesel generator.
When the "GEN signal" is ac�ve, the open
contact (GV/GS) will switch on (no voltage output).
If the "Signal ISLAND MODE"is �cked, the GS
port will be the dry contact signal for startup
the diesel generator.If "Signal ISLAND MODE"
is not �cked, the GV port will be the dry contact
signal for startup the diesel generator.
- 23 -
Inverter
① DC Breaker for battery
SUN 3.6K-SG: 150A DC breaker
SUN 5K-SG: 150A DC breaker
SUN 6K-SG: 150A DC breaker
SUN 7K-SG: 225A DC breaker
SUN 7.6K-SG: 225A DC breaker
SUN 8K-SG: 225A DC breaker
AC Breaker for Gen port
2
SUN 3.6K-SG: 40A AC breaker
SUN 5K-SG: 40A AC breaker
SUN 6K-SG: 40A AC breaker
SUN 7K-SG: 50A AC breaker
SUN 7.6K-SG: 50A AC breaker
SUN 8K-SG: 50A AC breaker
3
AC Breaker for backup load port
SUN 3.6K-SG: 40A AC breaker
SUN 5K-SG: 40A AC breaker
SUN 6K-SG: 40A AC breaker
SUN 7K-SG: 50A AC breaker
SUN 7.6K-SG: 50A AC breaker
SUN 8K-SG: 50A AC breaker
