- 35 -

Temp:25.0C

5.3 Curve Page-Solar & Load & Grid

2022-5-28

20%

1 3 5 7 9 11 13 15 17 19 21 23

40%

60%

80%

100%

3000W

Solar Power Production:Day

5-2022

400

05 10 15 20 25 30

800

1200

1600

2000

2000Wh

System Solar Power:Month

CANCEL Day Month Year Total

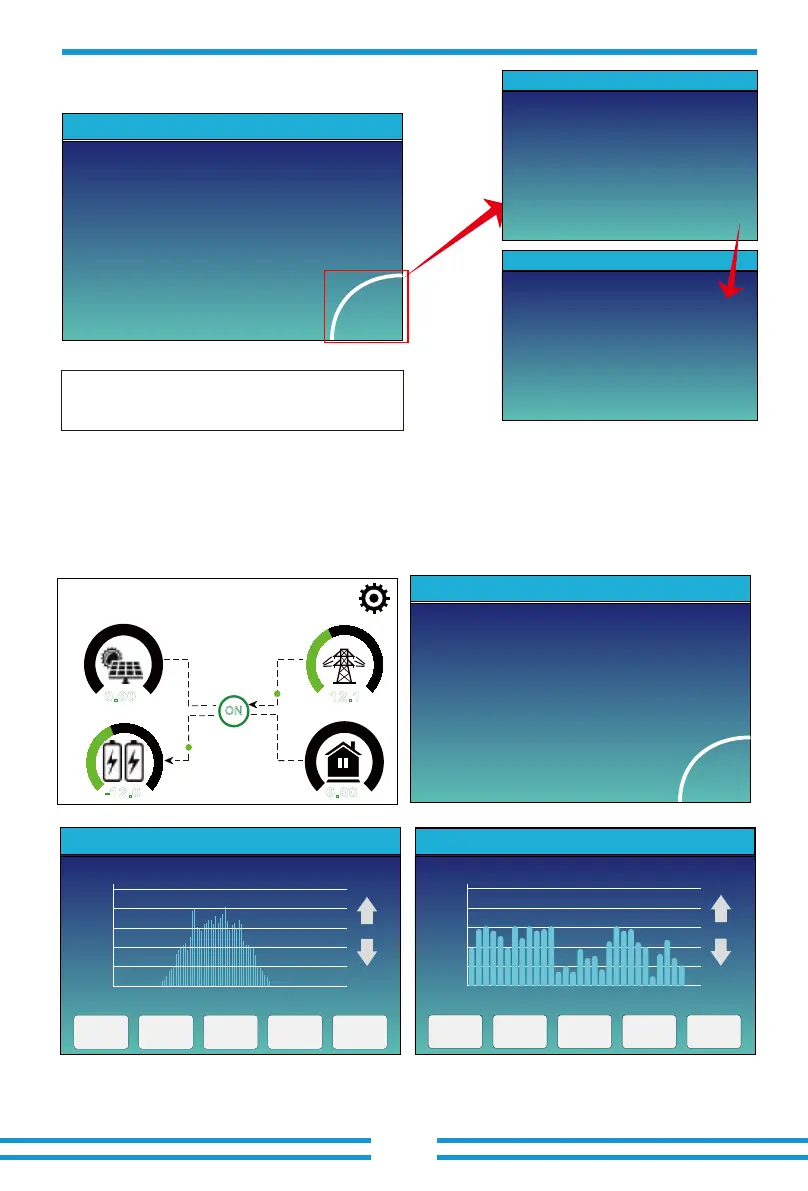

This is Battery detail page.

BATTERY DETAIL PAGE

Click the "Li-BMS" button on the lower right corner of

Battery detail page, you can enter the BMS page.

PV1-V: 0V PV1-I: 0.0A PV1-P: 0W

Power: 0W

Solar

Energy

Today=0.0 KWH

Total =0.00 KWH

In the main screen of LCD display, click the icons of "Solar", "Grid" and "Load", you can enter

the detail pages of Solar power, Grid power and Load consumption. Click the "Energy" button

on the lower right corner of these detail pages, you can enter the curve page. Using PV as an

example for illustration below.

01/19/2024 19:34:40

0.00

-12.0

12.1

0.00

0 30

Fri

0% 74%

Battery 1

Stand by

SOC: 46%

U:631.7V

I:-0.09A

Power: -50W

Temp:27.0C

Battery 2

Stand by

SOC: 0%

U:0.0V

I:0.00A

Power: 0W

Temp:-100.0C

Batt

Li-BMS

Press the “Down” button, you can enter the

LiBms2 detail page

Battery

Voltage: 629.5V

Battery

capacity :100AH

LiBms1: Deye-HV

Battery

Current: 0.0A

Battery

Charge Voltage :691.2V

Battery

Temp: 27.0C

Charge

current limit :100A

SOC :46% SOH :100% Discharge current limit :100A

Battery SW: 0×1004

Battery HW: 0×3001

Alarms: 0×8000 0×0000

Request Force Charge

Li-BMS

Battery

Voltage: 0.0V

Battery

capacity :0AH

LiBms2: Not matched

Battery

Current: 0.0A

Battery

Charge Voltage :0.0V

Battery

Temp:-100.0C

Charge

current limit :0A

SOC :0% Discharge current limit :0A

Alarms: 0×0000 0×0000

Li-BMS
