5.1 Main Screen

5. LCD Display Icons

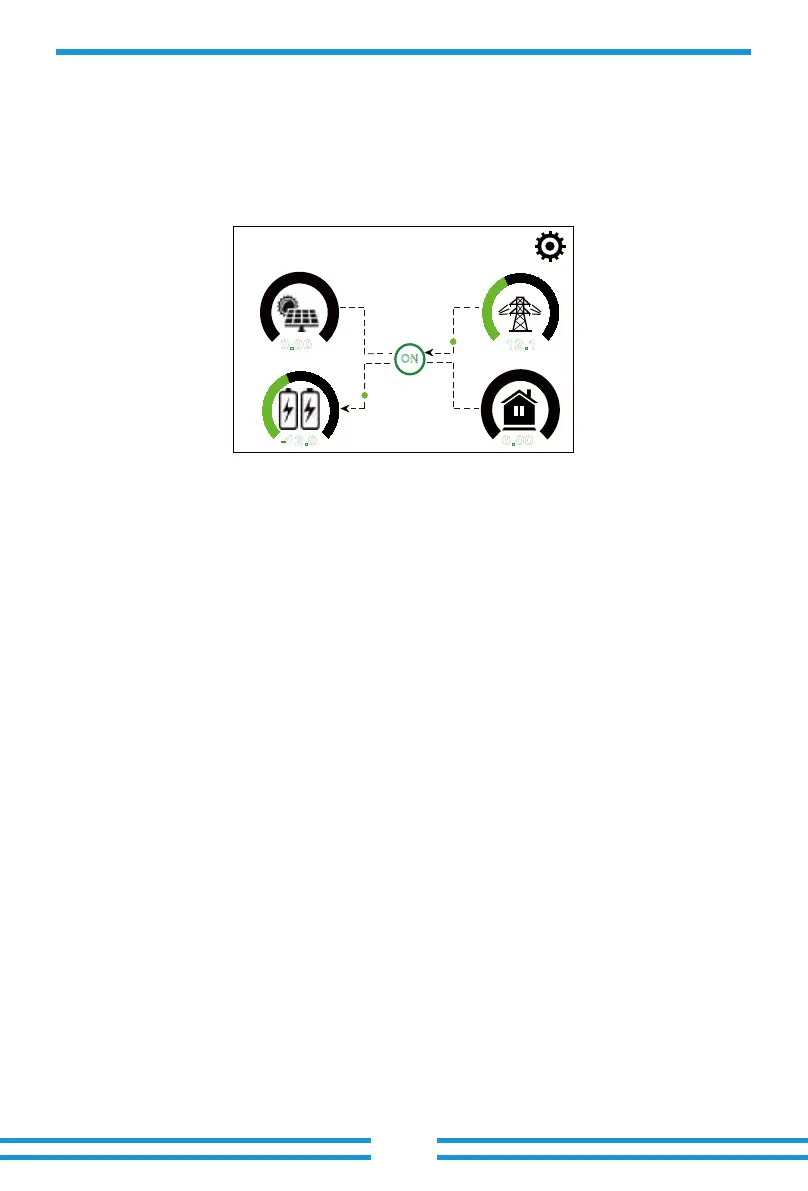

The LCD is touchscreen, below screen shows the overall information of the inverter.

01/19/2024 19:34:40

0.00

-12.0

12.1

0.00

0 30

Fri

- 32-

1.The icon at the center of the screen indicates whether the system is under normal operation

or not, displaying "ON" for normal status or displaying a code like "Comm./F01-F64" for

communication errors or other errors. Please refer to the Error code list of alarms and errors in

chapter 8 to ﬁnd out solutions about the error.

2.At the top-center of the screen is the date and local time that must be set during

commissioning.

3.System Setup Icon, Press this set button,you can enter into the system setup screen which

including Basic Setting, Battery Setting , Grid Setting, System Work Mode, Generator

Port Use, Advanced Function and Device info.

4.The main screen includes the icons for PV(left up), grid (right up), load (right bottom)

and battery (left bottom). It also displays the energy ﬂow direction by moving dots. When the

power is approaching to a high level, the color on the panels will change from green to red,

showing vividly the system status on the main screen.

Some clariﬁcations about the system status are as follows:

-PV power will always be positive.

-In single inverter system, load power will always be positive. In a parallel system, the load

power may be negative, which means that the other inverters supply power to this inverter

through the load port.

-A negative Grid power means energy being exported to the grid (sold), whereas positive means

energy being imported form the grid (purchased).

-Negative battery power means charge, positive means discharge.
