- 30 -

L wireCAN N wire PE wire

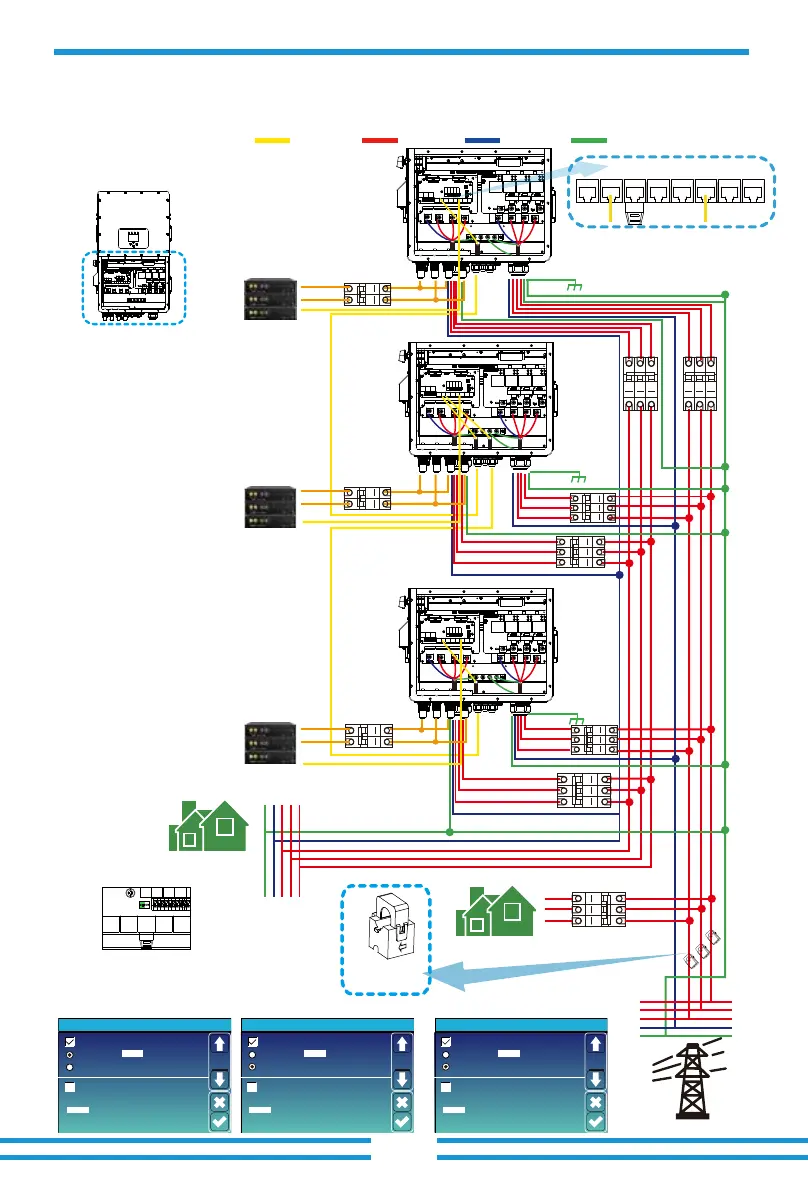

3.14 Three phase parallel connection diagram

Inverter

Master inverter Slave Inverter Slave Inverter

Parallel

Master

Slave

Modbus SN

Advanced Function

Paral.

Set3

EX_Meter For CT

Meter Select

0/3No Meter

Parallel

Master

Slave

Modbus SN

Advanced Function

Paral.

Set3

EX_Meter For CT

Meter Select

0/3No Meter

Parallel

Master

Slave

Modbus SN

Advanced Function

Paral.

Set3

EX_Meter For CT

Meter Select

0/3No Meter

Grid

Backup Load

Inverter

No.3

(slave)

Inverter

No.2

(slave)

Inverter

No.1

(master)

⑩

⑤

②

③

Battery pack

Home Load

L1 L2 L3NPE

Arrow pointing

inverter

⑧

Ground

Battery pack

①

Battery pack

CT1

CT2

CT3

Parallel_1 Parallel_2Meter CAN DRM BMS1 BMS2 RS485

①②③ DC Breaker for battery

SUN 29.9K-SG-EU: 200A DC breaker

SUN 30K-SG-EU: 200A DC breaker

SUN 35K-SG-EU: 200A DC breaker

SUN 40K-SG-EU: 200A DC breaker

SUN 50K-SG-EU: 200A DC breaker

④⑥⑧ AC Breaker for grid port

SUN 29.9K-SG-EU: 240A AC breaker

SUN 30K-SG-EU: 240A AC breaker

SUN 35K-SG-EU: 240A AC breaker

SUN 40K-SG-EU: 240A AC breaker

SUN 50K-SG-EU: 240A AC breaker

⑤⑦⑨ AC Breaker for backup load

SUN 29.9K-SG-EU: 240A AC breaker

SUN 30K-SG-EU: 240A AC breaker

SUN 35K-SG-EU: 240A AC breaker

SUN 40K-SG-EU: 240A AC breaker

SUN 50K-SG-EU: 240A AC breaker

⑩ AC Breaker for home load

Depends on household loads

⑥

⑦

⑨

④

Note: For the parallel system, the lead-acid battery and 'No Batt' mode are not supported.

All inverters connected in parallel must be the same model. Please use lithium battery which

is on the "Deye Approved Battery list".

Each inverter should have its own separate battery set.

Ensure that the DIP switches of each

hybrid inverter in the parallel system

are switched to the OFF state.

Note: The idle parallel ports of the ﬁrst and last inverters

need to be plugged in with matching resistors.

OFF

Note: For the parallel system,

please choose the "Zero export to CT " mode.
