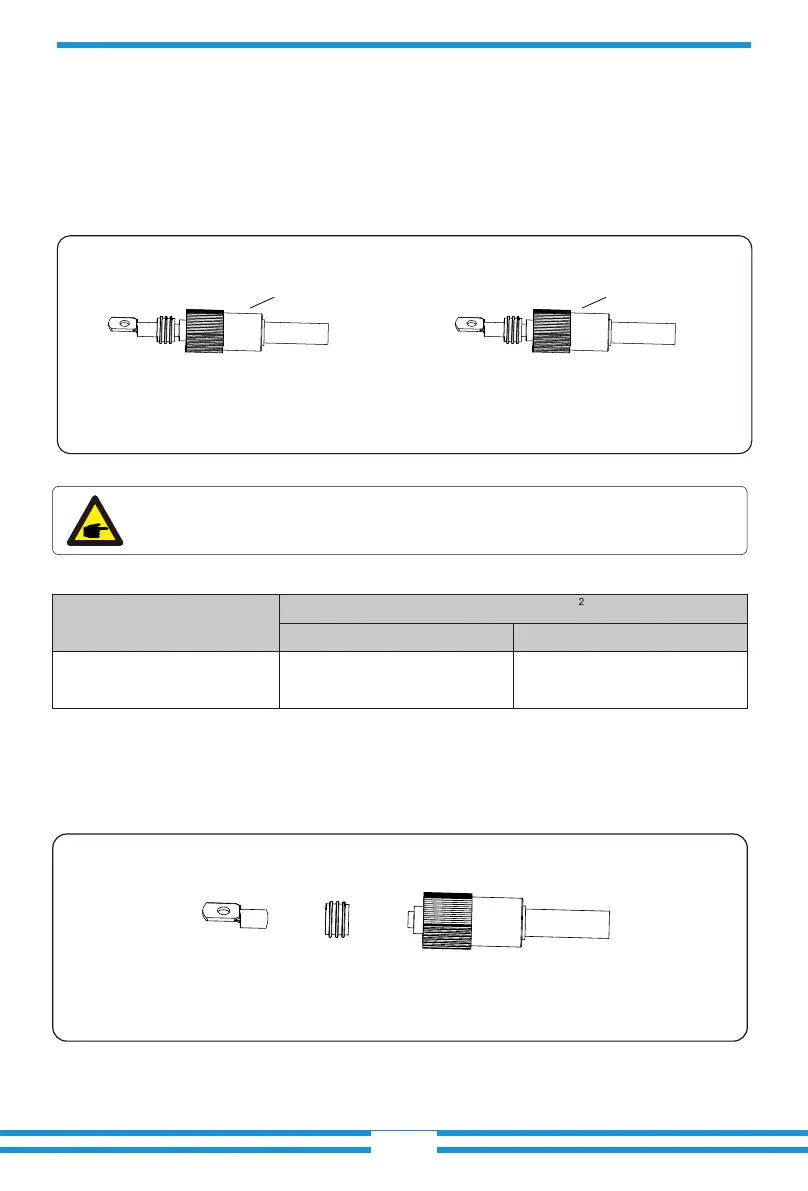

3.4 Battery connection

For safe operation and compliance, a separate DC over-current protector or disconnect device is

required between the battery and the inverter. In certain applications, a disconnect switch may

not be necessary, but it is always essential to have DC overcurrent protection in place. Refer to

the typical amperage in the page 28 for the required fuse or circuit breaker size.

Pic 3.1 BAT+ plug connector

Pic 3.2 BAT- plug connector

Orange

Safety Hint:

Please use approved DC cable for battery system.

Model

Range Recommended value

Cross section（mm ）

29.9/30/35/40/50kW

10-16

(6-4AWG)

10(6AWG)

Chart 3-2

The steps to assemble the battery plug connectors are listed as follows:

a) Pass the cable through the terminal, as shown in Pic 3.3.

Pic 3.3

Black
