L wireCAN N wire PE wire
BMS1 BMS2
Grid
CT1 CT2
CT3
Backup Load
Inverter
①DC
Breaker
②AC Breaker
③AC Breaker
④AC Breaker
Battery pack
Home Load
L1
L1
L2
L2
L3
L3
N
N
PE
PE
L1
L2
L3
N
PE
① DC Breaker for battery
SUN-25K-SG02HP3-EU-AM3: 100A DC breaker
SUN-29.9K-SG02HP3-EU-AM3: 100A DC breaker
SUN-30K-SG02HP3-EU-AM3: 100A DC breaker
② AC Breaker for backup load
SUN-25K-SG02HP3-EU-AM3: 100A AC breaker
SUN-29.9K-SG02HP3-EU-AM3: 100A AC breaker
SUN-30K-SG02HP3-EU-AM3: 100A AC breaker
③ AC Breaker for grid
SUN-25K-SG02HP3-EU-AM3: 100A AC breaker
SUN-29.9K-SG02HP3-EU-AM3: 100A AC breaker
SUN-30K-SG02HP3-EU-AM3: 100A AC breaker
④AC Breaker for home load
Depends on household loads

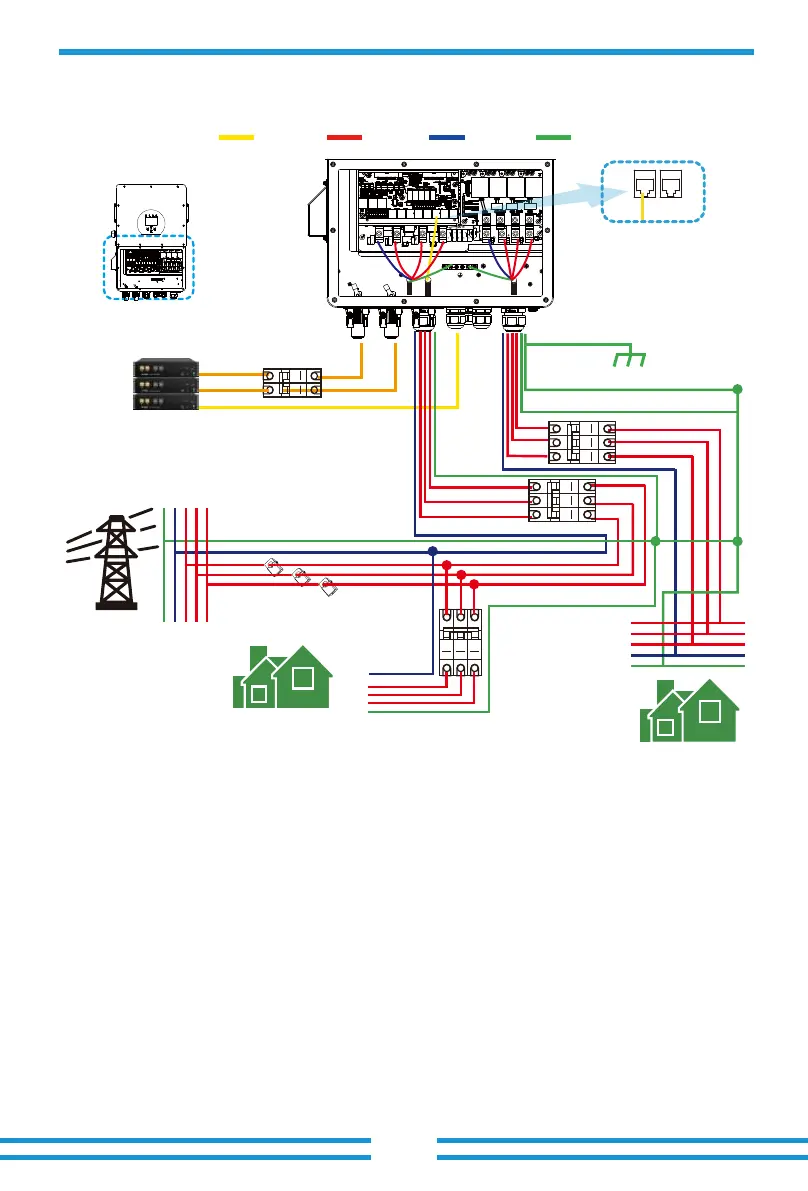

3.12 Typical application diagram of on-grid system
Ground
NOTE： This model inverter only has one battery input, if you want to use more than one set batteries, you need to connect these
battery sets in parallel firstly, then connect the master BMS with BMS1 port of inverter via communication cable.
