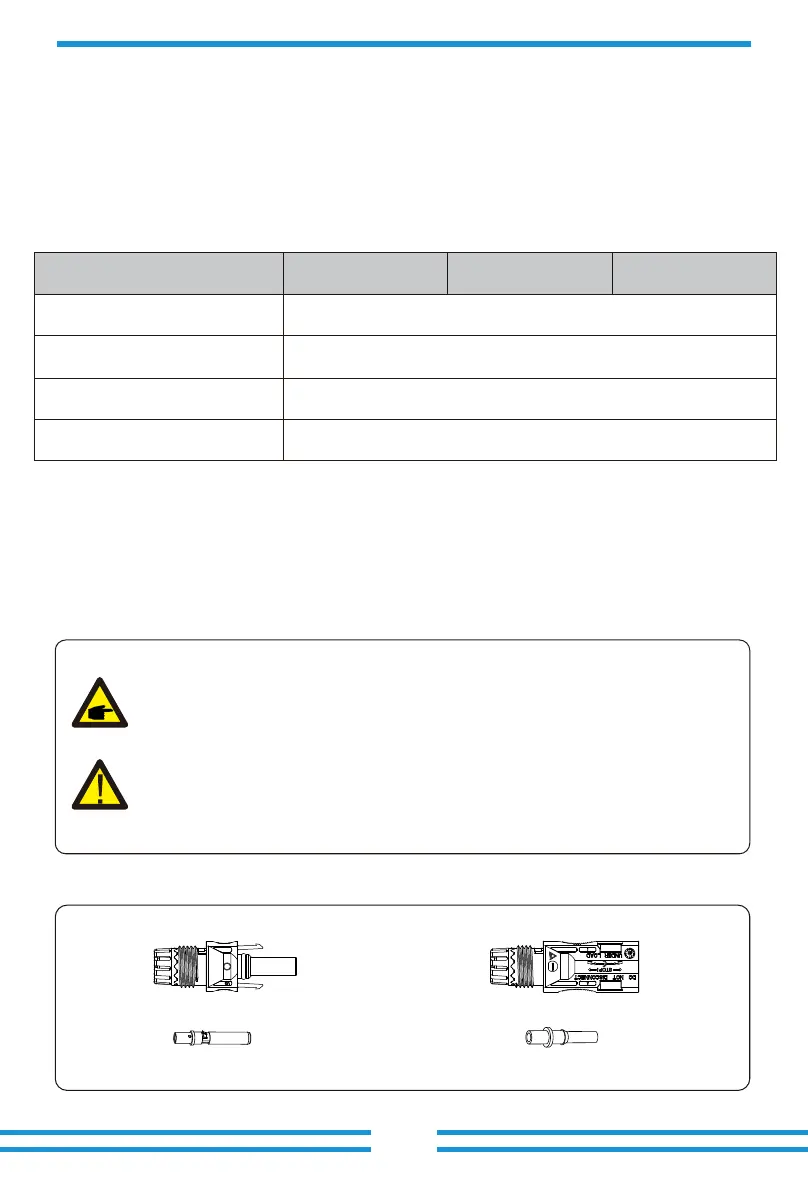

3.6.1 PV Module Selection:
3.6.2 PV Module Wire Connection:
When selecting proper PV modules, please be sure to consider below parameters:
1) Open circuit Voltage (Voc) of PV modules can not exceed max. PV Input Voltage of inverter.
2) Open circuit Voltage (Voc) of PV modules should be higher than min.PV Input Voltage of
inverter.
3) The PV modules used to connected to this inverter shall be Class A rating certified according
to lEC 61730.
Chart 3-5
1. Switch the Grid Supply Main Switch(AC)OFF.
2. Switch the DC lsolator OFF.
3. Assemble PV input connectors to the inverter.
Safety Hint:
Before connecting to inverter, please make sure that the open circuit voltage
of PV strings haven't exceeded the max.PV input voltage of the inverter.
Safety Hint:
Before connection, please make sure the polarity of PV array matches the
"DC+" and "DC-" symbols.
Pic 6.1 DC+ male connector
Pic 6.2 DC- female connector
PV Input Voltage
Inverter Model
PV Array MPPT Voltage Range
No. of MPP Trackers
No. of Strings MPP Tracker
600V (180V-1000V)
150V-850V
3
SUN-25K-SG02HP3
-EU-AM3
SUN-29.9K-SG02HP3
-EU-AM3
SUN-30K-SG02HP3
-EU-AM3
2+2+2
