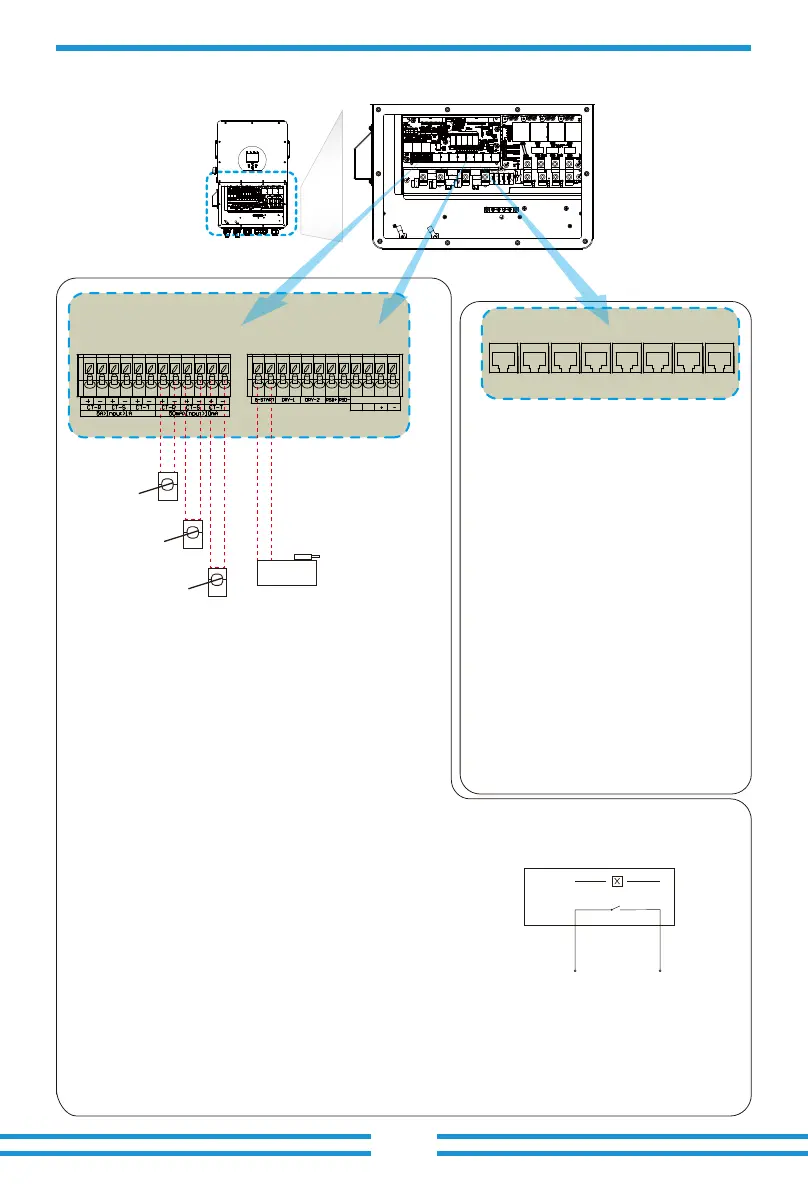

1 2 3 4 5 6 7 8 9 10 1112 1 2 3 4 5 6 7 8 9 10 1112
Meter: for energy meter communication.
Parallel_1: Parallel communication
port 1.
Parallel_2: Parallel communication
port 2 . (These two ports
have no particular orders)
CAN: reserved.
DRM: Logic interface for AS/
NZS 4777.2:2020.
BMS1: BMS port for battery
communication port .
BMS2: reserved.
RS485: RS485 port.
CT -S
CT -T
CT -R
Gen start-up
N/O Relay
Parallel_1 Parallel_2Meter CAN DRM BMS1 BMS2 RS485
GS (diesel generator startup signal)
relay
coil
open
contact
G S
3.3 Function port definition
CN1 CN2
Inverter
SHUT DOWN
B B
CN1:
CT-R (1,2,7,8): current transformer (CT-R) for"zero
export to CT"mode clamps on L1 when
in three phase system.
CT-S (3,4,9,10): current transformer (CT-S) for"zero
export to CT"mode clamps on L2 when
in three phase system.
CT-T (5,6,11,12): current transformer (CT-T) for"zero
export to CT"mode clamps on L3 when
in three phase system.
If the secondary current of CT is within the range of
1A-5A, use terminals 1-6. If the secondary current of
CT is within the range of 10mA-50mA, use terminals 7-12.
CN2:
G-start (1,2): dry contact signal for startup the diesel generator.
When the "GEN signal" is active, the open contact (GS) will switch on (no voltage output).
DRY-1 (3,4): Dry contact output. When the inverter is in
off-grid mode and the "signal island mode" is checked,
the dry contact will switch on.
DRY-2 (5,6): reserved.
RSD+,RSD- (7,8): When battery is connected and the
inverter is in "ON" status, it will provide 12Vdc.
SHUT DOWN (9,10,11,12): when the terminal "B" & "B" is
short-circuited with additional wire connection, or there’s
12Vdc input at the terminal "+ & - ", then the 12Vdc of
RSD+ & RSD- will disappear immediately, and the inverter
will shutdown immediately.
DRM: It is used to accept the
external input signal(Digital input).
More details please refer to the P57.
