Je bekijkt pagina 40 van 62

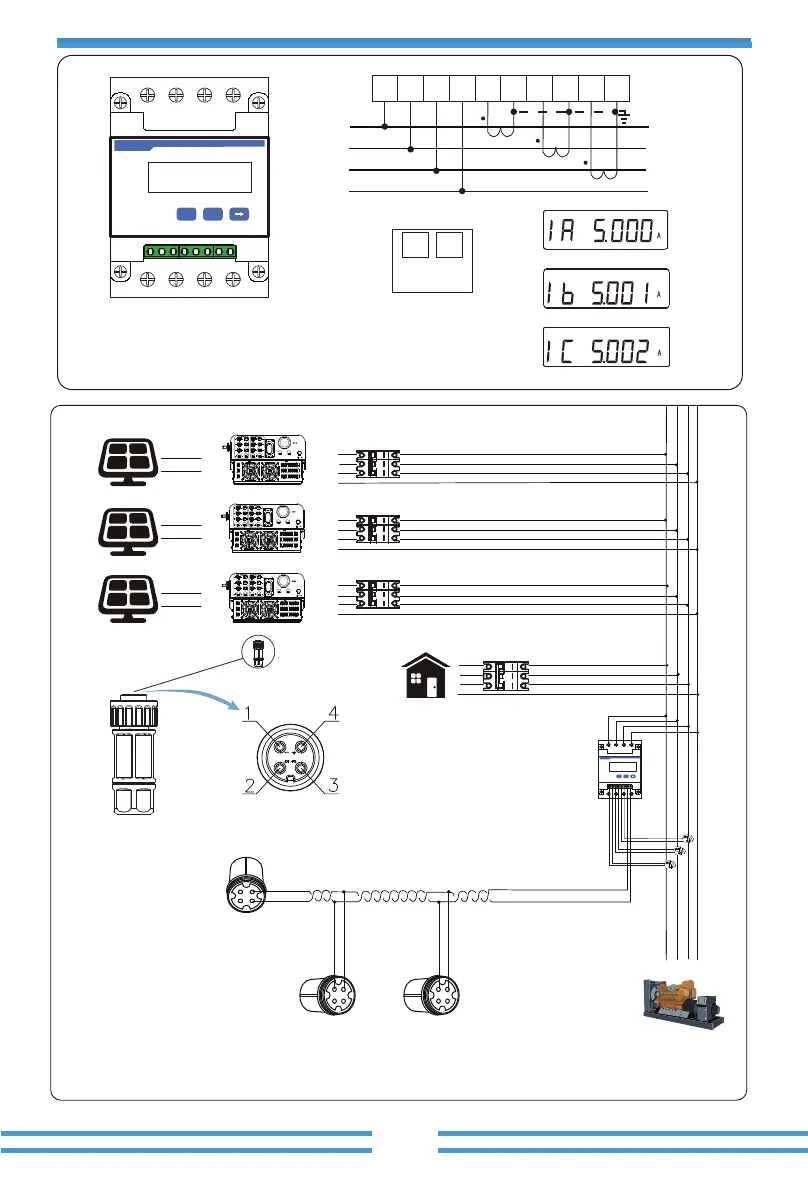

Pic 7.33 CHNT Connection diagram(The pass-through table)
L1
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
load
AC Breaker
AC Breaker
AC Breaker
L1 L2 L3 N
1
2
3
4
Master(Mst)
1
2
3
4
1
2
3
4
485_B
485_A
GND
485_B
(as short as possible)
485_A
(as short as possible)
485_B
(as short as possible)
485_A
(as short as possible)
AC Breaker
VCC_5V
485_B
485_AGND
RS 485
Female connector
White line
White line
White line
Black line
Black line
Black line
Three-Phase Smart Meter
SET ESC
1 74 10
25
24
13 14 16 17 19 21
3 96 10
230/400V,
3~100A/40mA
50/60Hz
L1 L2 L3 N
Pic 7.32 CHNT meter
CHNT DTSU666
3x230/400V
100A/40mA
Phase B current =5.001A
Phase C current =5.002A
Phase A current =5.000A
Three-Phase Smart Meter
SET ESC
1 74 10
252413 14 16 17 19 21
3 96 10
230/400V,
3~100A/40mA
50/60Hz
Generator
- 37 -
Master(Mst)
Slave1(Slv1)
Slave2(Slv2)
RS485
WIFI
Meter
RS485
WIFI
Meter
RS485
WIFI
Meter
