Parallel
Master
Slave
Modbus SN
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
Advanced Function
Paral.
Set3
EX_Meter For CT Meter Select
0/3No Meter
Parallel
Master
Slave
Modbus SN
03
Advanced Function
Paral.
Set3
EX_Meter For CT Meter Select
0/3No Meter
Master inverter Slave Inverter Slave Inverter
EX_Meter For CT Meter Select
0/3No Meter
01
②④⑥
AC Breaker for backup load
SUN-14K-SG05LP3-AU-SM2: 100A AC breaker
SUN-15K-SG05LP3-AU-SM2: 100A AC breaker
SUN-16K-SG05LP3-AU-SM2: 100A AC breaker
SUN-18K-SG05LP3-AU-SM2: 100A AC breaker
SUN-20K-SG05LP3-AU-SM2: 100A AC breaker
①③⑤
AC Breaker for grid
port
SUN-14K-SG05LP3-AU-SM2: 100A AC breaker
SUN-15K-SG05LP3-AU-SM2: 100A AC breaker
SUN-16K-SG05LP3-AU-SM2: 100A AC breaker
SUN-18K-SG05LP3-AU-SM2: 100A AC breaker
SUN-20K-SG05LP3-AU-SM2: 100A AC breaker
⑦
AC Breaker for home load
Depends on household loads
- 29 -

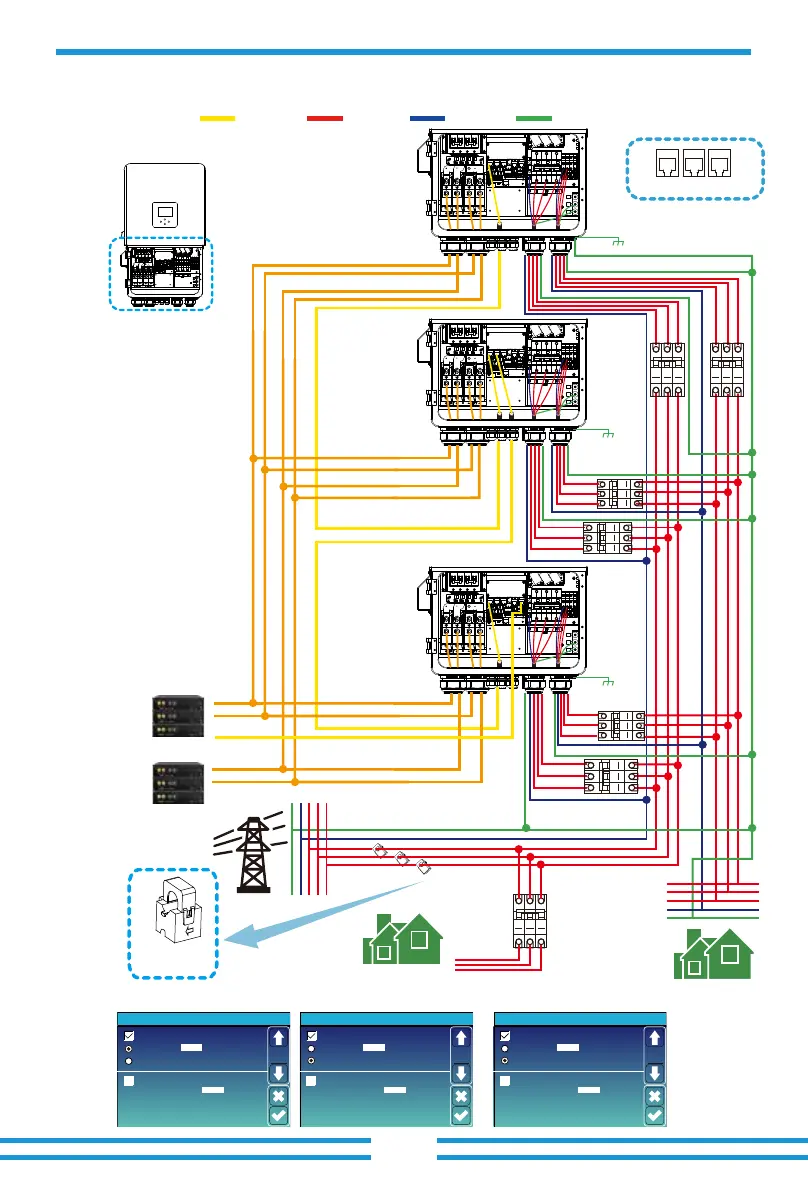

3.13 Three phase parallel connec�on diagram
L wireCAN N wire PE wire
Inverter
Parallel_A Parallel_B Meter-485
Grid
CT1 CT2
CT3
Backup Load
Inverter
No.3
(slave)
Inverter
No.2
(slave)
Inverter
No.1
(master)
Ground
Ground
Ground
①
③
④
⑤
⑥
⑦
②
Battery pack(master)
Battery pack(slave)
Home Load
L1L2L3NPE
L1
L2
L3
N
PE
CT
Arrow pointing
to
inverter
Note: For the parallel system, please choose the "Zero export to CT " mode.
