- 27 -

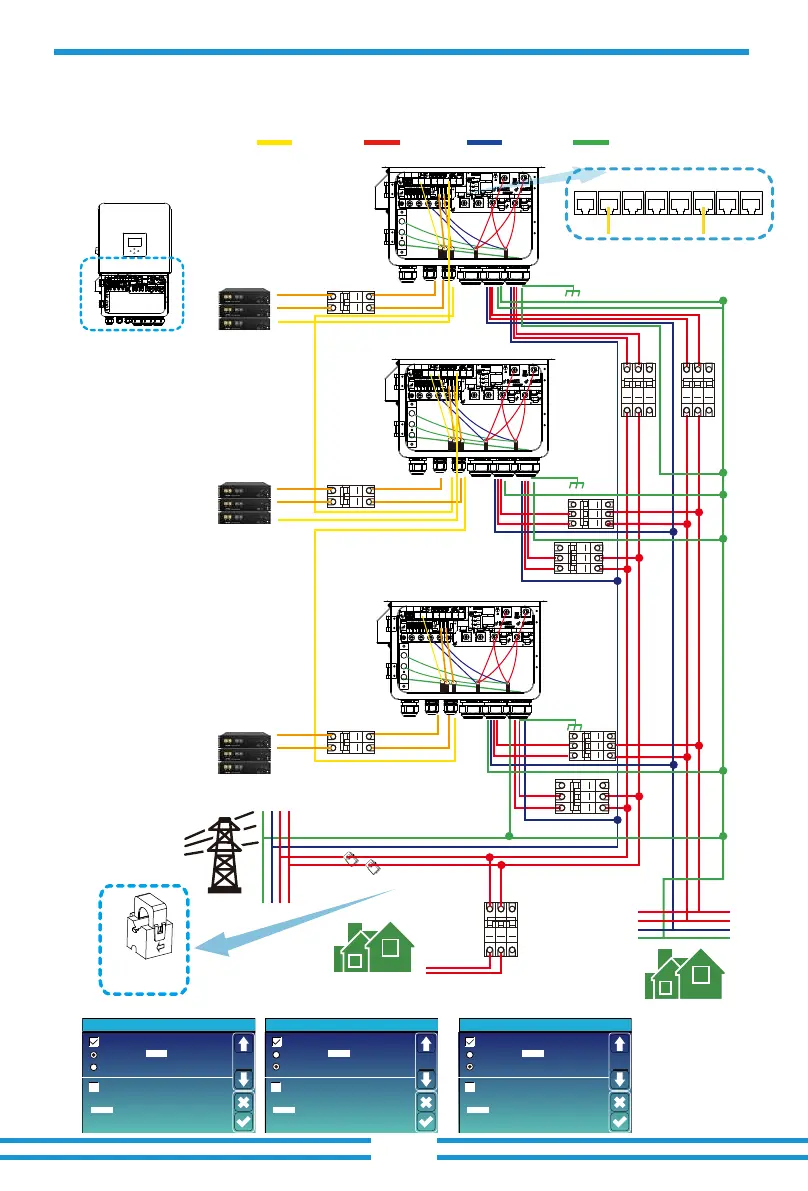

3.12 Three phase parallel connecon diagram
①②③ DC Breaker for battery
SUN-8K-SG01HP2-US-AM2: 100A DC breaker
SUN-10K-SG01HP2-US-AM2: 100A DC breaker
SUN-12K-SG01HP2-US-AM2: 100A DC breaker
SUN-15K-SG01HP2-US-AM2: 100A DC breaker
⑤⑦⑨ AC Breaker for backup load
SUN-8K-SG01HP2-US-AM2: 100A AC breaker
SUN-10K-SG01HP2-US-AM2: 100A AC breaker
SUN-12K-SG01HP2-US-AM2: 100A AC breaker
SUN-15K-SG01HP2-US-AM2: 100A AC breaker
④⑥⑧ AC Breaker for grid port
SUN-8K-SG01HP2-US-AM2: 100A AC breaker
SUN-10K-SG01HP2-US-AM2: 100A AC breaker
SUN-12K-SG01HP2-US-AM2: 100A AC breaker
SUN-15K-SG01HP2-US-AM2: 100A AC breaker
⑩ AC Breaker for home load
Depends on household loads
L wireCAN N wire PE wire
Inverter
Grid
CT1 CT2
Backup Load
Inverter
No.3
(slave)
Inverter
No.2
(slave)
Inverter
No.1
(master)
④
⑥
⑦
⑨
⑩
⑤
③
Battery pack
②
Battery pack
①
Battery pack
Home Load
L1L2NPE
L1
L2
N
PE
CT
Arrow pointing
to
inverter
⑧
Ground
Ground
Ground
Parallel_1 Parallel_2Meter CAN DRM BMS1 BMS2 RS485
Note: unlike cases of other hybrid
inverter with LV ba�ery, HV ba�ery
can only be connected separately to
HV hybrid inverters.
Note: For the parallel system, the lead-acid ba�ery is not supported. Please use Deye approved
lithium ba�ery.
Master inverter Slave Inverter Slave Inverter
Parallel
Master
Slave
Modbus SN
02
Advanced Function
Paral.
Set3
EX_Meter For CT
Meter Select
0/3No Meter
Parallel
Master
Slave
Modbus SN
03
Advanced Function
Paral.
Set3
EX_Meter For CT
Meter Select
0/3No Meter
Parallel
Master
Slave
Modbus SN
Advanced Function
Paral.
Set3
EX_Meter For CT
Meter Select
0/3No Meter
01
Master inverter Slave Inverter Slave Inverter
Parallel
Master
Slave
Modbus SN
02
Advanced Function
Paral.
Set3
EX_Meter For CT
Meter Select
0/3No Meter
Parallel
Master
Slave
Modbus SN
03
Advanced Function
Paral.
Set3
EX_Meter For CT
Meter Select
0/3No Meter
Parallel
Master
Slave
Modbus SN
Advanced Function
Paral.
Set3
EX_Meter For CT
Meter Select
0/3No Meter
01
