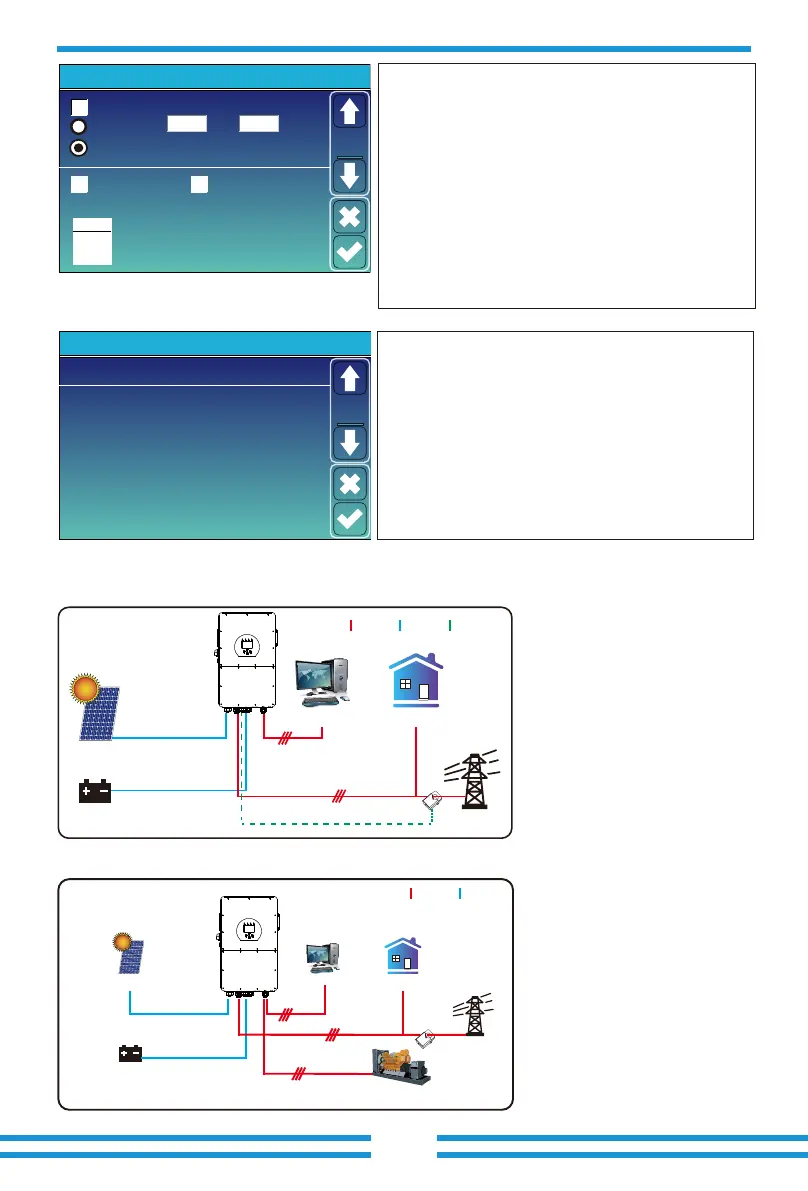

- 38 -
6. Mode
Mode I:Basic
Mode II: With Generator
Grid
Backup Load On-Grid Home Load
Battery
Solar
CT
AC cable DC cable
Generator
Grid
Backup Load On-Grid Home Load
CT
Battery
Solar
AC cable DC cable
COM cable
5.11 Device Info Setup Menu
HMI: LCD version
Volt
1
2
3
50.38V 19.70A 30.6C 52.0% 26.0Ah 0.0V 0.0A 0|0|0
50.33V 19.10A 31.0C 51.0% 25.5Ah 53.2V 25.0A 0|0|0
50.30V 16.90A 30.2C 12.0% 6.0Ah 53.2V 25.0A 0|0|0
4
5
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
6
7
8
9
10
11
12
13
14
15
Curr
Volt Curr
Temp SOC Energy
Charge
Fault
Sum
Data
Details
Data
Li-BMS
Volt
1
2
3
50.38V 19.70A 30.6C 52.0% 26.0Ah 0.0V 0.0A 0|0|0
50.33V 19.10A 31.0C 51.0% 25.5Ah 53.2V 25.0A 0|0|0
50.30V 16.90A 30.2C 12.0% 6.0Ah 53.2V 25.0A 0|0|0
4
5
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
0.00V 0.00A 0.0C 0.0% 0.0Ah 0.0V 0.0A 0|0|0
6
7
8
9
10
11
12
13
14
15
Curr
Volt Curr
Temp SOC Energy
Charge
Fault
Sum
Data
Details
Data
Li-BMSDevice Info.
Inverter ID: 2102199870 Flash
MAIN:Ver2002-1046-1707
HMI: Ver 1001-8010
Alarms Code
F13 Grid_Mode_changed
F13 Grid_Mode_changed
F56 DC_VoltLow_Fault
F23 Tz_GFCI_OC_Fault
2021-06-11 13:17
2021-06-11 08:23
2021-06-11 08:21
2021-06-10 13:05
Occurred
Device
Info
MAIN: Control board FW version
This page show Inverter ID, Inverter version and alarm
codes.
Parallel: Enable this func�on when several same model hybrid
inverters are connec�ng in parallel.
Master: Select any hybrid inverter in the parallel system as the
master inverter, and the master inverter needs to manage the
working mode of the parallel system.
Slave: Set the other inverters managed by the master inverter
as slave inverter.
Modbus SN: The Modbus address of each inverter, should be
different.
Baud Rate: The rate at which inverter transmits data.
Ex_Meter For CT:
when using zero-export to CT mode,
the hybrid inverter can select EX_Meter For CT func�on
and use the different meters.e.g.CHNT and Eastron.
Grid Tie Meter2: When there are one or more grid-�ed inverters
AC coupled on the grid or load port side of the hybrid inverter,
and external meter is installed for this/these grid-�ed inverters,
it is necessary to enable this func�on to upload the data of the
external meter to the hybrid inverter to ensure that the power
consump�on data of the load is correct.
Parallel
Master
Slave
00
Modbus SN
0000
Baud Rate
Paral.
Set3
EX_Meter For CT Grid Tie Meter2
Meter Select
0/3No Meter
CHNT
Eastron
Advanced Function
