①②③ DC Breaker for battery
⑤ AC Breaker for grid port
④ AC Breaker for backup load
⑥ AC Breaker
Depends on Home Load
SUN 7K-SG: 50A AC breaker
SUN 7.6K-SG: 50A AC breaker
SUN 8K-SG: 50A AC breaker
SUN 10K-SG: 50A AC breaker
SUN 7K-SG: 225A DC breaker
SUN 7.6K-SG: 225A DC breaker
SUN 8K-SG: 225A DC breaker
SUN 10K-SG: 225A DC breaker
SUN 7K-SG: 50A AC breaker
SUN 7.6K-SG: 50A AC breaker
SUN 8K-SG: 50A AC breaker
SUN 10K-SG: 50A AC breaker
- 26 -

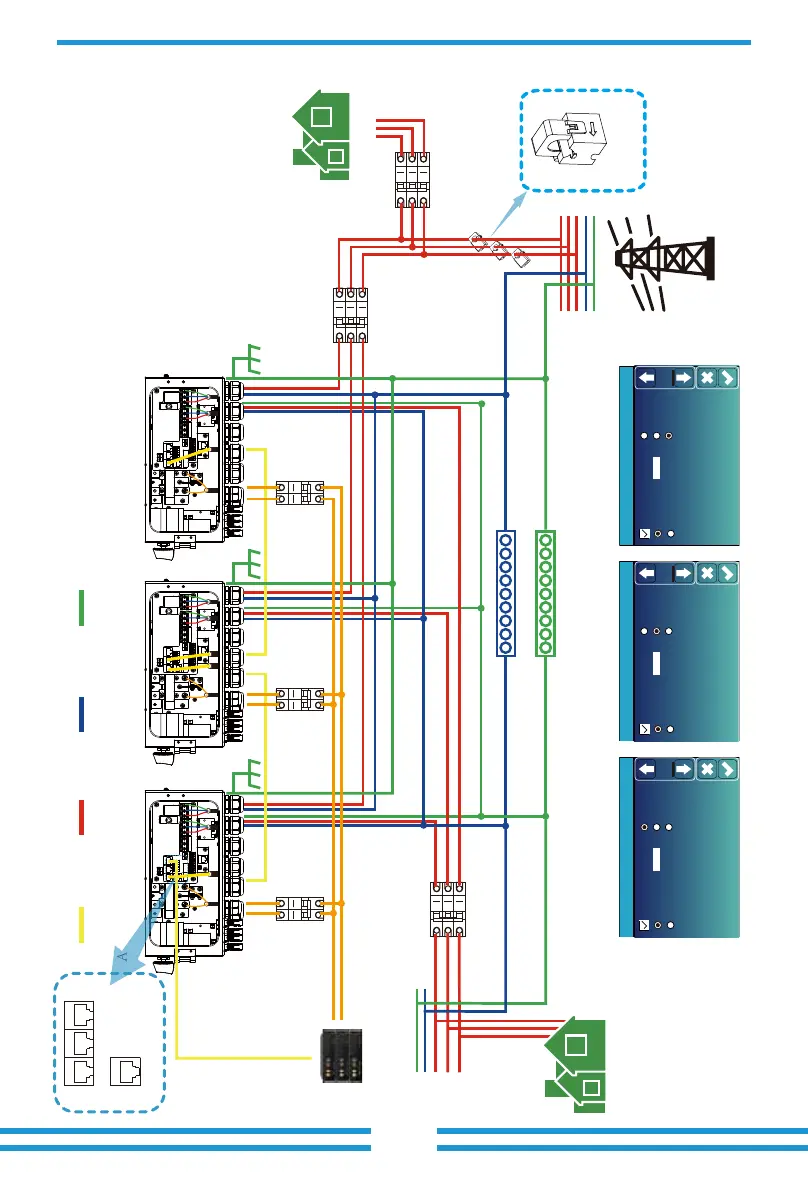

3.13 Three phase Parallel Inverter
Ground
L wireCAN N wire PE wire
Battery pack
Grid
CAN/RS 485
L1
N
PE
L2
L3
A Phase Inverter No.1(master) B Phase Inverter No.2(master) C Phase Inverter No.3(master)
Backup Load
Parallel
Master
Slave
Modbus SN
01
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
03
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
A Phase Master inverter B Phase Master inverter C Phase Master inverter
Home load
L3
L2
L1
N-BAR
E-BAR
④ AC Breaker
⑤ AC Breaker
⑥ AC Breaker
① DC
Breaker
② DC
Breaker
③ DC
Breaker
CT1
CT2
CT3
CT
Arrow pointing
to inverter
RS 485/METER
parallel_1 parallel_2 BMS 485/
CAN
Note: For the parallel system, please choose the "Zero export to CT " mode.
