- 19 -

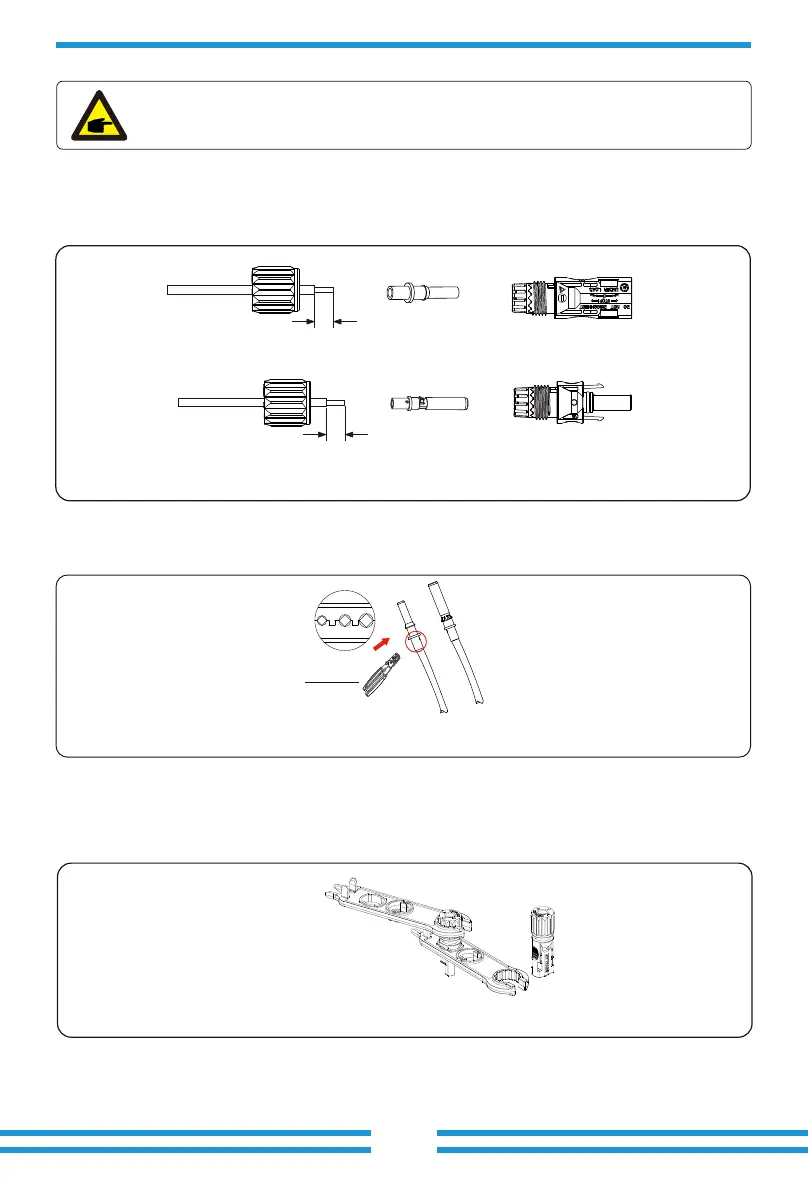

The steps to assemble the DC connectors are listed as follows:
a)Strip off the DC wire about 7mm, disassemble the connector cap nut (see picture 3.3).
Safety Hint:
Please use approved DC cable for PV system.
b) Crimping metal terminals with crimping pliers as shown in picture 3.4.
c) Insert the contact pin to the top part of the connector and screw up the cap nut to the top
part of the connector. (as shown in picture 3.5).
Pic 3.5 connector with cap nut screwed on
Pic 3.4 Crimp the contact pin to the wire
Pic 3.3 Disassemble the connector cap nut
�mm
�mm
Crimping plier
