Je bekijkt pagina 27 van 55
- 25 -
L wireCAN N wire PE wire
Battery pack
Grid
L1
L2
L3
N
PE
A Phase Inverter No.1(master)
B Phase Inverter No.2(master) C Phase Inverter No.3(master)
L3
L2
L1
N
PE
Parallel A Parallel B

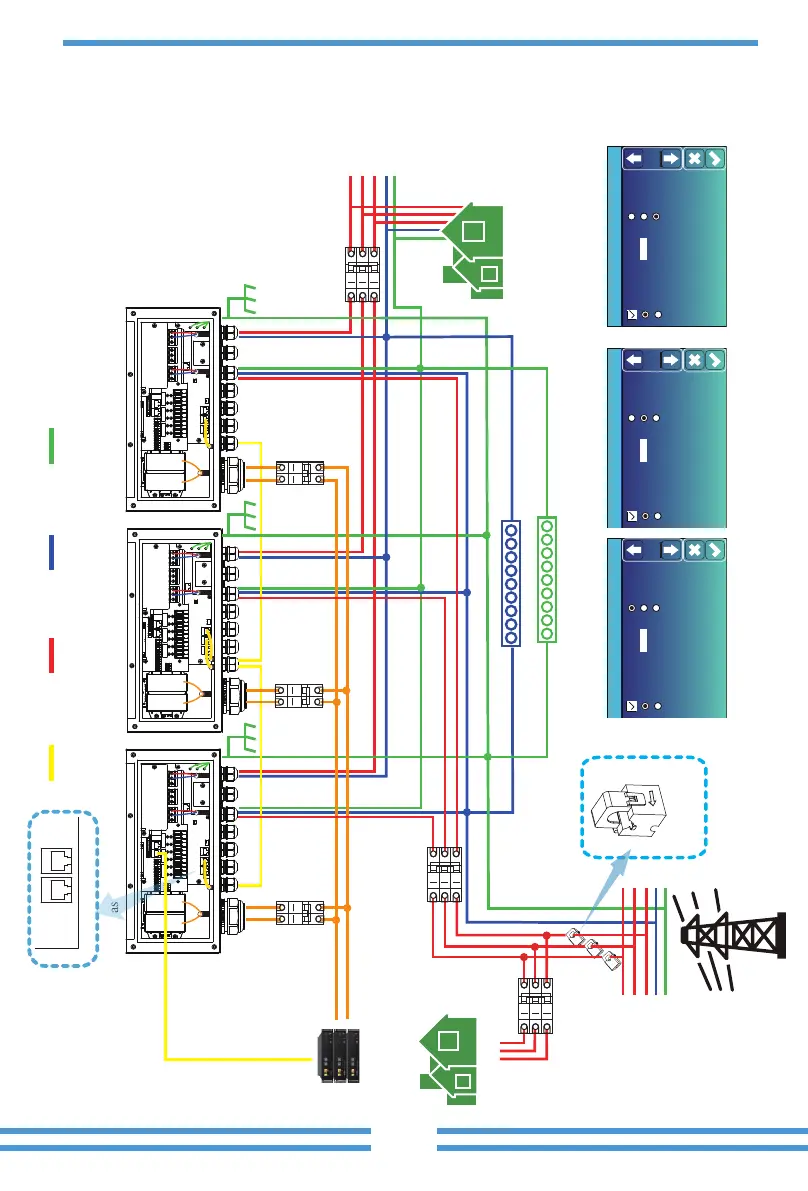

3.13 Three phase Parallel Inverter
Parallel
Master
Slave
Modbus SN
01
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
02
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
Parallel
Master
Slave
Modbus SN
03
A Phase
B Phase
C Phase
Advanced Function
Paral.
Set3
A Phase Master inverter B Phase Master inverter C Phase Master inverter
CAN/RS 485
Backup Load
E-BAR
N-BAR
Home load
CT
CT3
CT2
CT1
Arrow pointing
to
inverter
⑥ AC Breaker
⑤ AC Breaker
④ AC Breaker
① DC
Breaker
② DC
Breaker
③ DC
Breaker
Ground
①②③ DC Breaker for battery
SUN-5K-SG-EU: 150A DC breaker
SUN-6K-SG-EU: 200A DC breaker
SUN-7.6K-SG-EU: 200A DC breaker
SUN-8K-SG-EU: 250A DC breaker
SUN-10K-SG-EU: 300A DC breaker
SUN-12K-SG-EU: 300A DC breaker
⑤ AC Breaker for grid port
SUN-5K-SG-EU: 40A AC breaker
SUN-6K-SG-EU: 40A AC breaker
SUN-7.6K-SG-EU: 63A AC breaker
SUN-8K-SG-EU: 63A AC breaker
SUN-10K-SG-EU: 100A AC breaker
SUN-12K-SG-EU: 100A AC breaker
④ AC Breaker for backup load port
SUN-5K-SG-EU: 40A AC breaker
SUN-6K-SG-EU: 40A AC breaker
SUN-7.6K-SG-EU: 63A AC breaker
SUN-8K-SG-EU: 63A AC breaker
SUN-10K-SG-EU: 100A AC breaker
SUN-12K-SG-EU: 100A AC breaker
⑥ AC Breaker
Depends on Home Load
Note: For the parallel system, please choose the "Zero export to CT " mode.
