30
1. Insert the first battery module into the battery module rack at the bottom cluster rack; then
in the order from bottom to the top, continue the installment in the same way till it reaches
the twelfth floor. On the thirteenth floor, insert the slide of the cabinet at the top of the rack
into the high-voltage control box.
2. After the battery module and control box is inserted into the rack, use M6*20 hex socket
combination screws to fix all the lugs of the battery module and control box on the side
beam in turn.

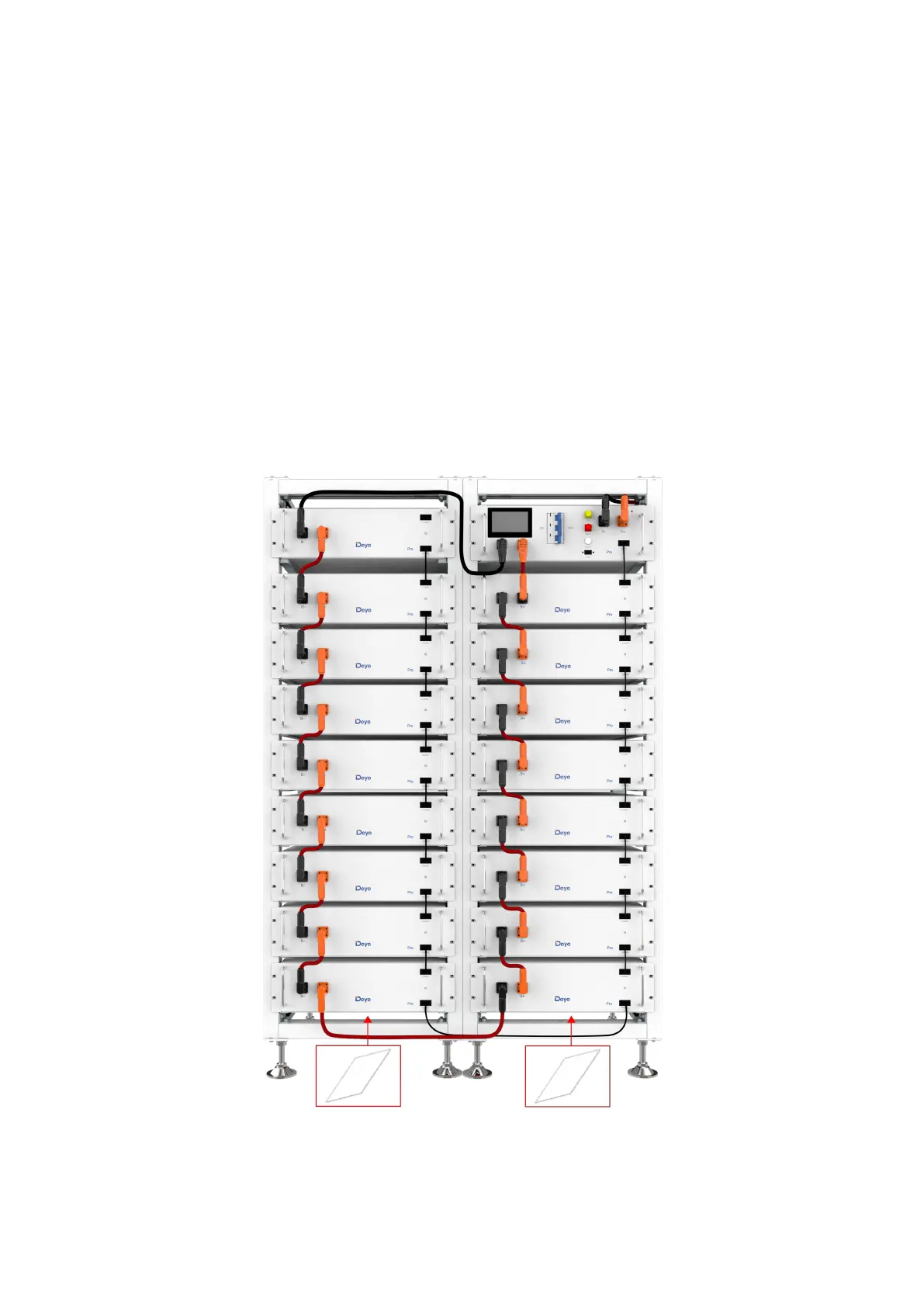

3. Note: During the installation of the cluster stand, the thermal insulation cotton is installed at
the bottom of the cluster stand, as shown in the figure:
