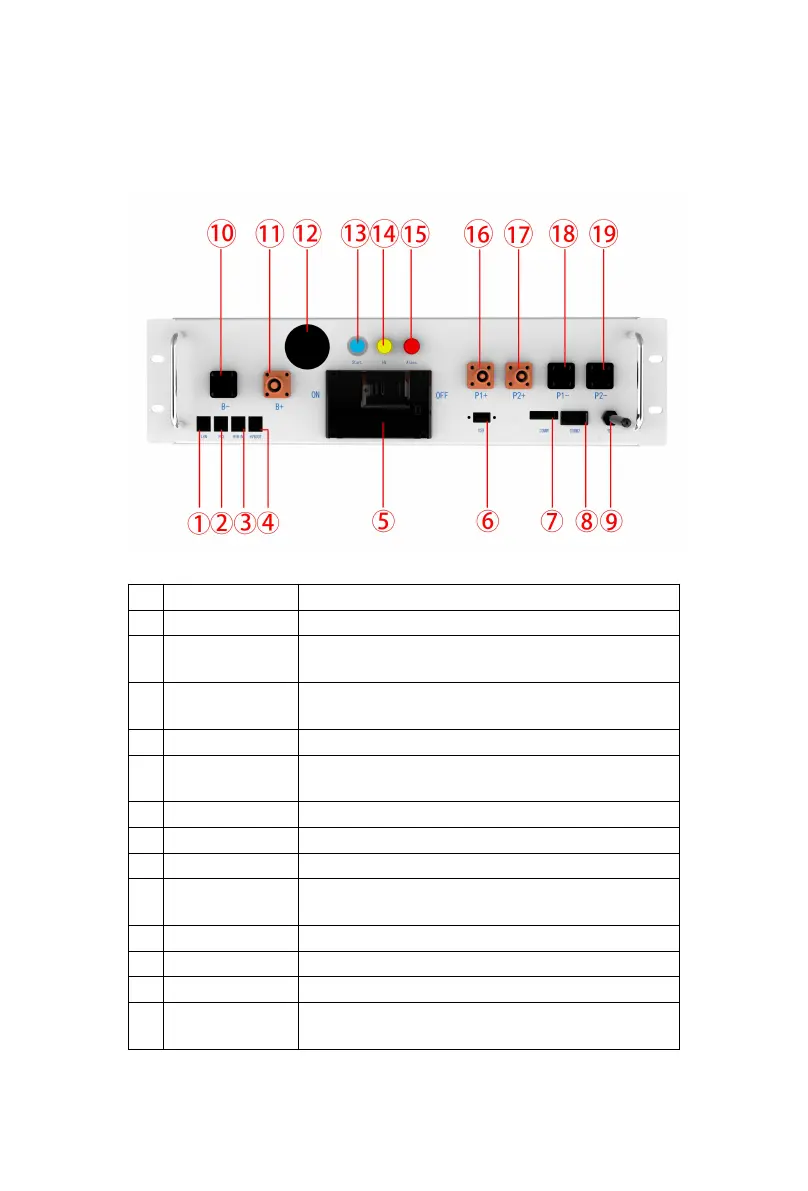

4.7 Description of High-Voltage Control Box
No. Name Description
① Ethernet Features not yet developed
② PCS COM
PCS COM battery communication terminal: used to output
battery information to the inverter.
③ IN COM
Connection position with previous BOS-A-PDU-2
communication input
④ OUT COM Connection position with next BOS-A communication output
⑤ Air switch
It is used to manually control the connection between the
battery rack and external devices
⑥ USB BMS upgrade port and storage expansion port
⑦ COMM1 Connection position of external 12VDC power supply
⑧ COMM2 Used for communication and providing power
⑨ Bluetooth
The mobile APP connects to the data acquisition rod of the
energy storage system
⑩ B- Battery common negative connection position (black)
⑪ B+ Battery common positive connection position (red)
⑫ Display screen Display SOC and fault codes
⑬ START
A start switch of 12VDC power inside the high-voltage control
box
