23

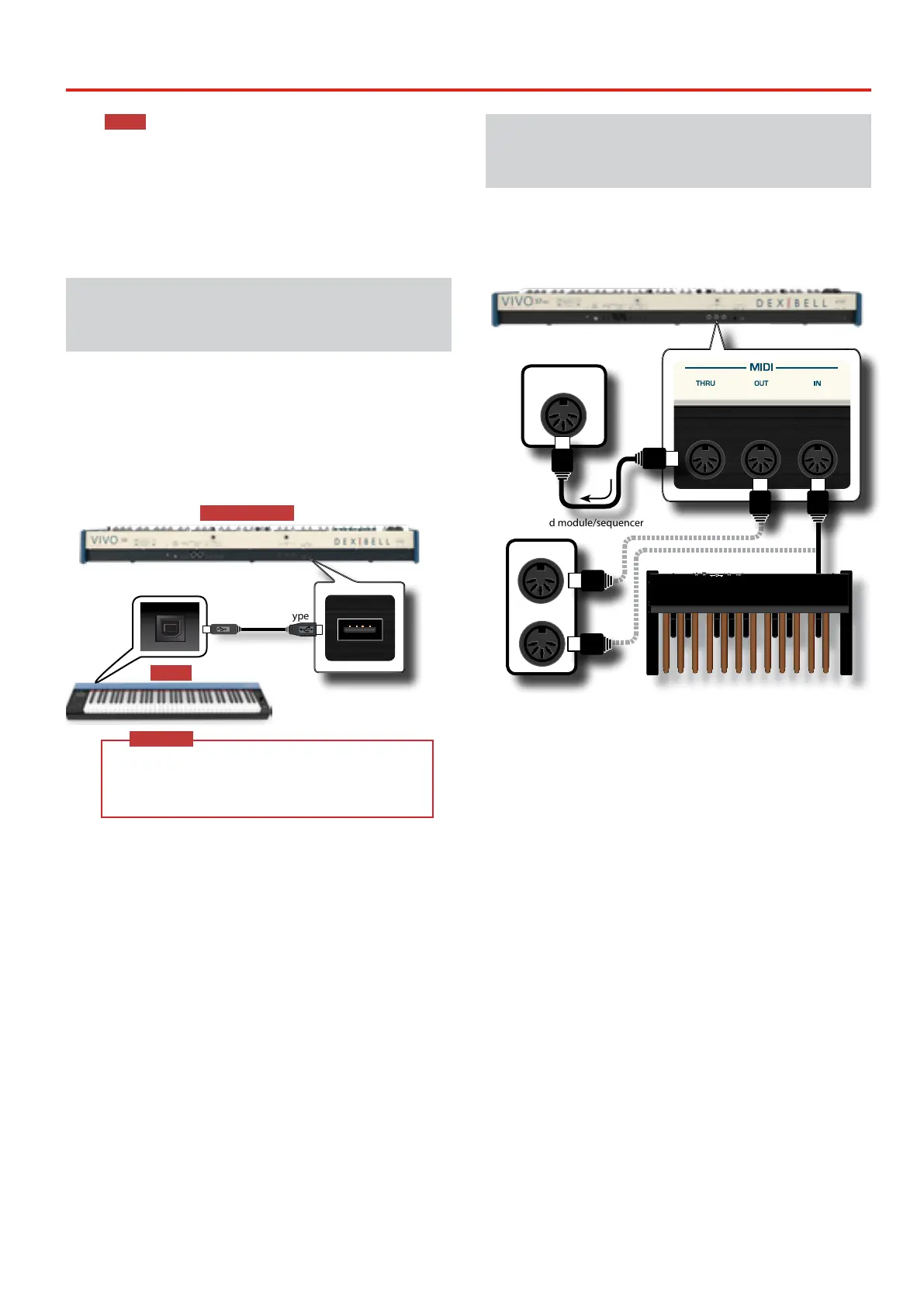

Connecting the S7/S3 PRO to an USB MIDI Keyboard (USB host function)
NOTE
• Switch on the S7/S3 PRO before you start up the DAW software on
your computer.
• Before to connect any other equipment, move the [VOLUME] knob
counterclockwise to minimize the volume.
Now, the same sound of the S7/S3 PRO's audio OUTPUT
(unbalanced or balanced) can be recorded into your computer and
the sound from your computer can be played from audio system
conencted to the S7/S3 PRO's audio OUTPUT jacks.
Connecting the S7/S3 PRO to an USB
MIDI Keyboard (USB host function)
Usign the following connection, your keyboard becomes a master (host).
You can connect other keyboards or modules from any brand directly
to the DEXIBELL USB “Memory” port and exchange MIDI data without a
computer and without using two MIDI cables.
The connection consists of the following main components:
• Your DEXIBELL keyboard.
• One slave MIDI USB Devices as a keyboards.
• A physical bus represented by the USB cable that links the devices
with the host .
USB cable AgB-type
Slaves
S9 - Master (host)
USB "Computer" port
USB "Memory" port
The "MEMORY" USB port of the S7 PRO M is located on the
left in the rear panel.
See "S7 PRO M Rear Side" (p. 15).
S7 PRO M
Connecting the S7/S3 PRO to MIDI
devices
MIDI is an universal standard, which means that musical data can
be sent to and received by instruments of dierent types and
manufacturers. MIDI allows you to connect your instrument to
another devices as an MIDI sound module.
Here below an example of MIDI connection:
IN
MIDI sound module/sequencer
To control other MIDI devices
IN
OUT
Pedal Board
MIDI PedalBoard
1. Use a optional standart MIDI cable (code: CHL400LU15)
to connect the S7/S3 PRO MIDI OUT socket to the MIDI IN
socket of the external MIDI device.
2. If necessary, use an optional standard MIDI cable (code:
CHL400LU15) to connect the MIDI OUT socket of the
external device to the S7/S3 PRO MIDI IN socket.
3. If you need to re-send the MIDI messages received by
the S7/S3 PRO OUT socket to another device, connect
the THRU socket using an additional MIDI cable (code:
CHL400LU15) to the relative MIDI IN socket.
For details on MIDI settings of the external device, refer to its
owner’s manual.
