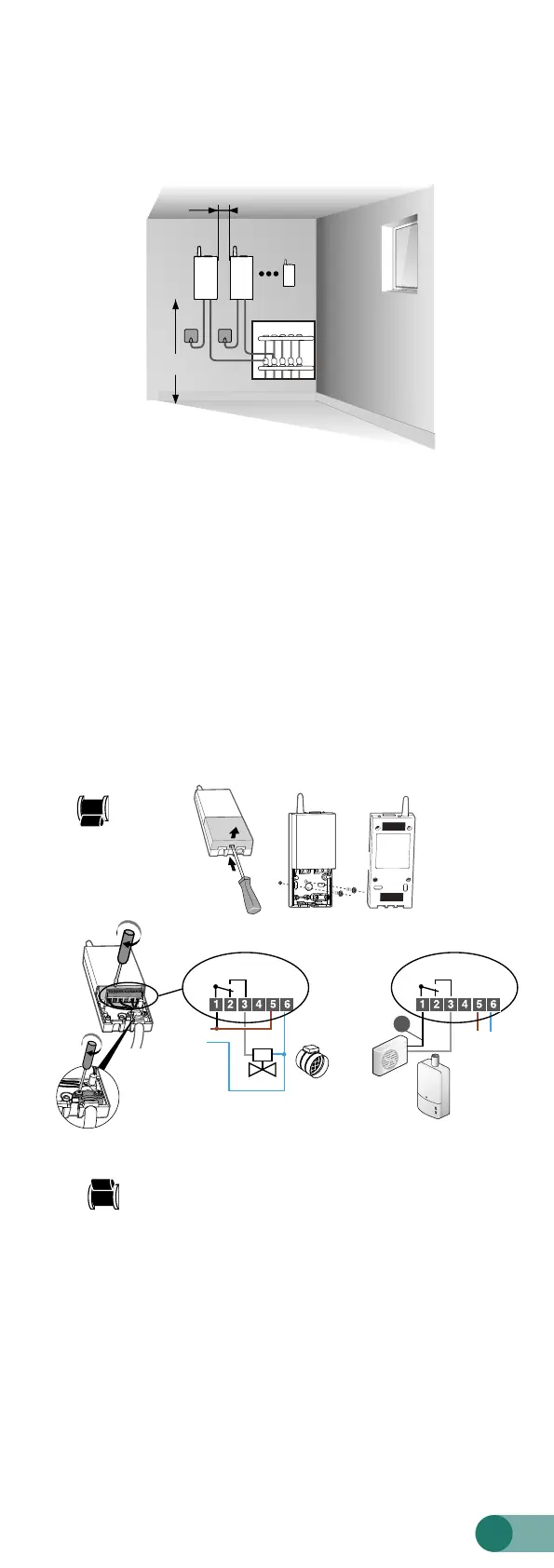

3. Installing the receiver

3.1 Location

The receiver must be installed at a minimum distance of 20 cm from any

metal surface (e.g. the boiler), and about 1.50 m from the ground to ensure

a good wireless link with the transmier.

3.2 Mounting / Connection

❶ First of all, switch o the power to your installaon.

❷ The receiver can be secured using adhesives (supplied) or with suitably

sized screws.

❸ You must make sure you comply with the wire colours when wiring.

Blue: Neutral

Brown: Phase

Black and grey: Control (contact).

❹ Secure the cable with the cable clamp (supplied).

❺ Once the receiver is connected, turn on the power to your installaon.

~1,50 m

> 10 cm

OFF

❶

❷

❹

ON

230V~

50 Hz

230V~

50 Hz

5A max. - 230V~ 5A max. - 230V~

L

L

N

N L N

❸

❺

Th

OR

Electro-thermal

motor

or register

OR

Heat pump or

boiler
