Gas connection for
ULPG
Gas inlet pipe
Nipple
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Test point adaptor
Test
point
Gas connection for
NATURAL GAS
Gas inlet pipe
Nipple
Gasket
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas regulator
Test
point

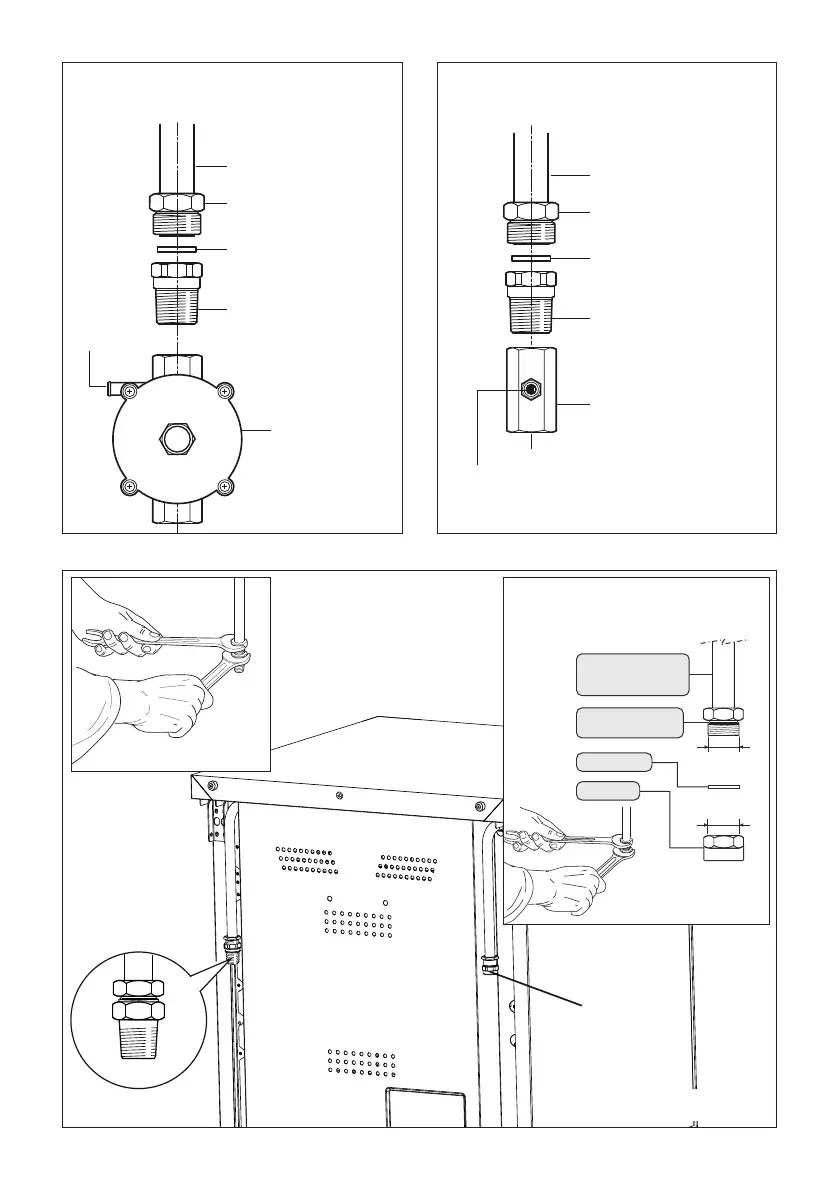

Figure 12bFigure 12a
Plug
Figure 13a
Figure 13b
Fitting the plug on the
inlet pipe terminal not used
Cooker manifold
(Right or left
inlet pipe)
Manifold
male pipe fitting
Gasket (#)
Plug (#)
(#) Already fitted on the
right or left inlet pipe
1/2” G cylindrical
(ISO 228-1) male
1/2” G cylindrical
(ISO 228-1) female
