2020
Cooker
manifold (right
or left inlet pipe)
Cooker
manifold (right
or left inlet pipe)
Manifold
male
pipe tting
Manifold
male
pipe tting
Fibre
washer (
*
)
Fibre
washer (#)
Connector
(
*
)
Plug (#)
1/2” G cylindrical
(ISO 228-1) male
20 mm
20 mm
10 mm
10 mm
1/2” G cylindrical
(ISO 228-1) male
1/2” G cylindrical
(ISO 228-1) female
1/2” G cylindrical
(ISO 228-1) female
1/2” BSP
female
Fitting the plug
on the inlet pipe
terminal not used
(
*
) Supplied with the appliance
in a separate kit
(#) Already tted on the
right or left inlet pipe

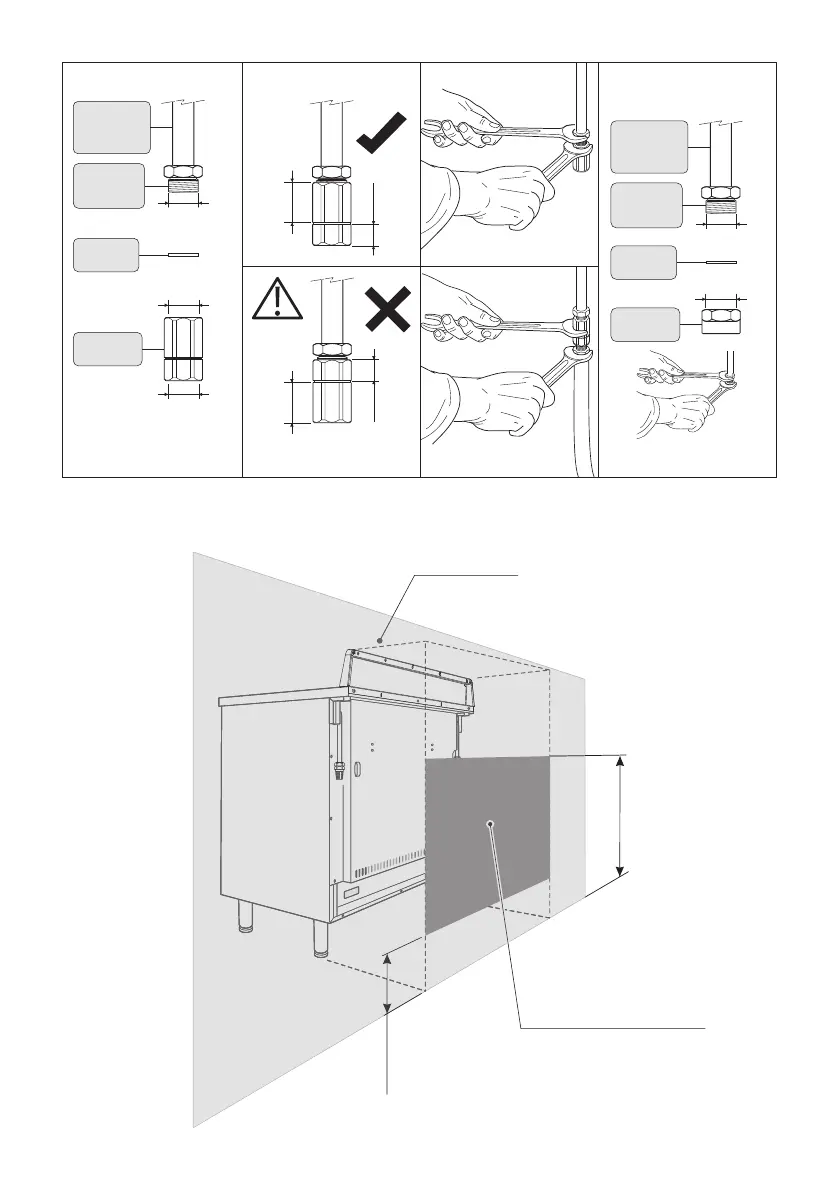

Fig. 2.4
Fig. 2.3
IMPORTANT PRESCRIPTIONS FOR GAS CONNECTION
700 mm
Rear wall
200 mm
Suggested area for
gas mains connection
