18
CONNECTING THE FEEDER CABLE
WARNING: If the power supply cable is damaged, it must be replaced only by an
authorised service agent in order to avoid a hazard.
To connect the feeder cable to the cooker it is necessary to:
• Remove the two screws that hold shield “A” behind the cooker.
• Open completely the cable clamp “D”.
• Position the U bolts onto terminal block “B” (fig. 2.1) according to the diagram in
figs. 2.2, 2.3.
• Insert the feeder cable into the cable clamp “D”. The supply cable must be of a
suitable size (see the section “Feeder cable section”).
• Connect the phase and earth cables to terminal “B” according figures 2.2, 2.3.
• Pull the feeder cable and block it with the cable clamp “D”.
• Re-mount shield “A”.
N.B. The earth conductor must be left about 3 cm longer than the others.
A
D
B

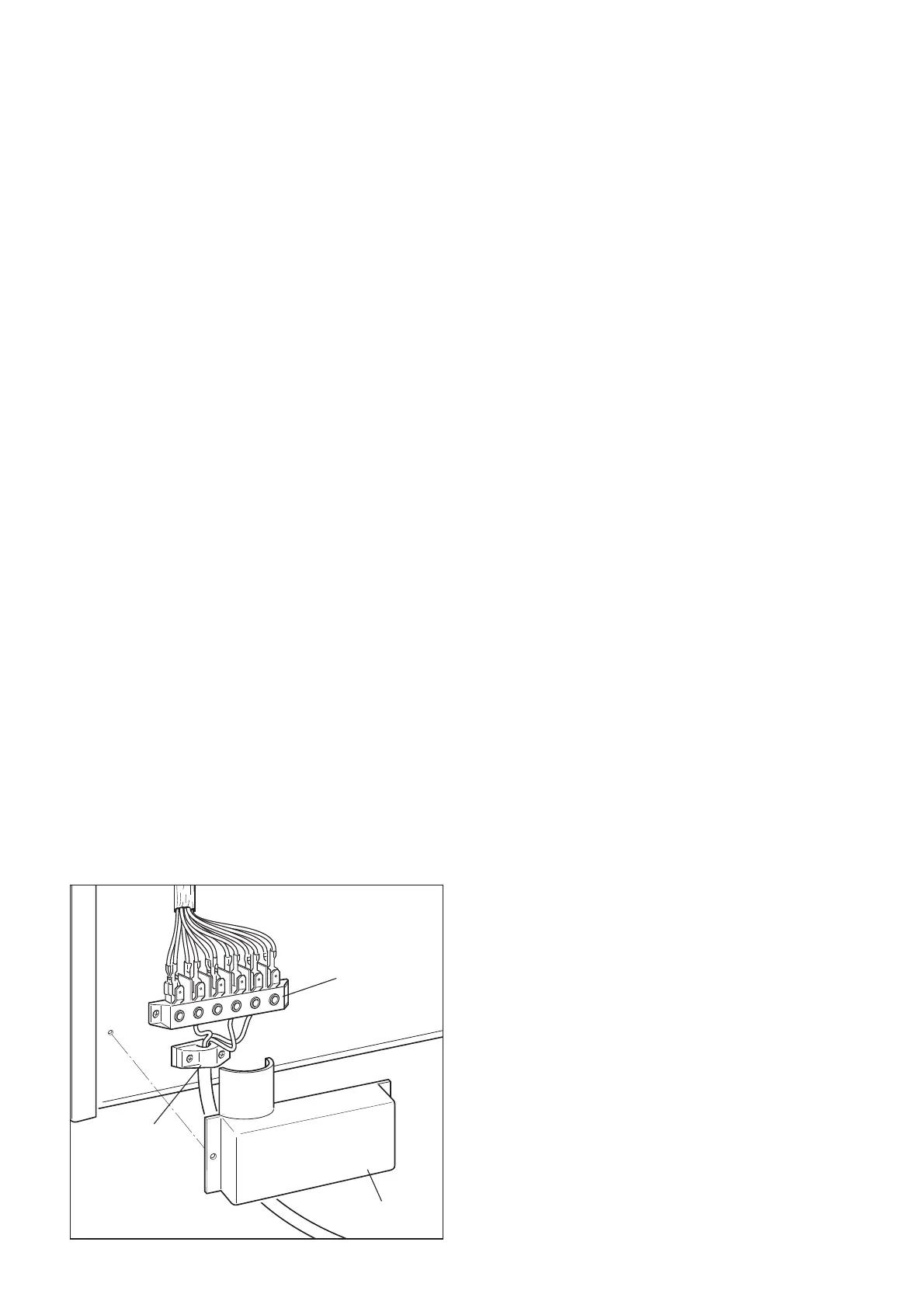

Fig. 2.1
FEEDER CABLE SECTION
³7<3(+55)´
9DF [PP
2
(**)
91DF [PP
2
(**)
91DF [PP
2
(**)
(**) Connection with wall box connection.
– Diversity factor applied.
– A diversity factor may be applied to the total loading of the appliance only by a suitably
TXDOL¿HGSHUVRQ
POWER SUPPLY
9DF :
