ELECTRICAL FEEDER CABLE REPLACEMENT
WARNING: If the power supply cable is damaged, it must be replaced only by an
authorised service agent in order to avoid a hazard.

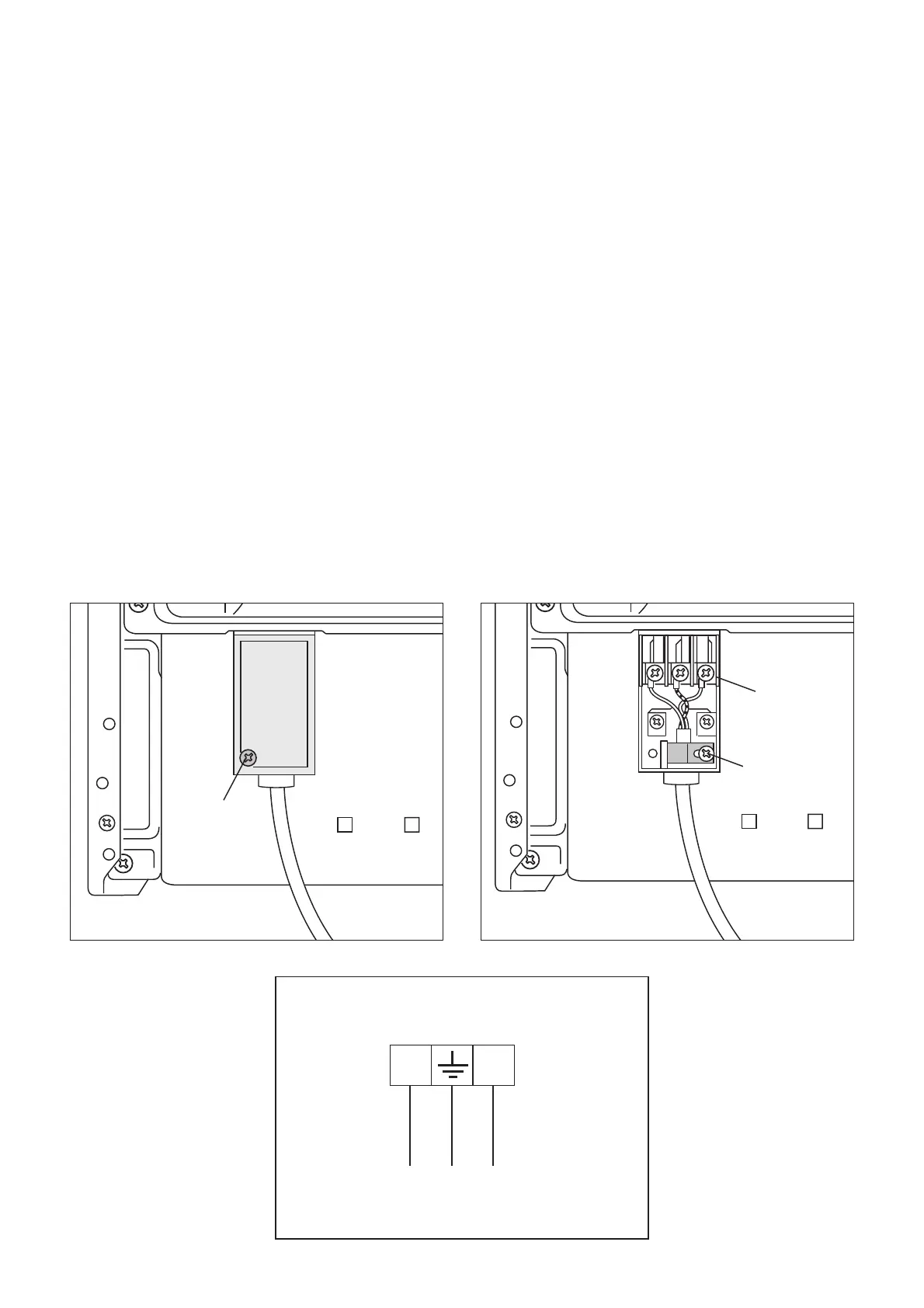

To connect the supply cable:
• Remove the screw securing the cover “A´RQWKHUHDURIWKHFRRNHU¿J
• Unscrew cable clamp “D´¿J
• Connect the wires to the terminal block “B´DVVKRZQLQWKHGLDJUDPLQ¿JXUH
• Take up any slack in the cable and secure with the cable clamp “D”.
• Replace the cover “A”.
NOTE: The earth conductor must be left about 3 cm longer than the others.
The operations must be executed by a qualified technician.
POWER SUPPLY
9+] :
FEEDER CABLE SPECIFICATIONS
Type “H05VV-F”
3 x 1,5 mm
2
A
D
B
Fig. 3.3Fig. 3.2
230 V
PE NL
1
(L
2
)
Fig. 3.4
9+]
