24 | The W-6000 Power Supply Module Dell PowerConnect W-6000 Controller | Installation Guide
Physical Description

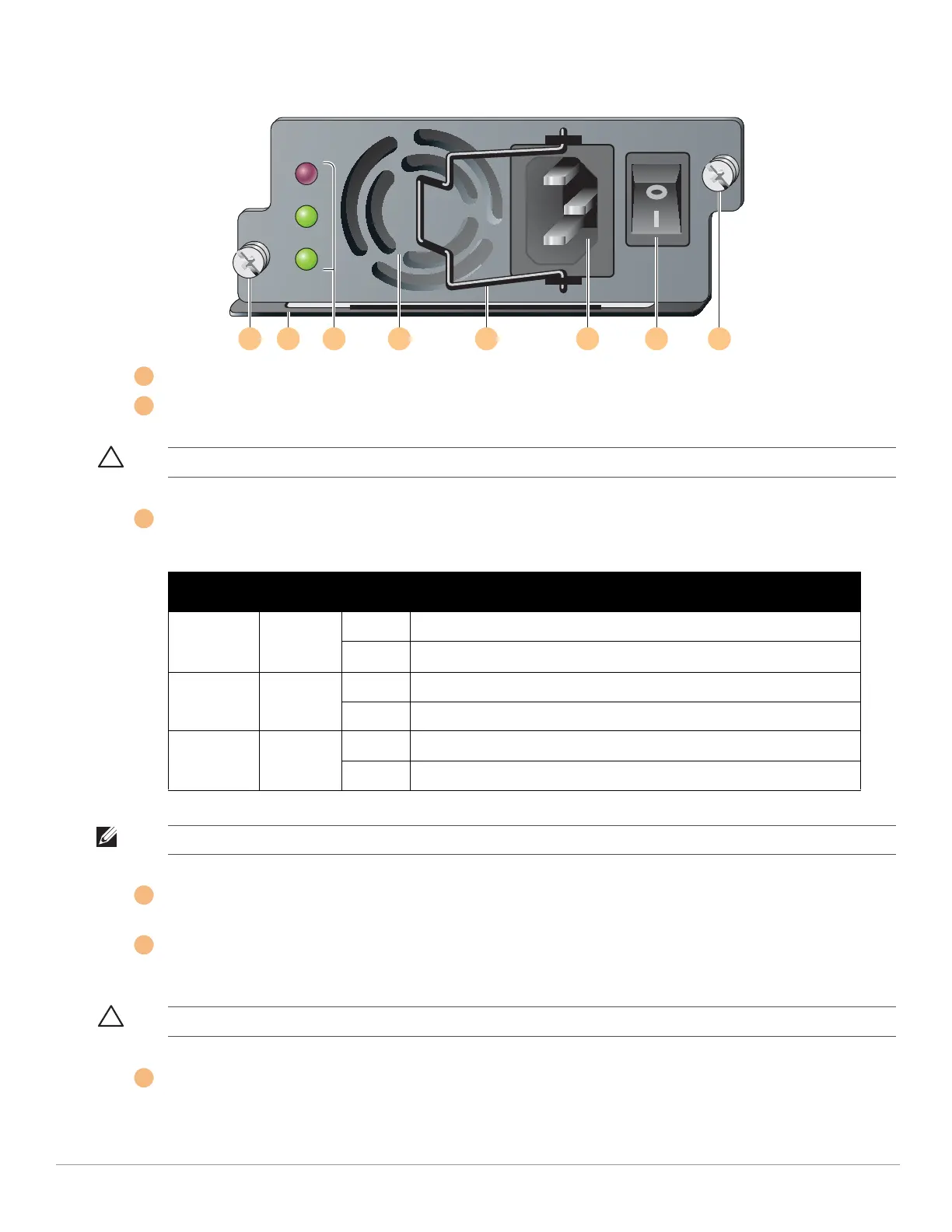

Figure 6 400W Power Supply
Module Fastening Screws: These two captive fastening screws hold the power supply in place in the chassis.
Module Handle: This handle is used for removing or inserting the module into the W-6000 chassis.
Indicator LEDs
Air Intake Vent: This air intake vent helps the internal fan cool the power supply during operation. To prevent
blockage, keep all material at least 10 cm (4 inches) from the vent.
Power Cord Retaining Clip: This clip fits over the power cord once the plug has been inserted into the power
input socket. It helps prevent the power cord from being pulled out accidentally.
Power Input Socket: This power socket accepts power cords with standard IEC320 connectors. For proper safety
and performance, the cord must be rated to 10 A and conform to grounded electrical standards in the country
where the product is used.
O.T.P
DC OK
AC OK
176541 2 3
6.5A MAX
1
2
CAUTION: Do not use the power supply handle to lift or move the W-6000 controller. Serious damage could result.
Table 5 400W Power Supply LEDs
LED Name Position Status Description
O.T.P.
(Over Temp.
Protection)
Top Off Power supply temperature is okay.
Red Power supply fan has failed or temperature is too high.
DC OK Middle Green DC power output is okay.
Red DC power output is not within tolerance.
AC OK Bottom Green AC power input is okay.
Red AC power input is not within tolerance.
3
NOTE: In addition to the LEDs, the power supply status can be viewed using the CLI.
4
5
CAUTION: Do not use the power cord retaining clip to remove the power supply module, or to lift or move the W-6000.
6
