Dell PowerConnect W-6000 Controller | Installation Guide Installing the Chassis | 13
c. Push the cage nut in towards the rail while rotating the tool up and pulling the tool back toward you until
the top lip of the cage nut snaps into position.
d. Continue installing the W-6000 controller as normal.
Position the chassis in the equipment rack and align the brackets’ mounting holes with the corresponding
holes in your rack frame.

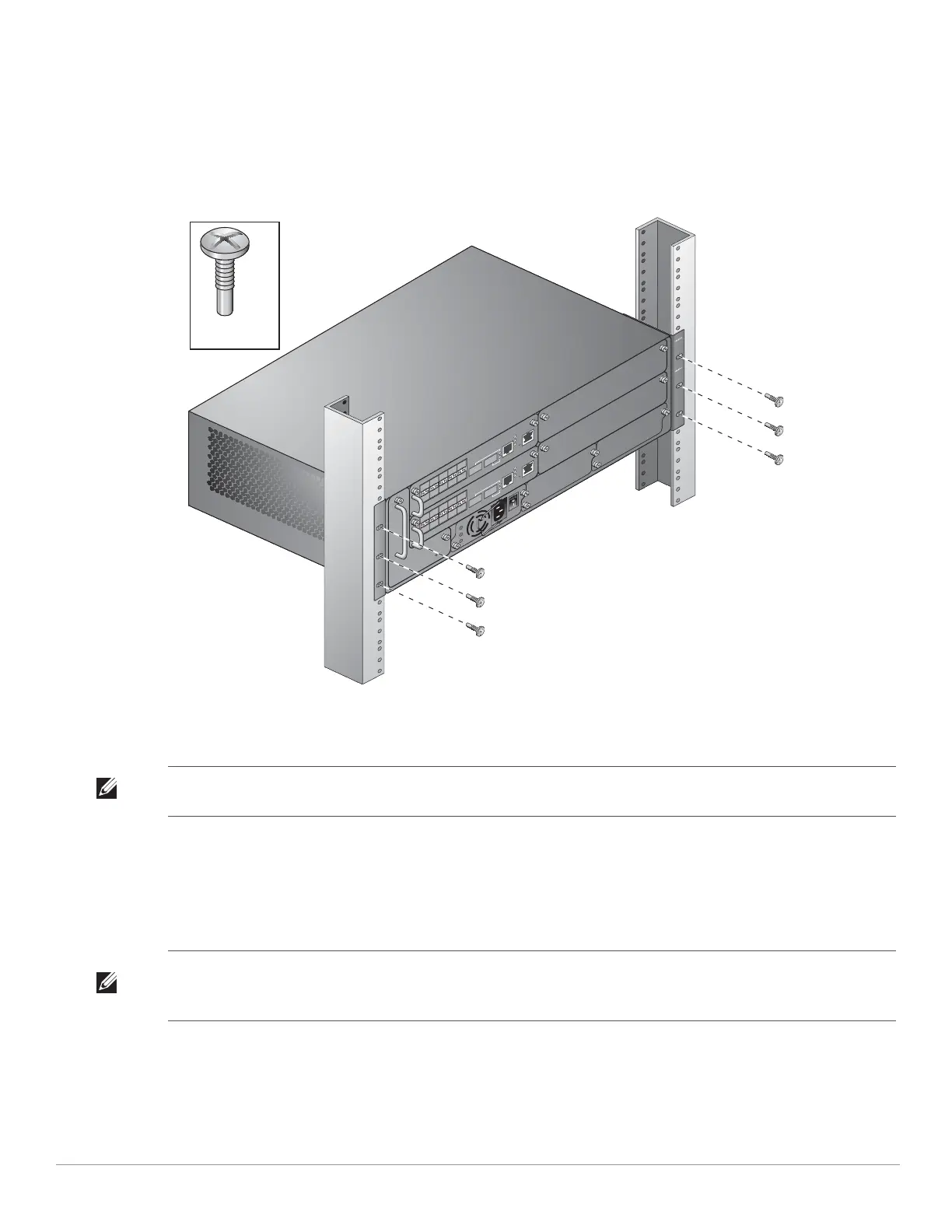

Figure 4 Mounting the W-6000 controller
Use a Phillips or cross-head screwdriver to secure the chassis to the rack with three 12-24 screws (for telecom
rack) or three M6 x 20mm (for server rack) for each mounting bracket.
Adding W-6000M3 Controller Modules
If you have received your modules separately from the chassis, or wish to expand the system with additional
modules, see the subsequent chapters of this manual for specific instructions on installing each module.
x 6
12-24
screws
NOTE: Some cabinets require different screws which are not included. Verify that you use the correct screws or fasteners for your
rack system.
NOTE: By adding modules, you are increasing the total power load. Depending on the modules installed, you may be required to
add power supplies to the chassis and/or increase the capacity of your site’s electrical systems. For details, see “Power
Management” on page 25.
