50 Setting up the monitor
Connecting the monitor for the USB-C Multi-Stream Transport (MST) function
A personal computer is connected to two monitors in an initial OFF power state, and the personal computer power state is in
synchronized with the Monitor 1 power button. When you press Monitor 1 or personal computer power button, both Monitor 1 and
personal computer turn on. Meanwhile, Monitor 2 will remains off. You need to manually press the power button on Monitor 2 to turn
it on.
System power state (ON)
Monitor 2Monitor 1
DP in
USB-C
DP out
USB-C

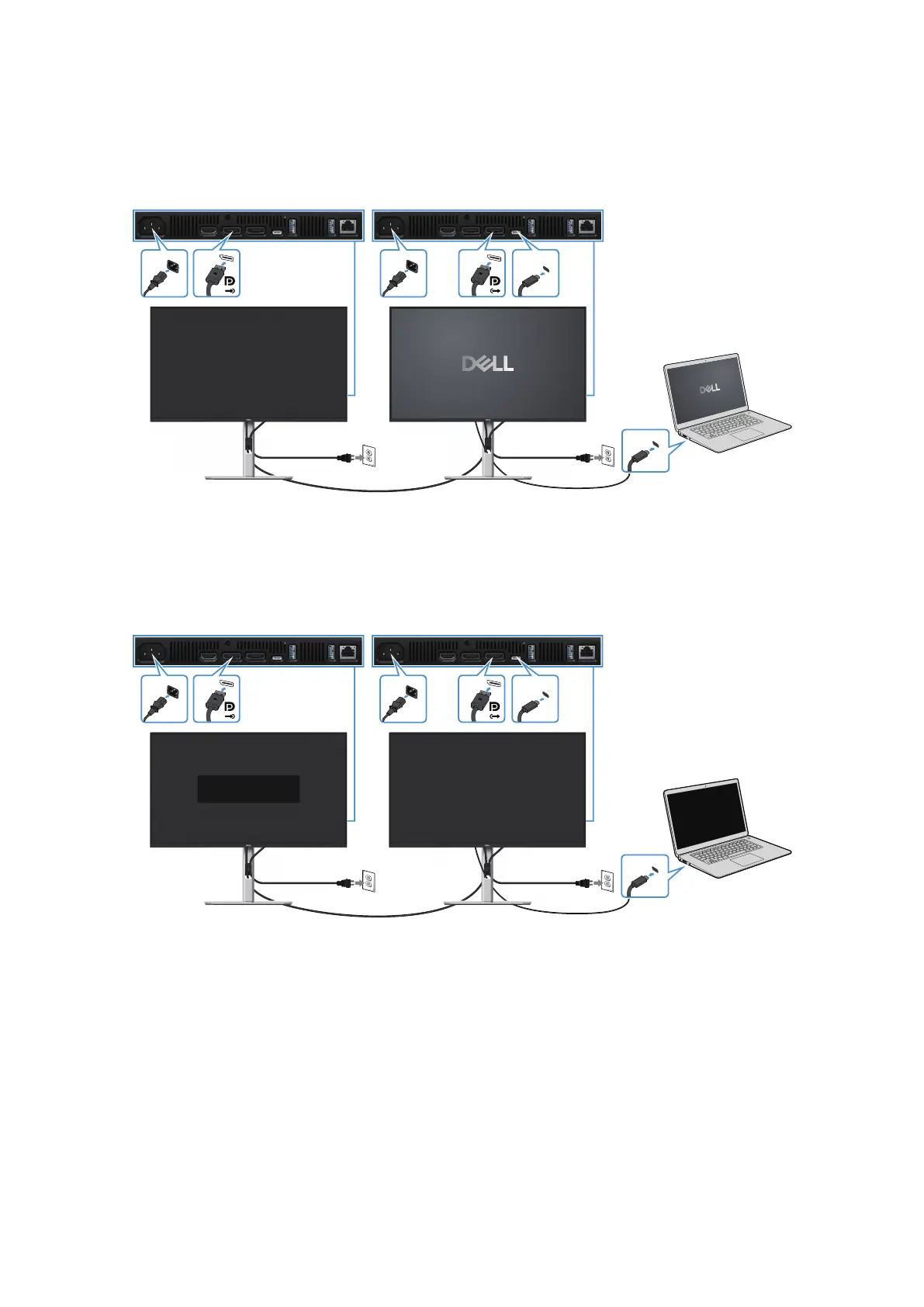

Figure 46. Connecting the monitor for USB-C MST function
Similarly, a personal computer is connected to two monitors in an initial ON power state, and the personal computer power state is
in synchronized with the Monitor 1 power button. When you press Monitor 1 or personal computer power button, both Monitor 1 and
personal computer turn off. Meanwhile, Monitor 2 is in Standby mode. You need to manually press the power button on Monitor 2 to
turn off.
System power state (OFF)
Monitor 2Monitor 1
DP in
USB-C
DP out
USB-C
No USB-C Cable
The display will go into Standby mode in 4 minutes.
www.dell.com/P2725XX
Figure 47. Personal computer is connected to two monitors in an initial ON power state
