26 Setting up the monitor
Setting up the monitor
Connecting the stand
NOTE: The stand is not attached when the monitor is shipped from the factory.
NOTE: The following instructions are applicable only for the stand that was shipped with your monitor. If you are attaching a
stand that you purchased from any other source, follow the setup instructions that were included with the stand.

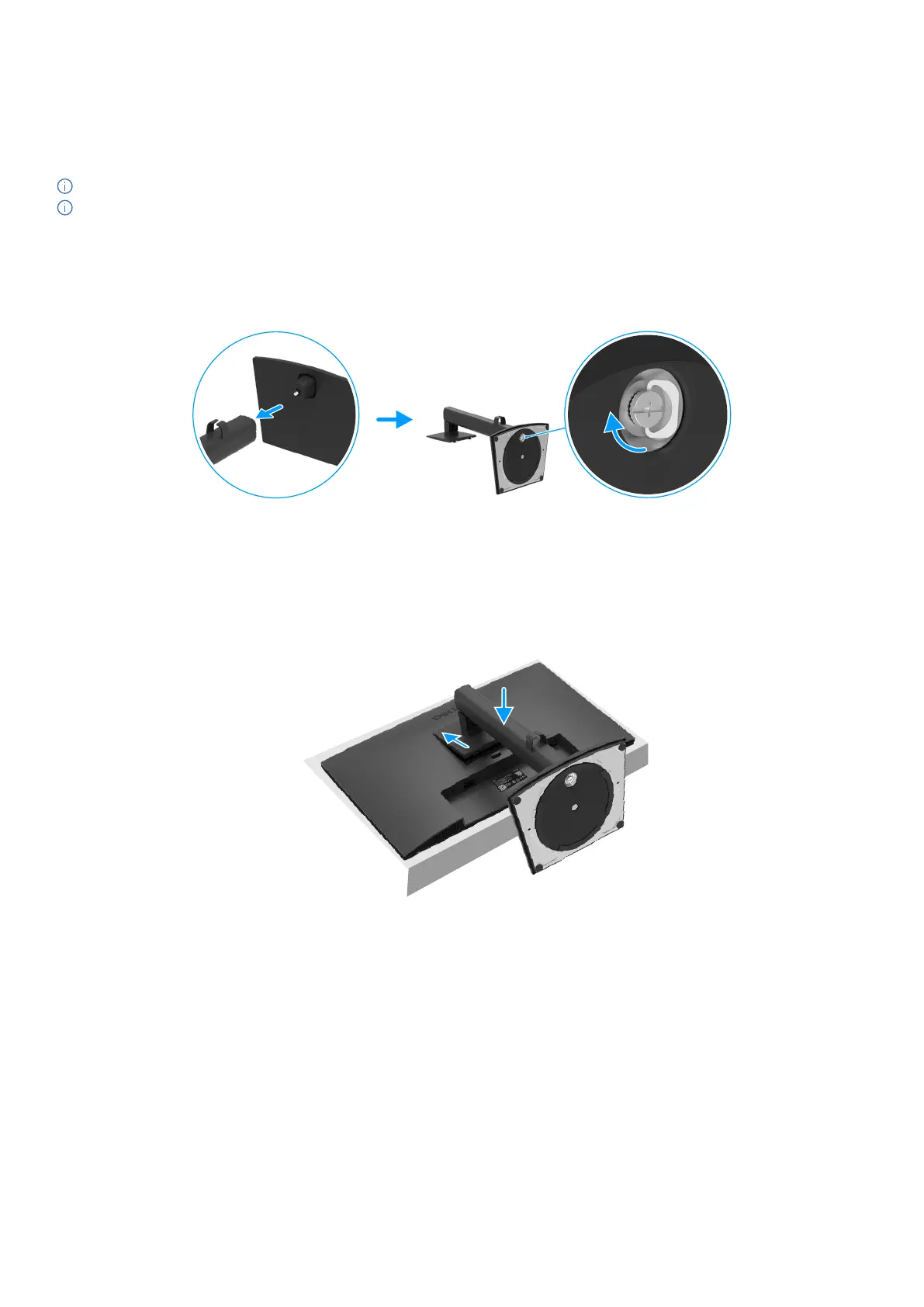

1. Assemble the stand riser to stand base:
a. Insert the stand base blocks fully into the stand slot.
b. Lift the screw handle and turn the screw clockwise.
Figure 12. Assemble the stand
2. Attach the stand assembly to the monitor:
a. Fit the two tabs on the upper part of the stand to the groove on the back of the display.
b. Press the stand down till it snaps into place.
Figure 13. Attach the stand
