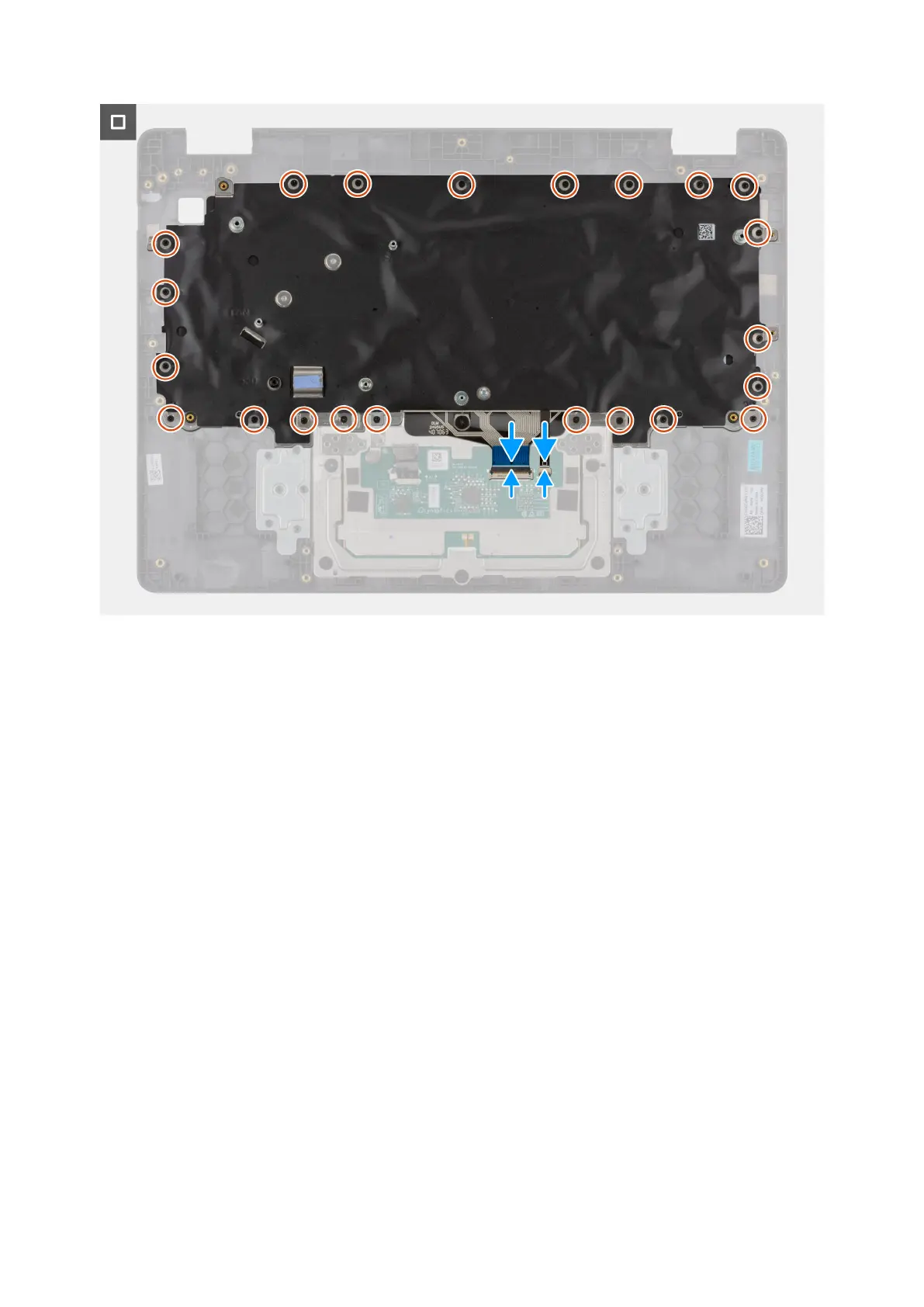

Figure 55. Installing the keyboard
Steps
1. Align the screw holes on the keyboard with the screw holes on the palm-rest assembly.
2. Connect the keyboard cable and the keyboard backlit cable to the connector on the touchpad.
3. Replace the 22 screws (M2x2.2) that secure the keyboard to the palm-rest assembly.
Next steps
1. Install the power-adapter port.
2. Install the system board.
3. Install the I/O board.
4. Install the display assembly.
5. Install the heat sink.
6. Install the fan.
7. Install the wireless card.
8. Install the SSD.
9. Install the memory module.
10. Install the battery.
11. Install the base cover.
12. Follow the procedure in After working inside your computer.
Removing and installing Field Replaceable Units (FRUs)
85
