9. Follow the procedure in After working inside your computer.
USB Type-C module
Removing the USB Type-C module
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the memory module.
5. Remove the SSD.
6. Remove the wireless card.
7. Remove the fan.
8. Remove the heat sink.
9. Remove the display assembly.
10. Remove the system board.
About this task
NOTE:
The system board can be removed with the heat sink attached in order to simplify the procedure and preserve the
thermal bond between the system board and the heat sink.
The following images indicate the location of the USB Type-C module and provide a visual representation of the removal
procedure.

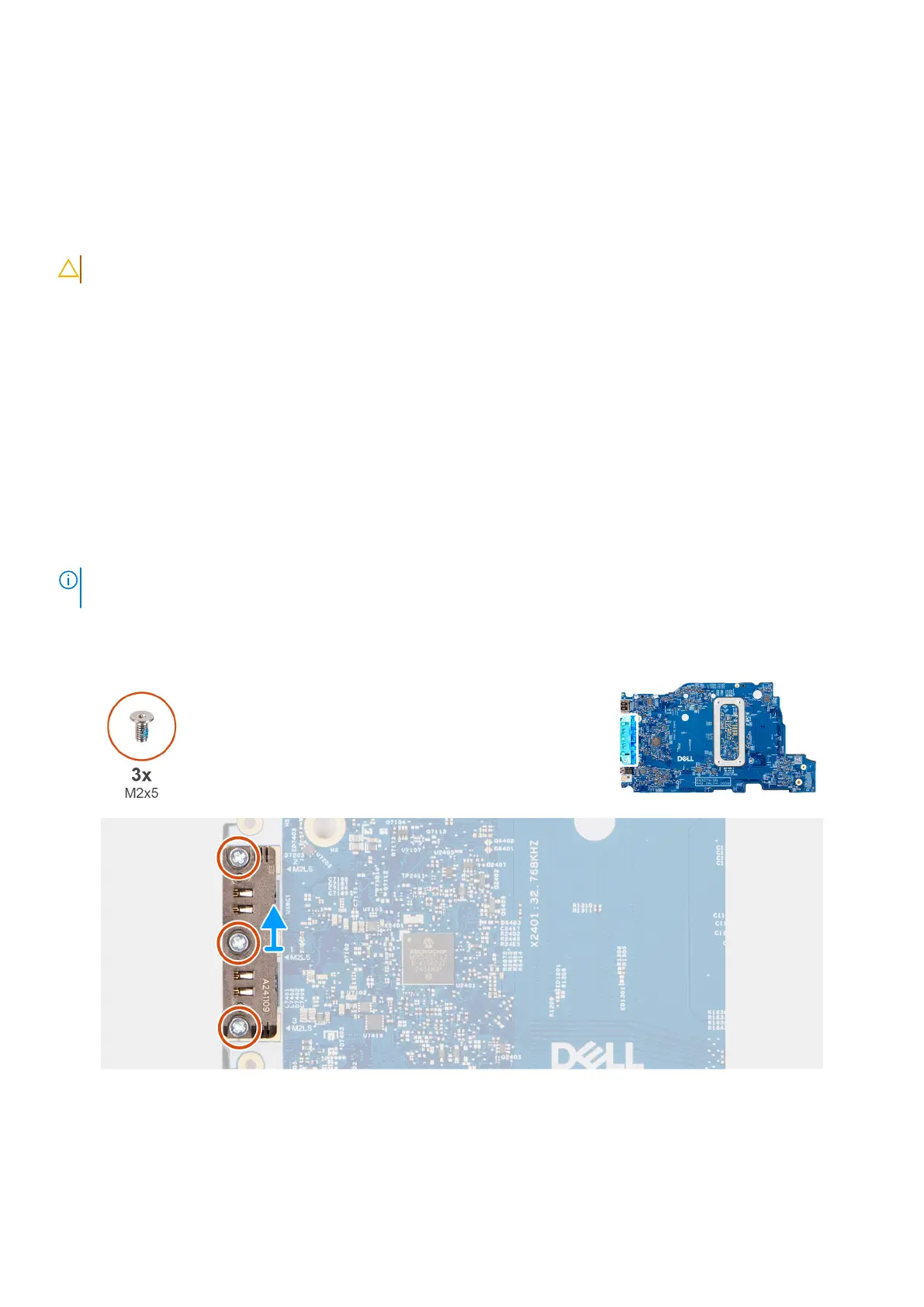

Figure 48. Removing the USB Type-C module
Steps
1. Turn the system board over and remove the three screws (M2x5) that secure the USB Type-C module to the bottom side of
the system board.
78
Removing and installing Field Replaceable Units (FRUs)
