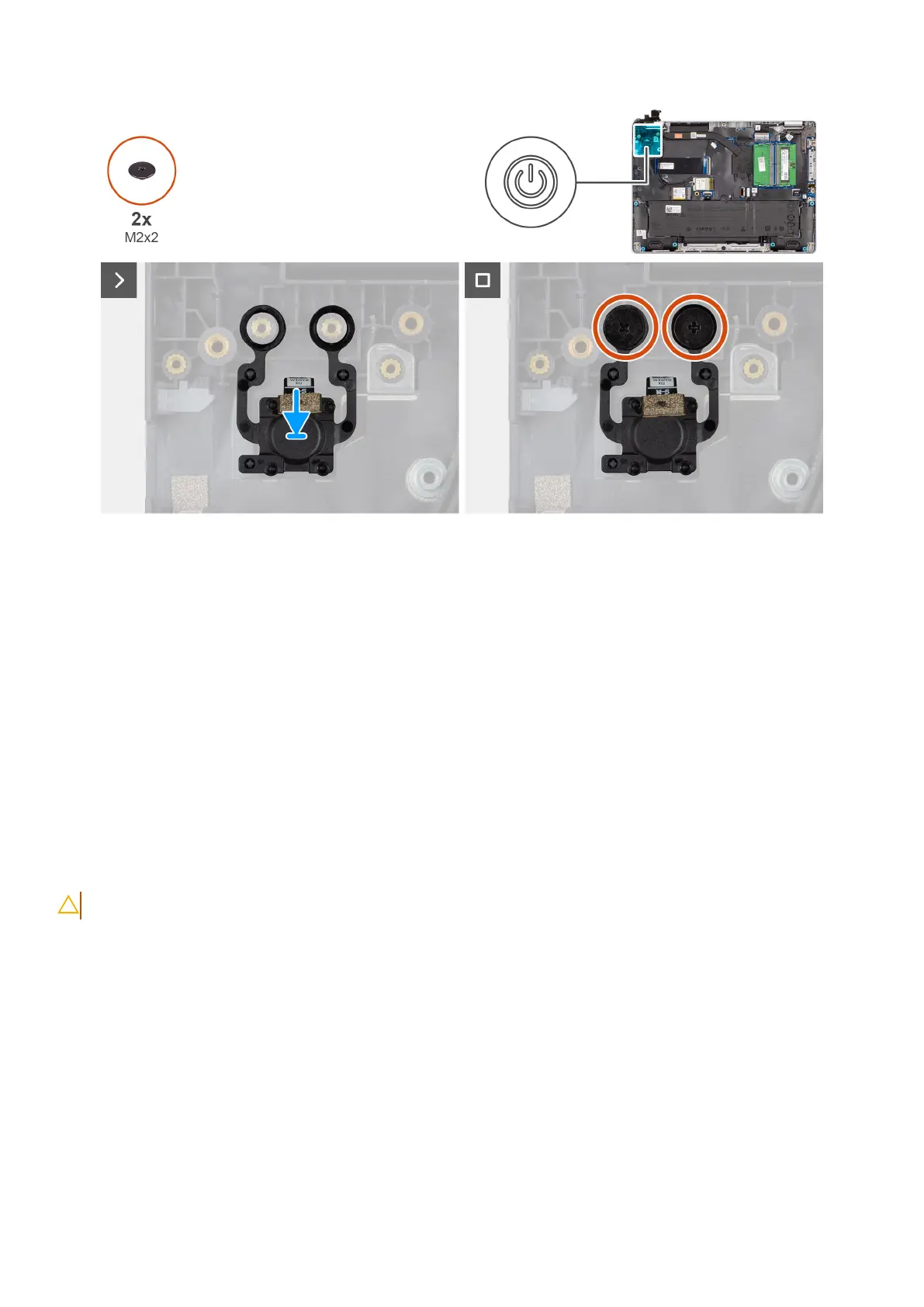

Figure 41. Installing the power button with a fingerprint reader
Steps
1. Align the screw holes on the power button with the screw holes on the palm-rest assembly.
2. Replace the two screws (M2x2) that secure the power button to the palm-rest assembly.
Next steps
1. Install the I/O board.
2. Install the fan.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
System board
Removing the system board
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the memory module.
5. Remove the SSD.
6. Remove the wireless card.
7. Remove the fan.
8. Remove the heat sink.
9. Remove the display assembly.
Removing and installing Field Replaceable Units (FRUs)
71
