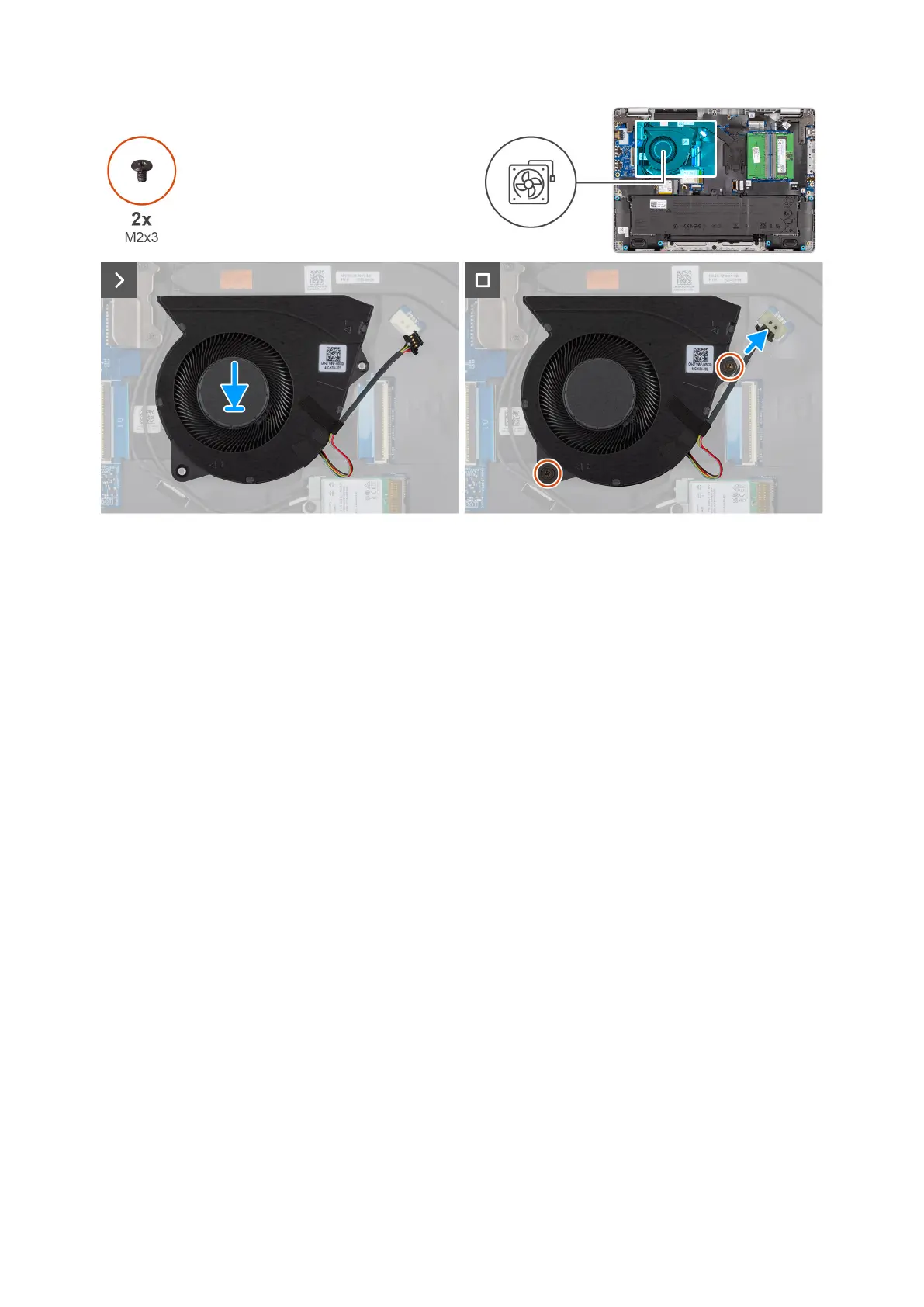

Figure 31. Installing the fan
Steps
1. Place and align the screw holes on the fan with the screw holes on the system board.
2. Replace the two screws (M2x3) that secures the fan to the system board.
3. Connect the fan cable to the connector (FAN1) on the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
60
Removing and installing Customer Replaceable Units (CRUs)
