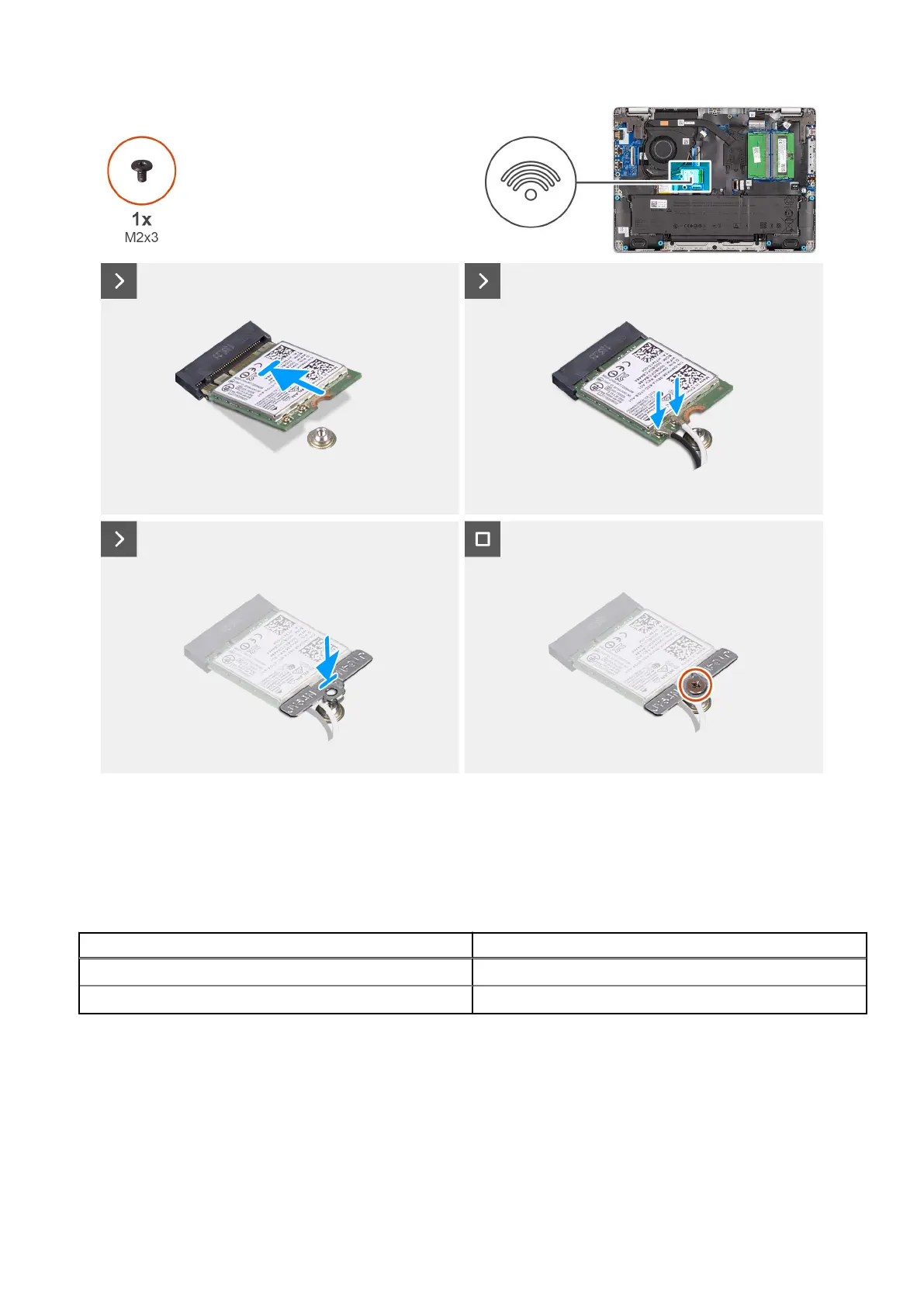

Figure 26. Installing the wireless card
Steps
1. Connect the WLAN-antenna cables to the respective connectors on the wireless card.
The following table provides the antenna-cable color scheme for the wireless card that is supported for your computer.
Table 32.
WLAN-antenna cable color scheme
Connectors on the wireless card Antenna-cable color
Main - White triangle (△) White cable
Auxiliary - Solid triangle (▲) Black cable
2. Align the notch on the wireless card with the tab on the wireless-card slot.
3. Slide the wireless card at an angle into the wireless-card slot.
4. Place the wireless-card bracket on the wireless card.
5. Align the screw hole on the wireless-card bracket with the screw hole on the system board.
6. Replace the screw (M2x3) that secures the wireless-card bracket and the wireless card to the system board.
