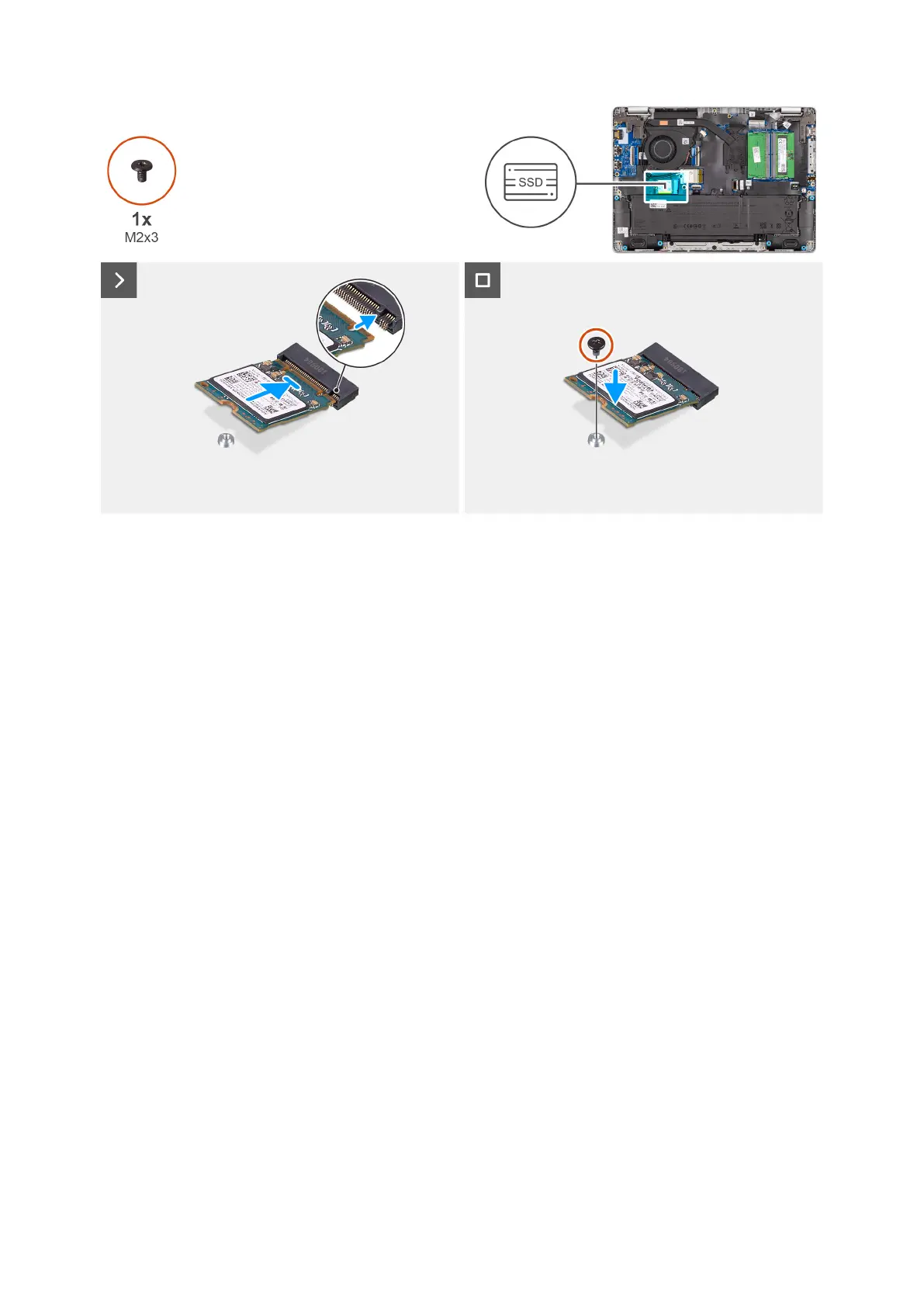

Figure 24. Installing the SSD
Steps
1. Align the notch on the SSD with the tab on the M.2 SSD slot on the system board.
2. Slide the M.2 2230 solid state drive into the SSD slot on the system board.
3. Align the screw hole on the SSD with the screw hole on the palm-rest assembly.
4. Replace the screw (M2x3) that secures the SSD to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Wireless Local Area Network (WLAN) card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
53
