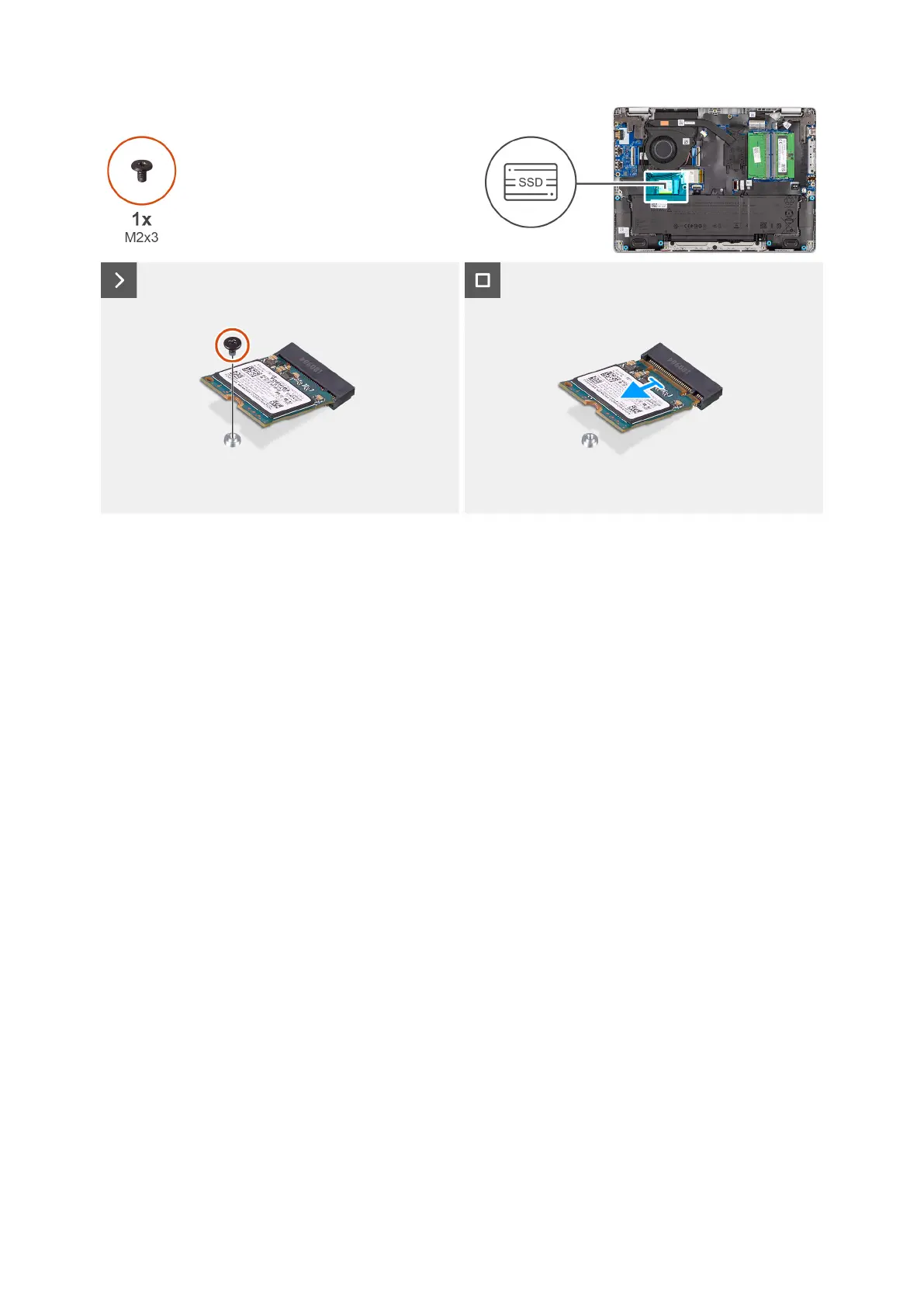

Figure 23. Removing the SSD
Steps
1. Remove the screw (M2x3) that secures the SSD to the system board.
2. Slide and remove the SSD from the M.2 slot on the system board.
Installing the solid state drive (SSD)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the solid state drive (SSD) and provides a visual representation of the installation
procedure.
52
Removing and installing Customer Replaceable Units (CRUs)
