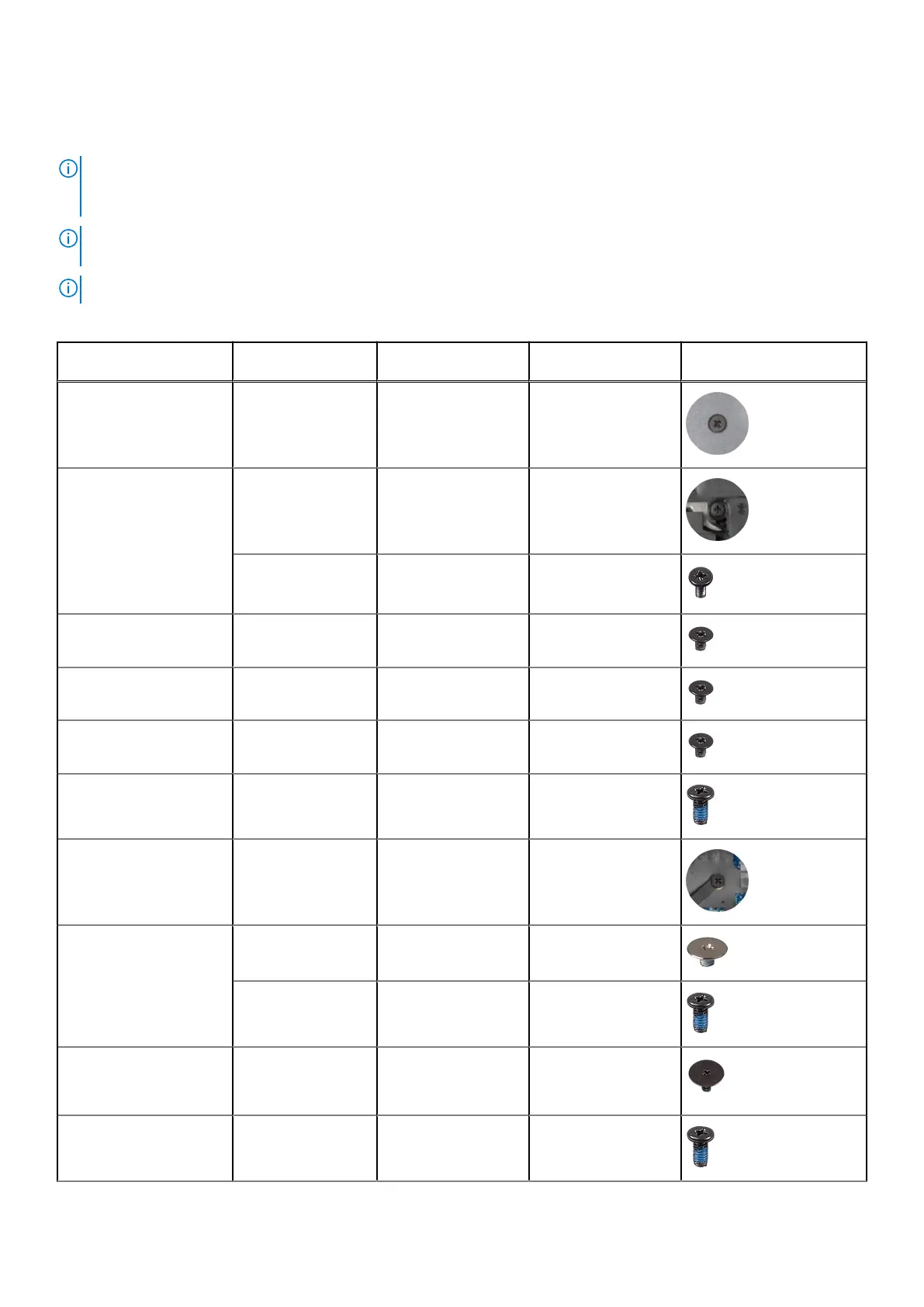

Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.
Table 31. Screw listî
Component Screw type Quantity Screw torque
strength
Screw image
Base cover M2.5x6 (Captive) 9 2.55 kgf-cm to 3.45
kgf-cm
Battery M2x3 (Captive) 4 1.36 Kgf-cm to 1.84
Kgf-cm
M2x4 1 1.98 Kgf-cm to 2.42
Kgf-cm
Solid state drive M2x3 1 1.36 Kgf-cm to 1.84
Kgf-cm
Wireless card M2x3 1 1.36 Kgf-cm to 1.84
Kgf-cm
Fan M2x3 2 1.36 Kgf-cm to 1.84
Kgf-cm
Power-adapter port M2.5x5 2 2.55 kgf-cm to 3.45
kgf-cm
Heat sink M2x5.4 (Captive) 4 1.36 Kgf-cm to 1.84
Kgf-cm
I/O board M2.5x5 2 2.55 kgf-cm to 3.45
kgf-cm
M2x3 3 1.36 Kgf-cm to1.84
Kgf-cm
Power button/Power
button with fingerprint
reader (optional)
M2x2 2 1.36 Kgf-cm to 1.84
Kgf-cm
System board M2.5x5 2 2.55 kgf-cm to 3.45
kgf-cm
Working inside your computer 35
