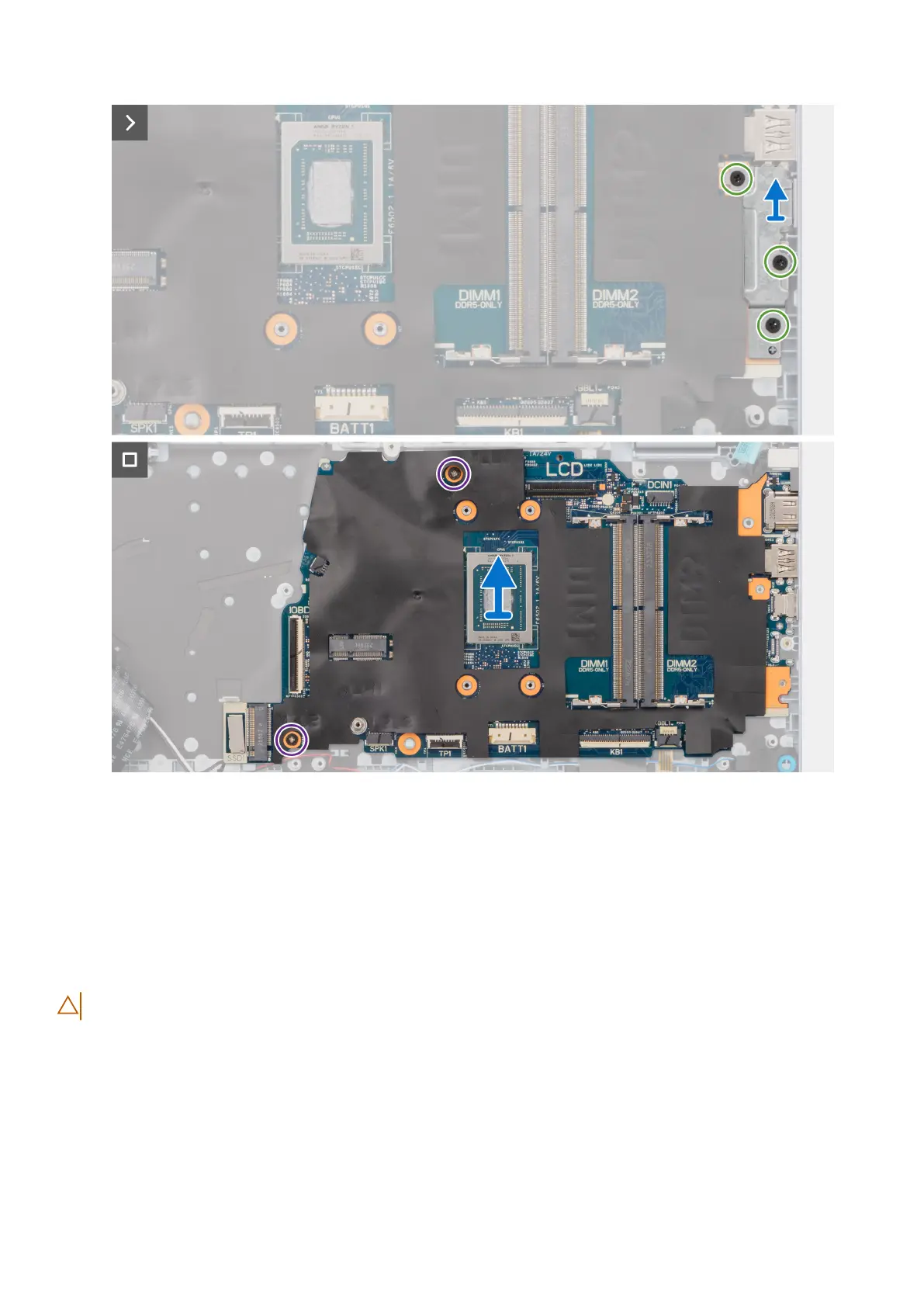

Figure 81. Removing the system board (for computers shipped with a plastic chassis)

5. Lift and remove the USB Type-C port bracket from the system board.

6. Carefully lift and remove the system board at angle, from the palm-rest and keyboard assembly, to clear the ports from the

port slots.

Installing the system board (for computers shipped with a plastic

chassis)

CAUTION:

The information in this installation section is intended for authorized service technicians only.

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the connectors on your system board.

Removing and installing Field Replaceable Units (FRUs)

93
