Installing the camera (only for computers shipped with a plastic

chassis)

CAUTION: The information in this installation section is intended for authorized service technicians only.

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following images indicate the location of the camera module and provide a visual representation of the installation

procedure.

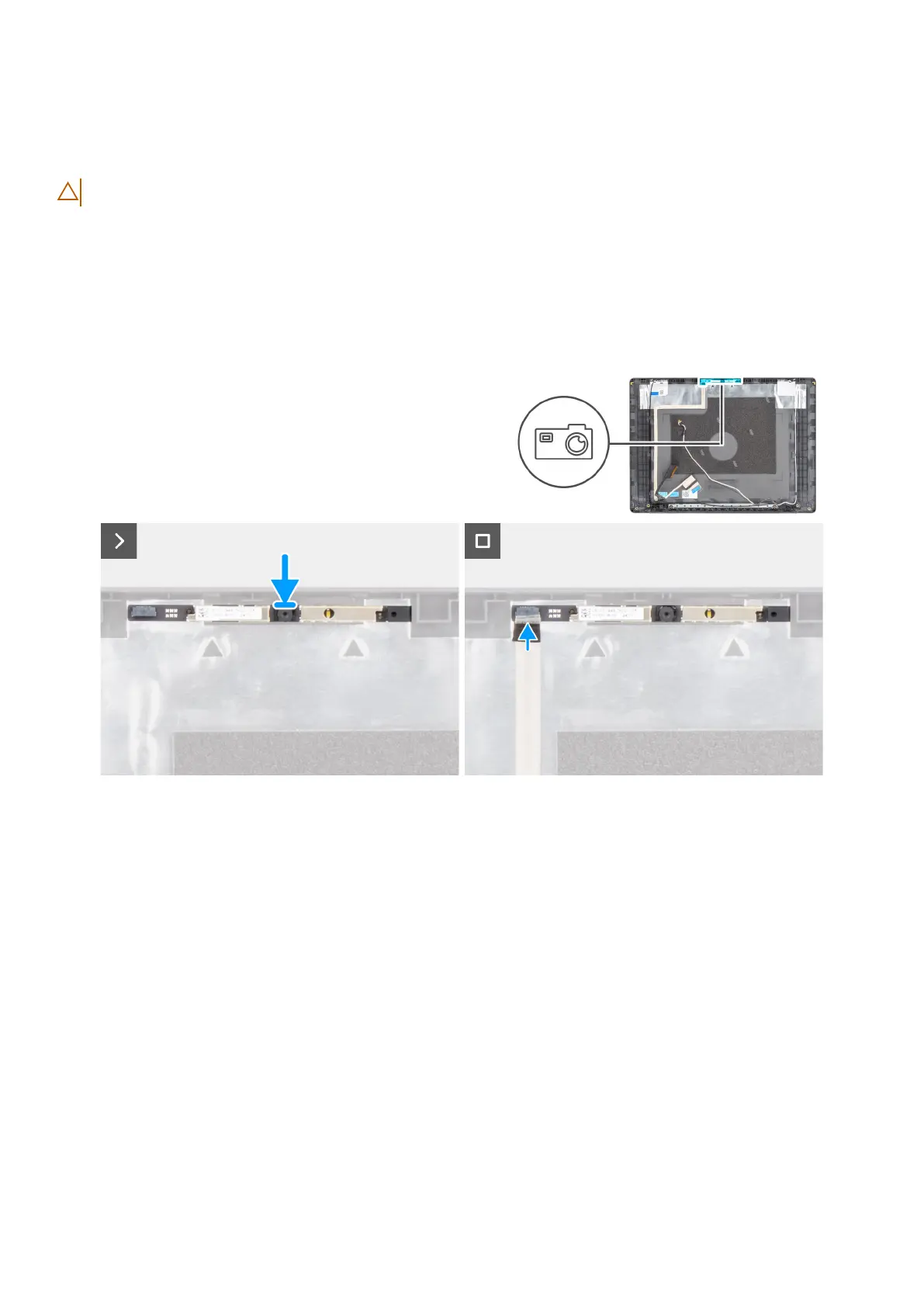

Figure 75. Installing the camera

Steps

1. Using the alignment post, adhere the camera module on the display back-cover and antenna assembly.

2. Connect the display eDP cable to the connector on the camera module.

Next steps

1. Install the display panel.

2. Install the display bezel.

3. Install the display assembly.

4. Install the wireless card.

5. Install the solid state drive.

6. Install the base cover (plastic chassis).

7. Follow the procedure in After working inside your computer.

86

Removing and installing Field Replaceable Units (FRUs)
