Camera

Removing the camera (only for computers shipped with a plastic

chassis)

CAUTION: The information in this removal section is intended for authorized service technicians only.

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover (plastic chassis).

3. Remove the solid state drive.

4. Remove the wireless card.

5. Remove the display assembly.

6. Remove the display bezel.

7. Remove the display panel.

About this task

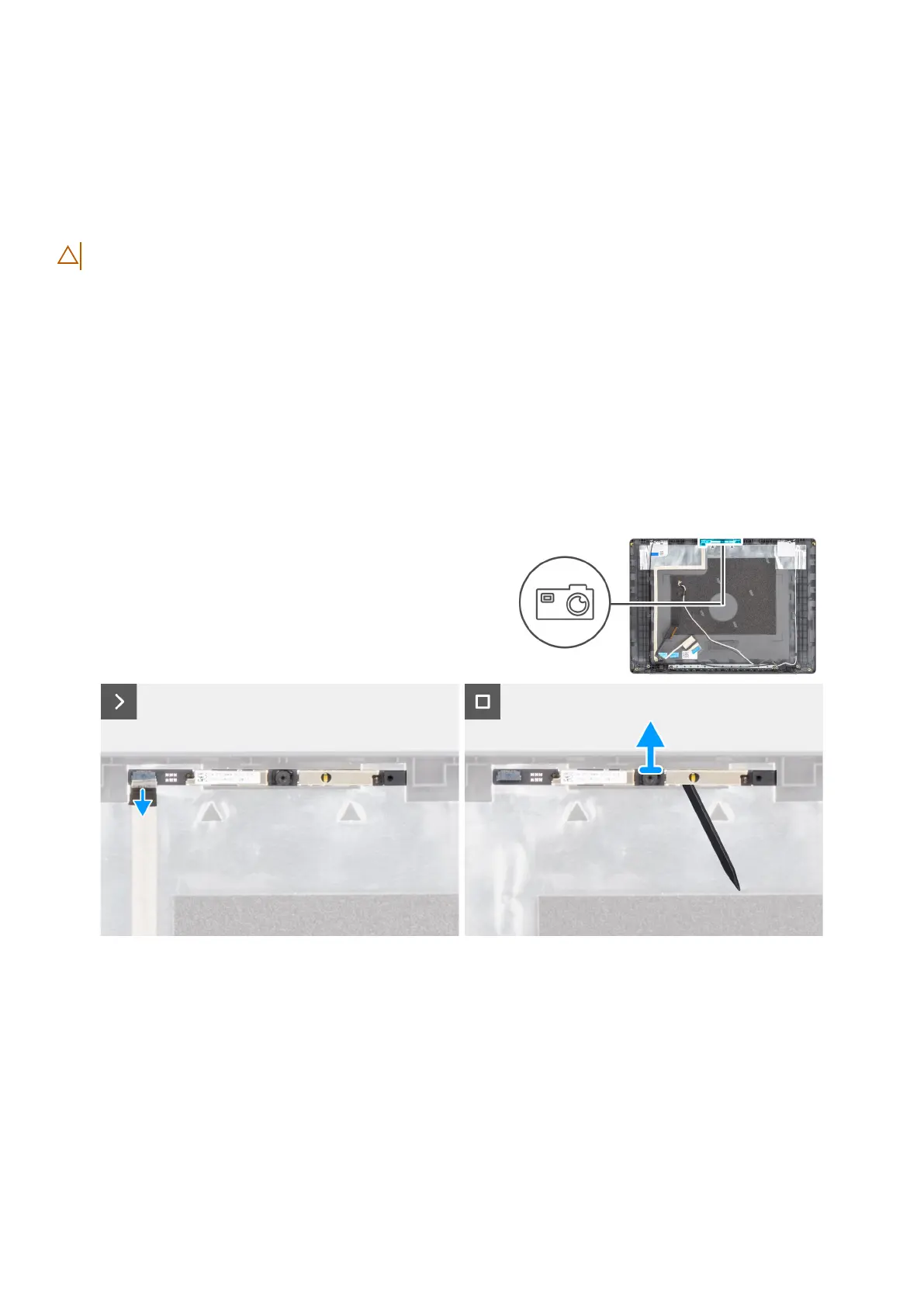

The following images indicate the location of the camera module and provide a visual representation of the removal procedure.

Figure 74. Removing the camera

Steps

1. Disconnect the display eDP cable from the connector on the camera module.

2. Using a plastic scribe, gently pry the camera off the display back-cover and antenna assembly.

3. Remove the camera module from the display assembly.

Removing and installing Field Replaceable Units (FRUs)
