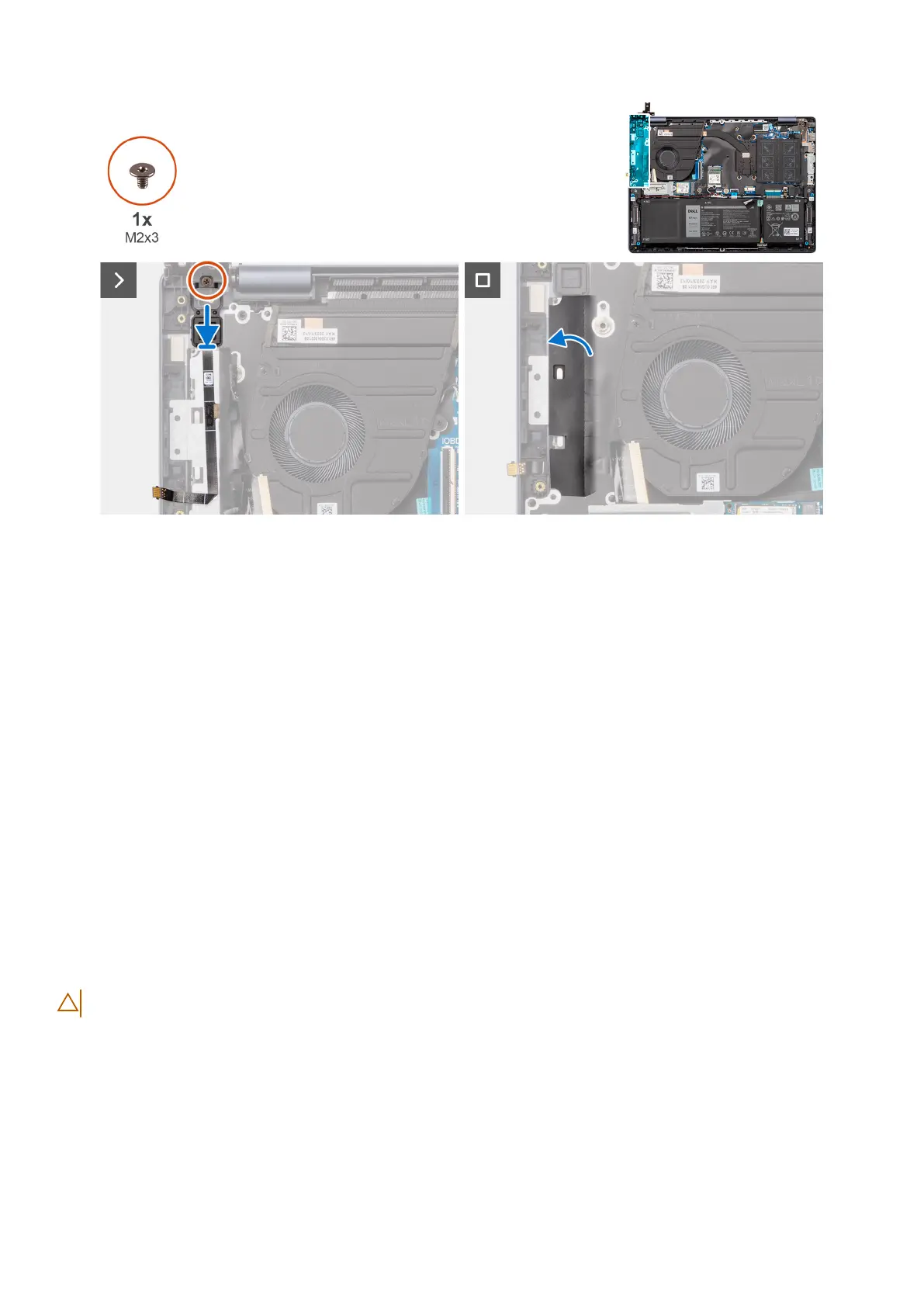

Figure 50. Installing the power button with the optional fingerprint reader

Steps

1. Place the power button with the optional fingerprint reader in the slot on the palm-rest and keyboard assembly.

2. Align the screw hole on the power button with the optional fingerprint reader to the screw hole on the palm-rest and

keyboard assembly.

3. Replace the screw (M2x3) to secure the power button with the optional fingerprint reader to the palm-rest and keyboard

assembly.

4. Adhere the tape to secure the fingerprint-reader cable to the palm-rest and keyboard assembly.

5. Turn over the Mylar sheet to secure the fingerprint-reader cable.

Next steps

1. Install the I/O board.

2. Install the fan.

3. Install the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

4. Follow the procedure in After working inside your computer.

Display assembly

Removing the display assembly

CAUTION:

The information in this removal section is intended for authorized service technicians only.

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

3. Remove the solid state drive.

4. Remove the wireless card.

Removing and installing Field Replaceable Units (FRUs)

63
