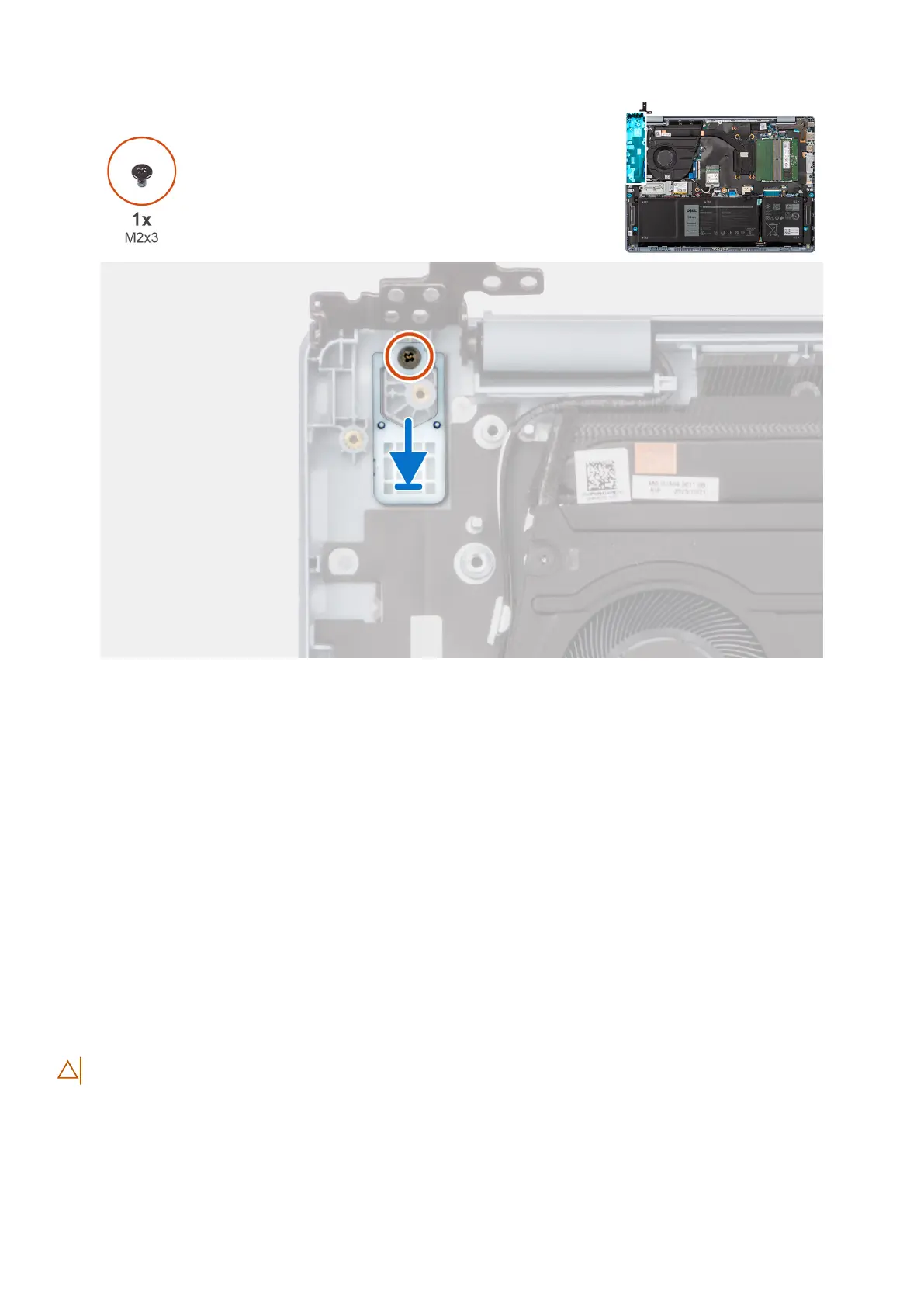

Figure 48. Installing the power button

Steps

1. Place the power button in the slot on the palm-rest and keyboard assembly.

2. Align the screw hole on the power button with the screw hole on the palm-rest and keyboard assembly.

3. Replace the screw (M2x3) to secure the power button to the palm-rest and keyboard assembly.

Next steps

1. Install the I/O board.

2. Install the fan.

3. Install the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

4. Follow the procedure in After working inside your computer.

Power button with optional fingerprint reader

Removing the power button with the optional fingerprint reader

CAUTION:

The information in this removal section is intended for authorized service technicians only.

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

3. Remove the fan.

Removing and installing Field Replaceable Units (FRUs)

61
