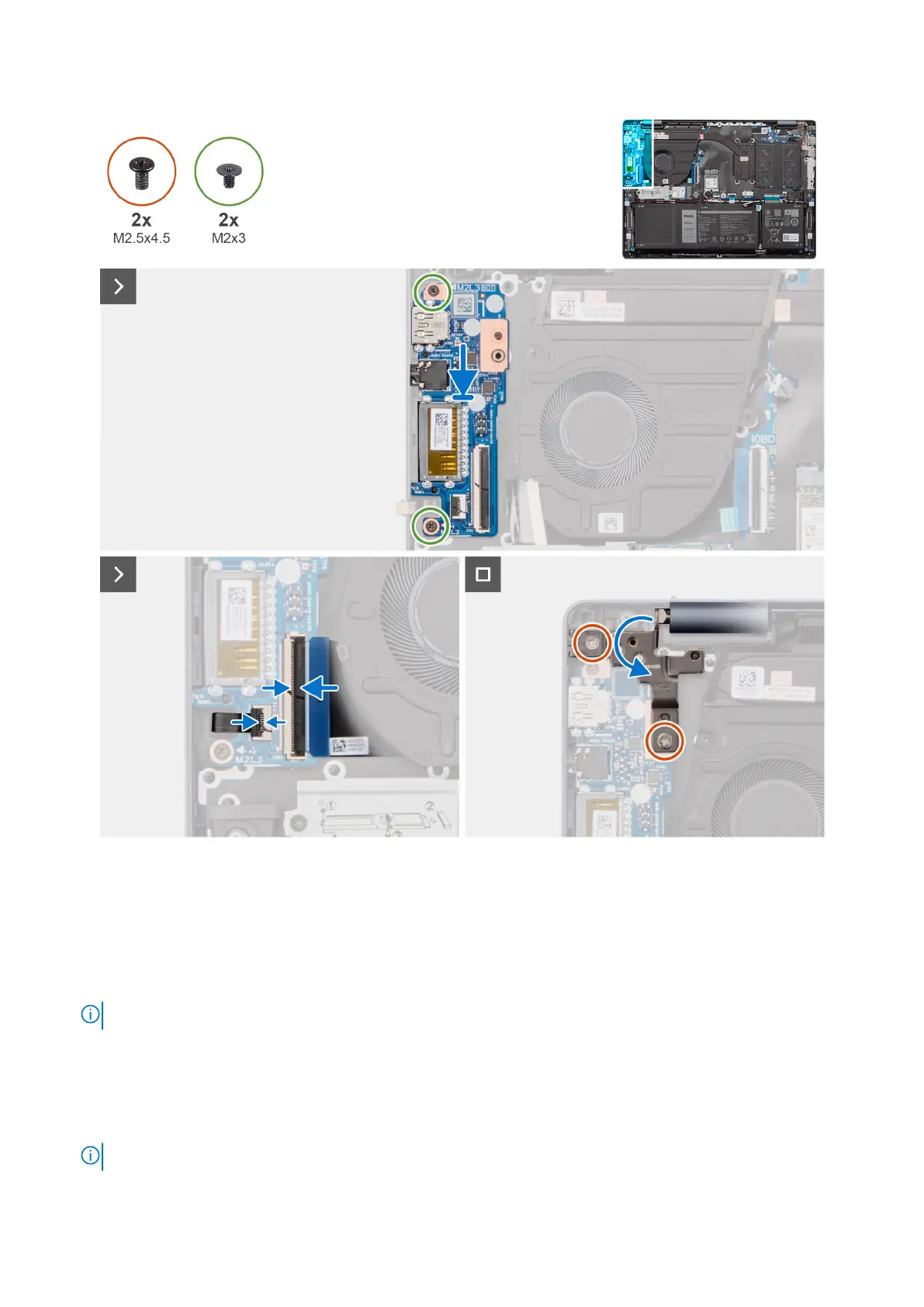

Figure 46. Installing the I/O board (for computers shipped with an aluminum chassis)

Steps

1. Align the ports on the I/O board with the port slots and place the I/O board on the palm-rest and keyboard assembly.

2. Align the screw holes on the I/O board with the screw holes on the palm-rest and keyboard assembly.

3. Replace the two screws (M2x3) to secure the I/O board to the palm-rest and keyboard assembly.

4. Connect the fingerprint-reader cable to the connector on the I/O board and close the latch.

NOTE:

This step applies only to computers shipped with a power button with fingerprint reader installed.

5. Connect the I/O-board cable to the connector on the I/O board and close the latch.

6. Close the left display hinge to align the screw holes on the left display hinge with the screw holes on the I/O board and the

palm-rest and keyboard assembly.

7. Replace the two screws (M2.5x4) to secure the left display hinge to the I/O board and the palm-rest and keyboard

assembly.

NOTE:

This step applies only to computers shipped with a plastic chassis.

58 Removing and installing Field Replaceable Units (FRUs)
