I/O board

Removing the I/O board

CAUTION: The information in this removal section is intended for authorized service technicians only.

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

3. Remove the fan.

About this task

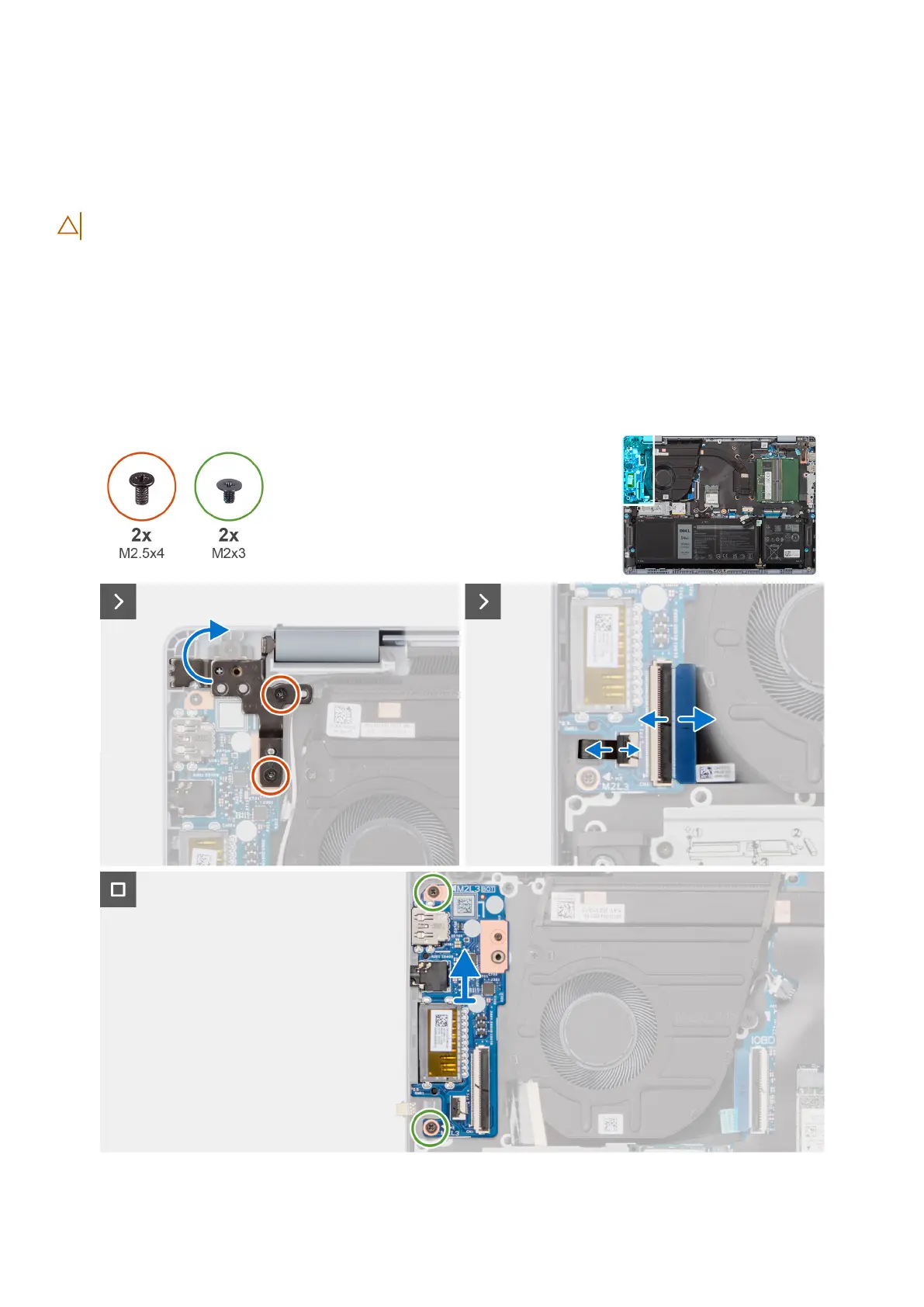

The following images indicate the location of the I/O board and provide a visual representation of the removal procedure.

Figure 43. Removing the I/O board (for computers shipped with a plastic chassis)

54

Removing and installing Field Replaceable Units (FRUs)
