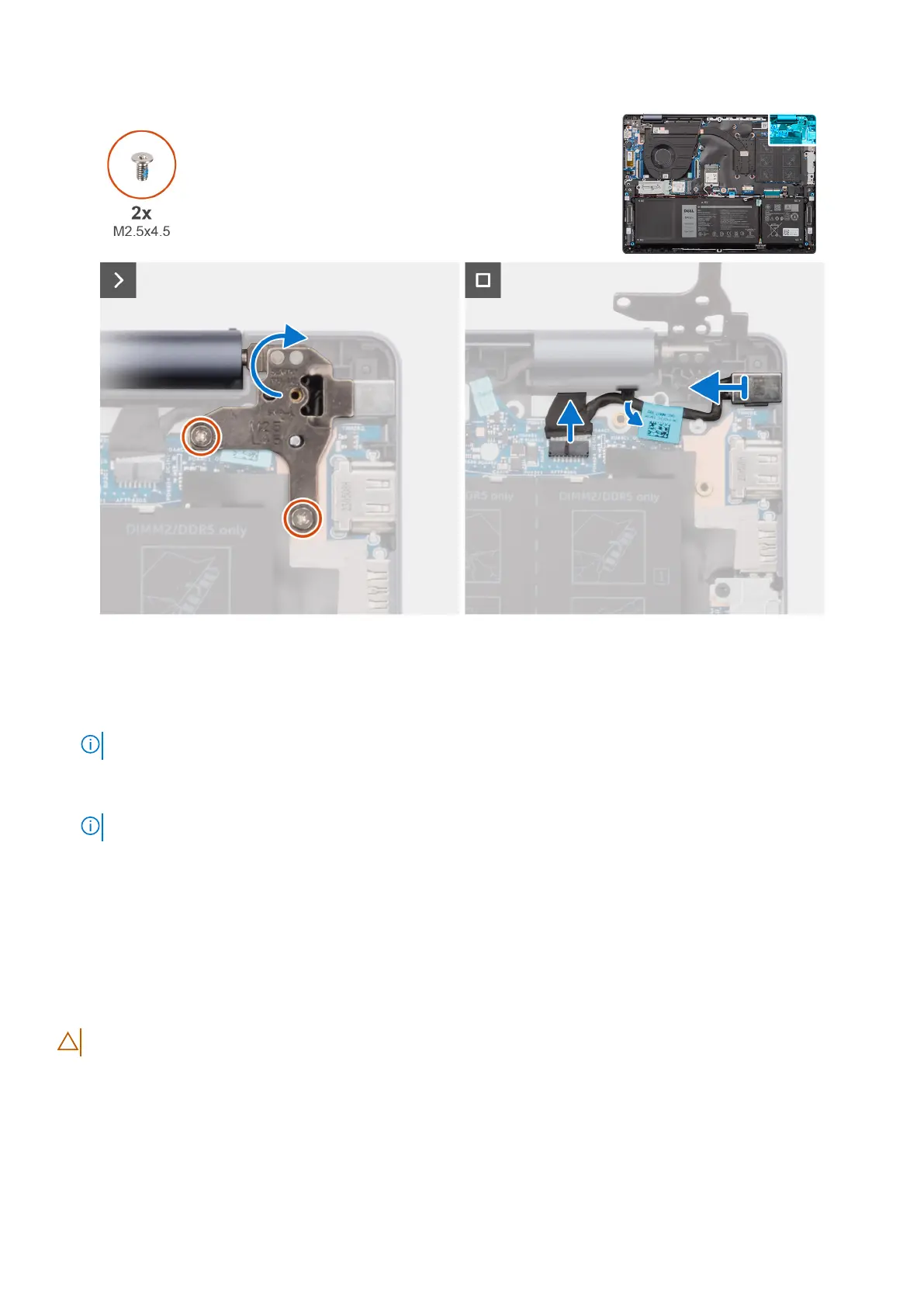

Figure 38. Removing the power-adapter port (for computers shipped with an aluminum chassis)

Steps

1. Remove the two screws (M2.5x4) that secure the right display hinge to the system board and the palm-rest and keyboard

assembly.

NOTE:

This step applies only to computers shipped with a plastic chassis.

2. Remove the two screws (M2.5x4.5) that secure the right display hinge to the system board and the palm-rest and keyboard

assembly.

NOTE:

This step applies only to computers shipped with an aluminum chassis.

3. Using a plastic scribe, lift the right display hinge to an angle of 90 degrees from the palm-rest and keyboard assembly to

access the power-adapter port.

4. Disconnect the power-adapter port cable from the connector (DCIN1) on the system board.

5. Remove the power-adapter port cable from the routing guide on the palm-rest and keyboard assembly.

6. Lift the power-adapter port off the palm-rest and keyboard assembly.

Installing the power-adapter port

CAUTION:

The information in this installation section is intended for authorized service technicians only.

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

Removing and installing Field Replaceable Units (FRUs)

49
