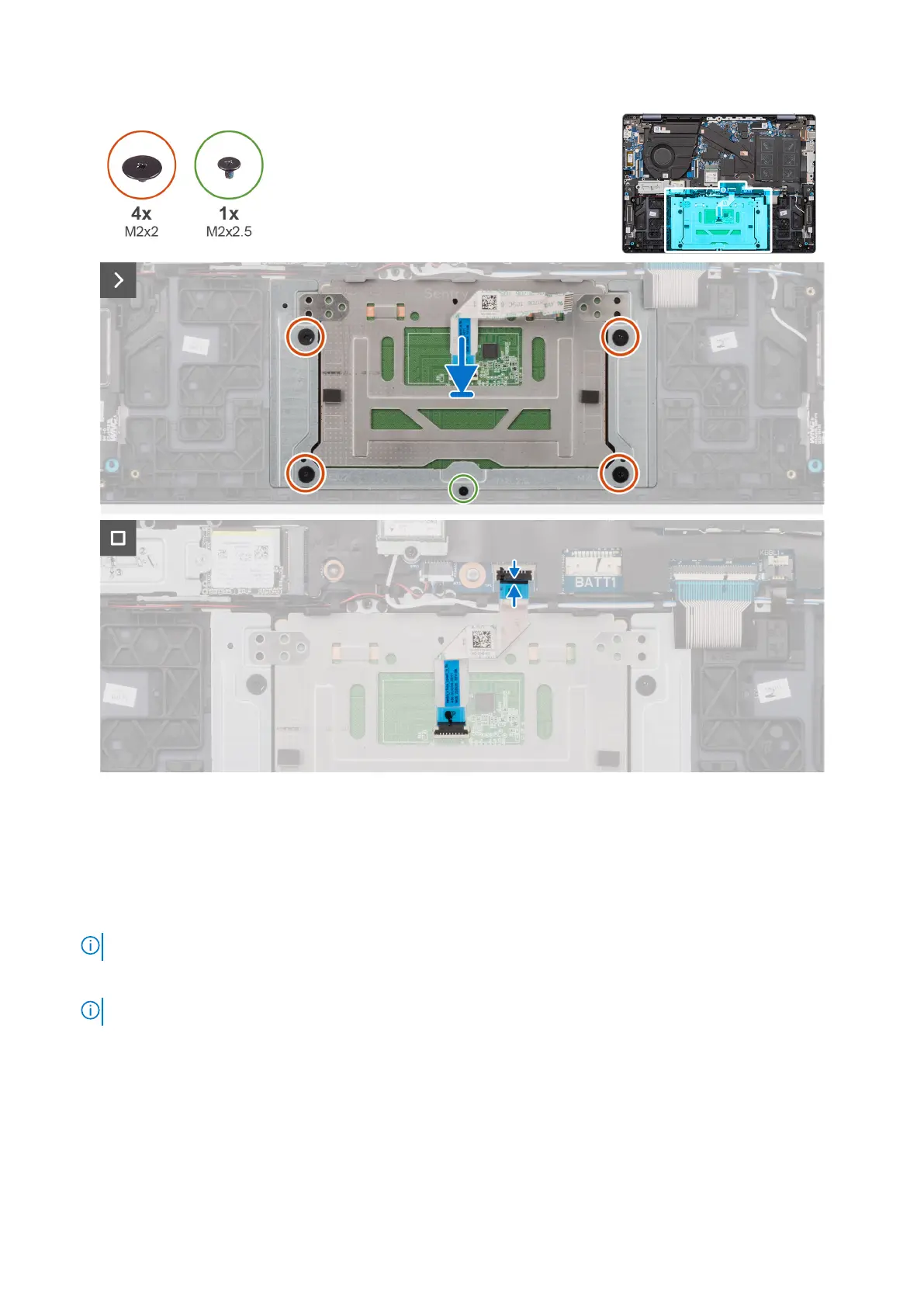

Figure 36. Installing the touchpad (for computers shipped with an aluminum chassis)

Steps

1. Align and place the touchpad in the slot on the palm-rest and keyboard assembly.

2. Align the screw holes on the touchpad with the screw holes on the palm-rest and keyboard assembly.

3. Replace the four screws (M1.6x2.5) and the two screws (M2x1.8) to secure the touchpad to the palm-rest and keyboard

assembly.

NOTE:

This step applies only to computers shipped with a plastic chassis.

4. Replace the four screws (M2x2) and the screw (M2x2.5) to secure the touchpad to the palm-rest and keyboard assembly.

NOTE:

This step applies only to computers shipped with an aluminum chassis.

5. Connect the touchpad cable to the connector on the touchpad and close the latch.

6. Connect the touchpad cable to the connector (TP1) on the system board and close the latch.

Next steps

1. Install the 3-cell battery or the 4-cell battery, whichever is applicable.

2. Install the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

3. Follow the procedure in After working inside your computer.
