2. Remove the two screws (M2x4) that secure the fan to the palm-rest and keyboard assembly.

3. Lift the fan off the palm-rest and keyboard assembly.

Installing the fan

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

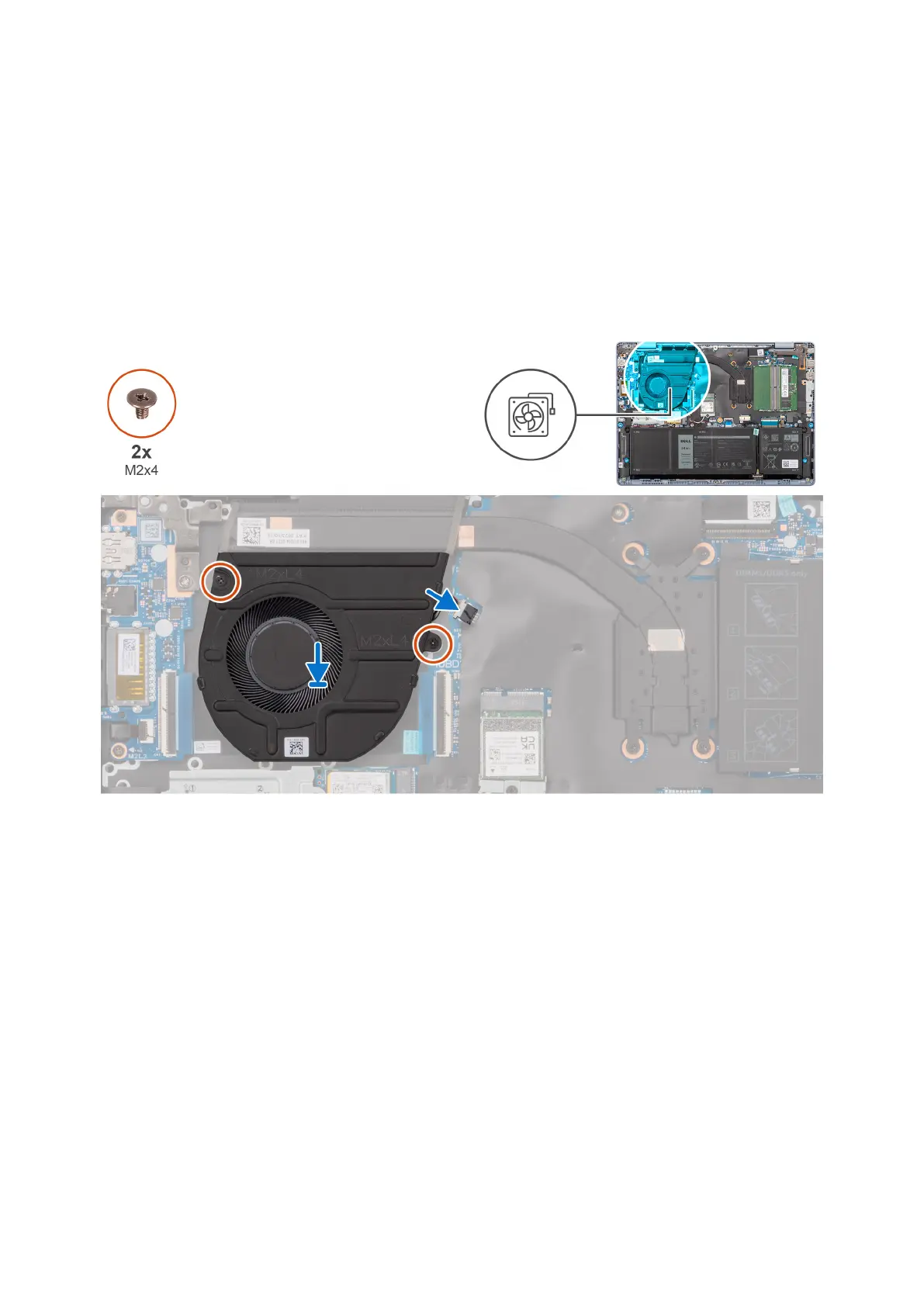

The following image indicates the location of the fan and provides a visual representation of the installation procedure.

Figure 28. Installing the fan

Steps

1. Place the fan on the palm-rest and keyboard assembly.

2. Align the screw holes on the fan with the screw holes on the palm-rest and keyboard assembly.

3. Replace the two screws (M2x4) to secure the fan to the palm-rest and keyboard assembly.

4. Connect the fan cable to the connector (FAN1) on the system board.

Next steps

1. Install the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

2. Follow the procedure in After working inside your computer.

38

Removing and installing Customer Replaceable Units (CRUs)
