Installing the wireless card

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

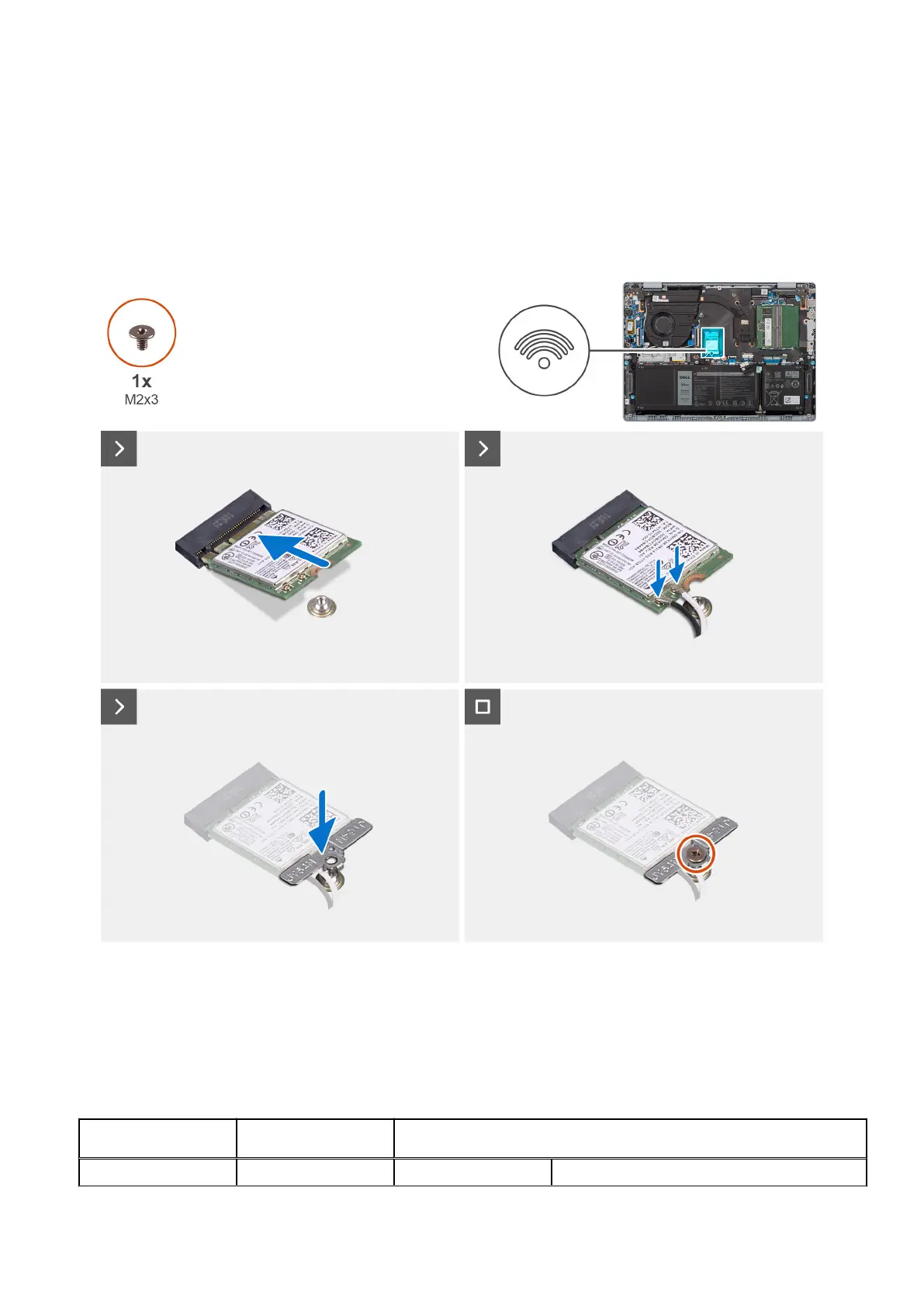

The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.

Figure 26. Installing the wireless card

Steps

1. Align the notch on the wireless card with the tab on the wireless-card slot (WLAN1) on the system board.

2. Slide the wireless card at an angle into the wireless-card slot on the system board.

3. Connect the wireless-antenna cables to the connectors on the wireless card.

Table 3.

Antenna-cable color scheme

Connector on the

wireless card

Antenna-cable color Silkscreen marking

Main White MAIN △ (white triangle)

36 Removing and installing Customer Replaceable Units (CRUs)
