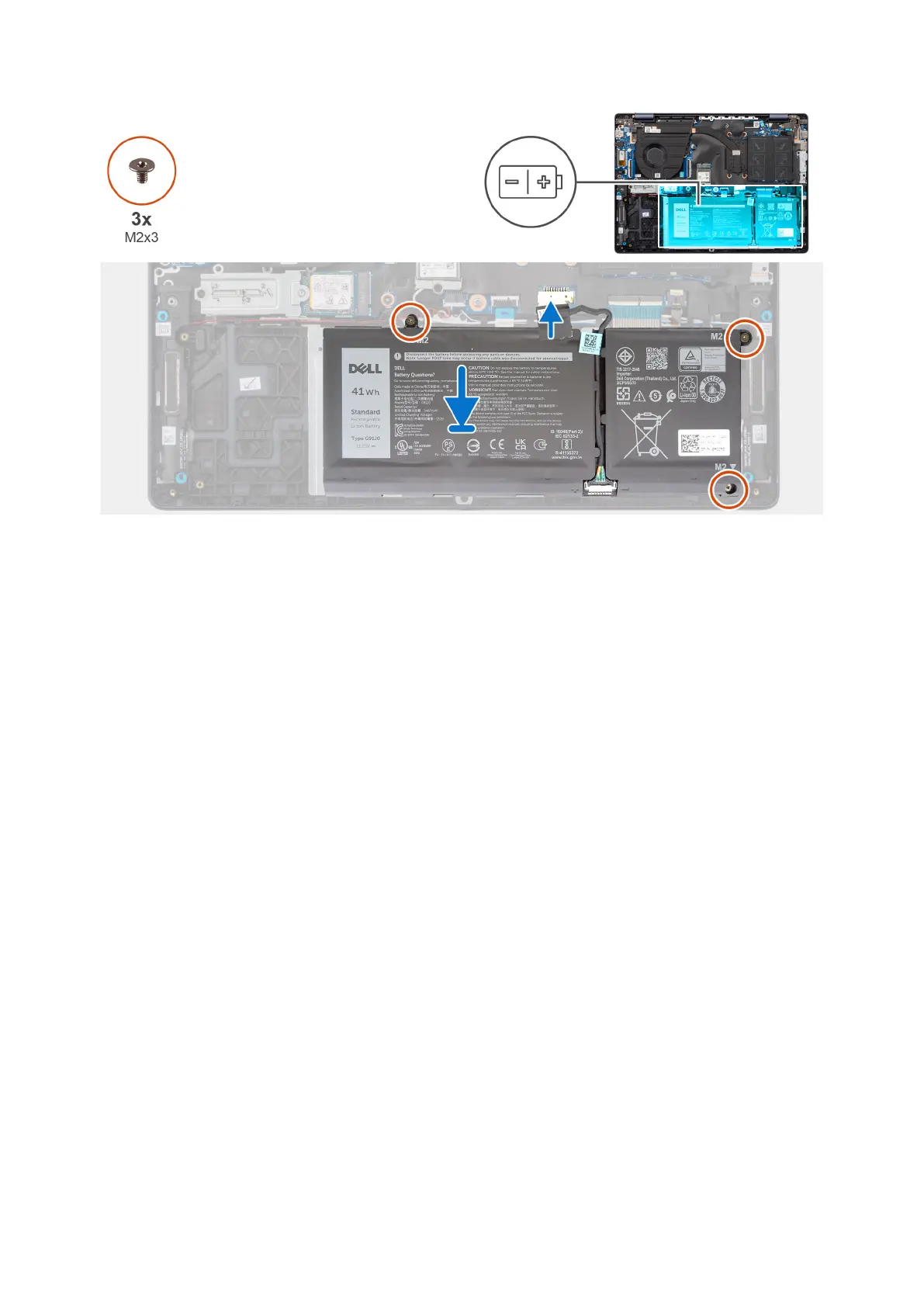

Figure 16. Installing the battery

Steps

1. Place the battery, along with the battery cable, in the slot on the palm-rest and keyboard assembly.

2. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.

3. Replace the three screws (M2x3) to secure the battery to the palm-rest and keyboard assembly.

Next steps

1. Install the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

2. Follow the procedure in After working inside your computer.

Removing the 4-cell battery

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover (plastic chassis) or the base cover (aluminum chassis), whichever is applicable.

About this task

The following image indicates the location of the battery and provides a visual representation of the removal procedure.

26

Removing and installing Customer Replaceable Units (CRUs)
